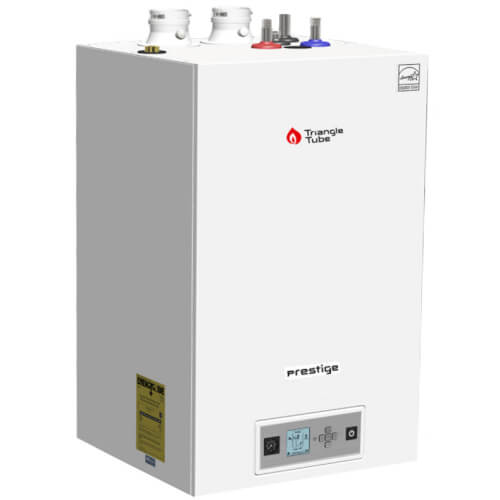

Main product image of Prestige Excellence 110-86,000 BTU Output Condensing Boiler w/ Built-In Indirect Water Heater & TriMax Control (NG/LP)
Magnifying glass
Hover image to zoom

Prestige Excellence 110-86,000 BTU Output Condensing Boiler w/ Built-In Indirect Water Heater & TriMax Control (NG/LP)

SKU:
PEA110
Rating:
(0)
Q&A:
(0)
Prestige Excellence 110-86,000 BTU Output Condensing Boiler w/ Built-In Indirect Water Heater & TriMax Control (NG/LP)
Magnifying glass
Hover image to zoom
PEA110 has been discontinued
Discontinued January 21, 2025
This product was discontinued by the manufacturer.

Product Highlights

–
Product Highlight: Fuel Type
Natural Gas, Propane
Product Highlight: Vent Type
Direct Vent
Product Highlight: System Type
Hydronic (Water)
Product Highlight: Supply Size
1"
Product Highlight: BTU Input
110000 BTUs
Product Highlight: Depth (Inches)
20.8" Depth

Description

–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.

The Triangle Tube brand has been discontinued by the manufacturer as of 11/3/2025. Suggested replacement units will be available on our website and replacement parts will continue to be available as supplies last. If you'd like any further assistance, please contact our customer service team.



Rebates:
You may be eligible for rebates from your local utility company and state. Search your region and state in the link below for information about local rebate programs that may apply to you.
Triangle Tube Rebate Center


Note: Product Title reflects this boiler's IBR Net Output Rating

This item comes standard as Natural Gas, but includes a field convertible LP Conversion Kit

Overview: The Prestige condensing wall mounted boiler features a uniquely designed stainless steel heat exchanger and offers 96% efficiency. The Prestige is capable of a firing rate of 25% of its rated input, meaning fewer cycles, resulting in lower operating costs. The unique TriMax Control makes installation fast and easy with a 60 second easy set-up. The TriMax allows for multiple circulators and temperature zones and has an integrated cascade feature to join mutiple boilers.

In addition to the reliability and economy of a 110 Series Stainless Steel Condensing Boiler the Prestige Excellence Model's 14 gallon in-cabinet Indirect Fired Water Heater is capable of producing 180 gph of domestic hot water.

Boiler Features:

  • Exclusive "Tank-in-Tank"Indirect Fired Water Heater Utilizing Stainless Steel Design for Both Inner & Outer Tanks
  • 439 Stainless Steel Fire Tube Heat Exchanger
  • 95% AFUE
  • Turndown ratio of 5.5:1
  • Low Pressure Drop with Proven Performance
  • 2" to 3" Venting
  • Multiple Venting Termination Options
  • Low NOx - 2012 SCAQMD Certified
  • 5 Year Limited Parts Warranty
  • 10 Year Limited Heat Exchanger Warranty
  • 5 & 10 Year Extended Warranty Options
Featuring ACVMax Control:
  • 60 Second Set-up Based on Previous TriMax Platform
  • Optional LonWorks and BACnet BMS Gateway
  • Two Outdoor Reset Curves / Set Points
  • Multiple Zone Control
  • Multiple Circulator Control

Triangle Tube Boiler Installation & Warranty Information:

We recommend that the installation of all Triangle Tube Boilers be done by a licensed, trained and qualified technician with the proper knowledge and background.

Should you experience an issue during the installation or the initial startup of the unit, please do not contact the manufacturer. You should have the technician that installed the unit contact either us or the manufacturer. Triangle Tube cannot accept any service or warranty calls from anybody but a licensed technician.

Neither we, or Triangle Tube can be held liable for improper installation and operation of any Triangle Tube boiler product purchased from our company. Should a warranty issue arise where parts will need to be replaced, an installation receipt will be required along with your sales receipt. Failure to provide a receipt or invoice may result in the warranty not being honored.

Specs

–
Product Type:

Boiler

Fuel Type:

Natural Gas

Propane

Efficiency:

95%

System Type:

Hydronic (Water)

Vent Type:

Direct Vent

Features:

Wall Mounted

Combo DHW

Condensing

EI/Spark Ignition

Direct Vent

Heating Water Capacity (gal.):

2.3

1st Hour Delivery (Gallons):

210

Domestic Water Capacity:

14 Gallon

Vent Diameter:

3"

Gas Connection:

1/2"

Supply Size:

1"

Return Size:

1"

BTU Input:

110000

DOE Rating:

99000

IBR Rating:

86000

Depth (Inches):

20.8"

Width (Inches):

24.7"

Height (Inches):

37.2"

Weight (lbs):

190 lbs

Application:

Heating
