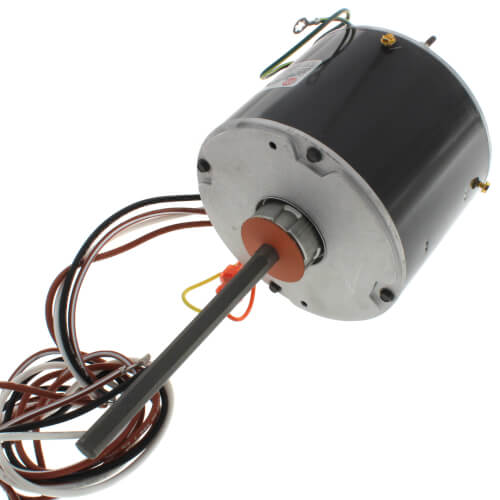

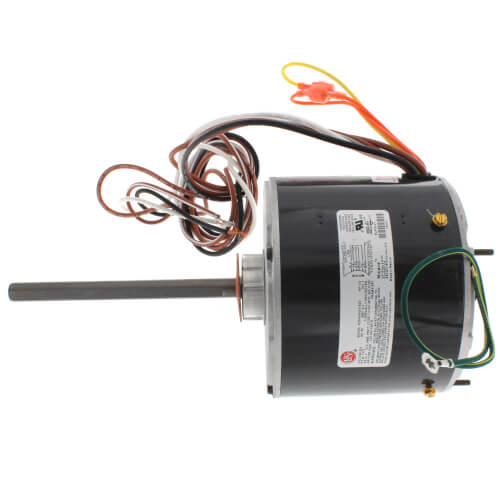

5.6" Mojave PSC Condenser Fan Motor (208-230V, 1/3 HP, 1075 RPM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$127.40 each
In Stock
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075 RPM
Reversible
1/3 HP
7.5 MFD
Description
–
Residential and commercial condensing unit fan motors to meet manufacturer’s requirements.
- Permanent Split Capacitor Condenser Fan
- MOJAVE® Series
- 5.6 Diameter
- Totally Enclosed Air Over (TEAO)
- Stud Mount
- Without Capacitor
- Extreme High Ambient Design
- All Angle Mount
- 1/3 HP
- 1075 RPM
- 2.1 Amp
- 208-230 Volt
- 60 HZ
- 48Y Frame
- Ball Bearing
- Requires 7.5 MFD 370 Volt Run Capacitor (not included)
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Voltage: | 208/230V |
| Horse Power: | 1/3 |
| RPM: | 1075 |
| Phase: | 1 |
| MFD: | 7.5 |
| Enclosure Type: | Totally Enclosed Air Over (TEAO) |
| Rotation: | Reversible |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Great replacement fan motor
I was grateful that they had the motor that matched the specs I needed, a great price, and was delivered the next day. My rooftop AC unit is 19 years old, but financially I am not ready to buy a new system. I was relieved that I was able to fix it myself with this new motor and capacitor.
AG
Las Vegas, NV
1 months ago
Verified Buyer
Was this review helpful to you?
Replaced my Daikin 0131M00430SF
My Daikin DCH120 OE motor had bad bearings (6201-08) in 3 years Its a heat pump so it run 12 months a year. The 1861H is a Mojave high heat motor so better all around. The 1861H leave an extra 1/2 shaft clearance once I put the blade back at the same depth. I was able to set maximum airflow and could still go up 1/2 if I needed. Amp draw is only 0.1 amp higher. Bearings in both motors are 6201-08. A 6201-08 is a special 6201 bearing with a 1/2 ID
John
Tennessee
5 years ago
Was this review helpful to you?
Replaced my Daikin 0131M00430SF
My Daikin DCH120 OE motor had bad bearings (6201) in 3 years Its a heat pump so it run 12 months a year. The 1861H is a Mojave high heat motor so better all around. The 1861H leave an extra 1/2 shaft clearance once I put the blade back at the same depth. I was able to set maximum airflow and could still go up 1/2 if I needed. Amp draw is only 0.1 amp higher.
John
Tennessee
5 years ago
Verified Buyer
Was this review helpful to you?
