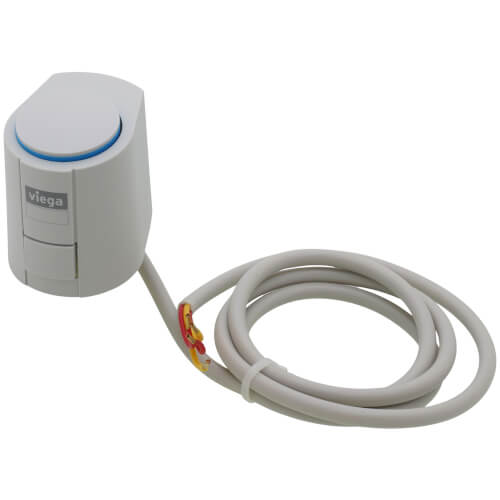

24 VAC Powerhead for Stainless Manifold, 4-Wire
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$64.99 each
In Stock
Get 153 Wed, Dec 6
More Available
Order by today, receive Wednesday
MANUALS (1)
This item replaces: 15064
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
24v
Description
–
Applications
Powerhead part number 15069 is a 4-wire two position actuator which mounts on the return valve of the stainless manifold. A 24 VAC signal actuates the head to open the valve. The position of the valve is normally closed. Upon opening the valve, the integral SPST contacts close. The powerhead may be used on both 1¼" stainless shut off/balancing and stainless shut off/ balancing/flow meter manifolds. Typical applications include circulator control when used with Viega zone control 18060 or 18062, boiler heat call (T-T) or control of auxiliary devices requiring end-switch contact closure.
Specifications
Powerhead part number 15069 is a 4-wire two position actuator which mounts on the return valve of the stainless manifold. A 24 VAC signal actuates the head to open the valve. The position of the valve is normally closed. Upon opening the valve, the integral SPST contacts close. The powerhead may be used on both 1¼" stainless shut off/balancing and stainless shut off/ balancing/flow meter manifolds. Typical applications include circulator control when used with Viega zone control 18060 or 18062, boiler heat call (T-T) or control of auxiliary devices requiring end-switch contact closure.
Specifications
- Voltage: 24VAC
- Max Inrush Current: 300 mA for 2 minutes maximum
- Operating Power: 1W
- Closing/Opening Time: Approximately 3 minutes
- Stroke: 4 mm
- Actuating Force: 21lbs.
- Weight: 5.29 oz.
- Fluid Temperature: 32°F - 212°F
- End Switch: Normally Open
- Micro Switch: 24VAC/0.5A
- Switching Point: 2mm
- Cable Length: 3.28'
- Integrated micro switch with floating contact
- Light gray in color, Viega logo on front
- Normally closed valve position
- Water resistant
- All around function indicator
- 360° installation position
- Snap-on installation
- Valve adapter concept
- Initially-Open function
- May be installed in any position
Specs
–
| Application: | Zoning |
|---|---|
| Voltage: | 24v |
| Stroke: | 4 mm |
| Fluid Temperature Range: | 32°F - 212°F |
| Type: | Accessory |
