Product Highlights
–
3/4"
Crimp
Yes
PEX Crimp Connection
Description
–

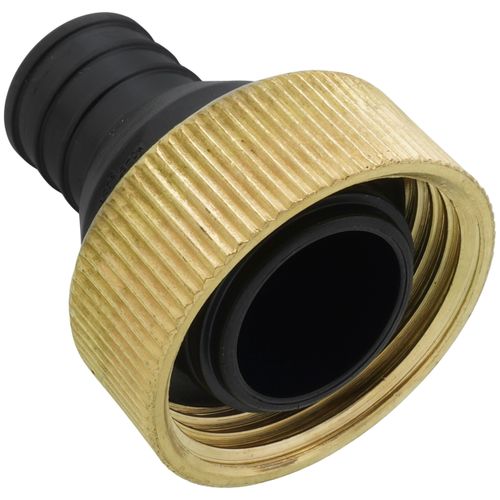

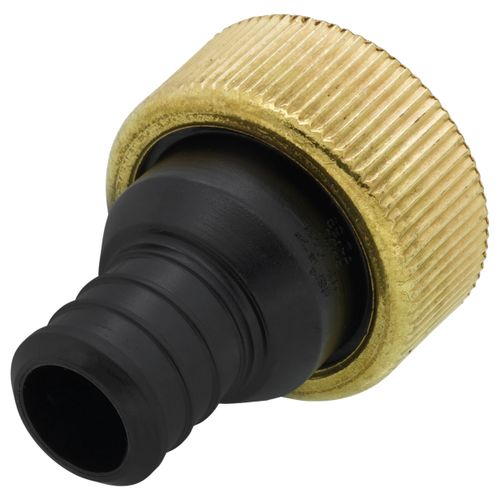

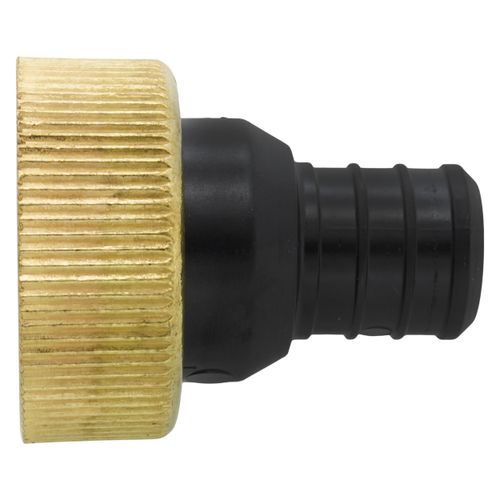

These fittings connect the supply lines to the MANABLOC or MINIBLOC. They allow you to easily connect ViegaPEX tubing to the MANABLOC or MINIBLOC with PolyAlloy PEX Crimp connections (nut included).
Specs
–
| Size: | 3/4" |
|---|---|
| Lead Free: | Yes |
| Connection Type: | PEX Crimp |
| Fitting System Compatibility: | Crimp |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.59 out of 22 reviews
90% would recommend this product
5 star
82%
4 star
9%
3 star
0%
2 star
5%
1 star
5%
Most Liked Positive Review
Solid, Proprietary Design
As another user noted, the threads on the manabloc is not standard so these are required and cannot be subbed. However, for the cost, why would you need to? They work very well. Another user commented that an O ring didn't seal. I did not have that issue. Make sure the nipple is perfectly aligned and HAND tighten the threads until it is tight. Do not use any tools and do not use any tape or glue.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Not impressed
I ordered 4. The o-rings didn't seal on 2 of them.
Showing 1-10 of 22 reviews
would buy again
used with PEX manifold work great
mont
IA
1 years ago
Verified Buyer
Was this review helpful to you?
This product was simple to install & install properly.
I have been incredibly satisfied with the service & customer service of Suppky House, & have every intention of continuing to use them in the future.
Rickie
SW Indiana
1 years ago
Verified Buyer
Was this review helpful to you?
Accurate product descriptions
One of the worst aspects of ordering repair parts online is uncertainty about whether your order will remedy your problem.
SupplyHouse provides detailed and easy to understand descriptions of its products, many with images, dimensions and compositions.
PerryDawg
Macon, Ga
2 years ago
Verified Buyer
Was this review helpful to you?
I will buy this product again
I was able to get Exactly what I needed when I couldn't find it elsewhere.
Mike
Ca
4 years ago
Verified Buyer
Was this review helpful to you?
Solid, Proprietary Design
As another user noted, the threads on the manabloc is not standard so these are required and cannot be subbed. However, for the cost, why would you need to? They work very well. Another user commented that an O ring didn't seal. I did not have that issue. Make sure the nipple is perfectly aligned and HAND tighten the threads until it is tight. Do not use any tools and do not use any tape or glue.
JohnB2022
Durham, NC
4 years ago
Was this review helpful to you?
pex parts
great quality
jb
ohio
4 years ago
Verified Buyer
Was this review helpful to you?
The product has no use except with MANABLOC
The proprietary thread assures that it is useless for any other purpose
John
Philadelphia PA
4 years ago
Verified Buyer
Was this review helpful to you?
Easiest method to transition PEX lines
Step down from 1" Manifold through ports to existing 3/4" copper/PEX lines, made simply by this one-piece device!
ResqDogz
Two Harbors, MN
5 years ago
Verified Buyer
Was this review helpful to you?
I will call these guys for future projects
Tried local big box stores in my area with disappointing results so I called supply house and got everything I needed in a very timely manner also tried local plumbing supplies and just got the run around, supply house was great!
Operator
Louisa
5 years ago
Verified Buyer
Was this review helpful to you?
nice!!!!!!!
This is an excellent product very durable and it finished off my manabloc good quality of material.
k
virginia
6 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
6 Questions6 Questions
Q: It's mentioned that this is to be used for the supply, but can i use it as a port adapter instead? For example connect another manabloc or supply something that needs 3/4" or am I stuck supplying everything with 1\2"?
Asked by Mush 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHello, thanks for writing in. You may connect another Manabloc to the system, however these will only work on the supply ports of the Manabloc. The ports themselves will remain 1/2".
Was this review helpful to you?
Q: Can this be used for the ProPex expander system? I will be using pex-a tubing. If not, what must I use to content the tubing to the MANABLOC?
Asked by Jason 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo you can not use this adapter with the ProPex Expansion tool. For this item you would need to use a crimp tool. You cannot connect to the manablocs using the ProPex system.
Was this review helpful to you?
Q: Does this item include the gasket?
Asked by Danz 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it does.
Was this review helpful to you?
Q: Can I use copper crimp bands or do you need to use stainless steel cinch clamps?
Asked by T diy 13 years ago
Add your answer
Verified Reply- PexSupply StaffIt works with either copper crimp rings or stainless steel clamp rings.
Was this review helpful to you?
Q: Is this typical 1" pipe thread?
Asked by CJfromVA 13 years ago
Add your answer
Verified Reply- PexSupply StaffNo, manabloc supply thread is proprietary and not NPT.
Was this review helpful to you?
Q: do i use this for my main supply line or the branches coming off?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis fitting works with any of the three supply ports on the MANABLOC. You would use it if you need to attach 3/4" PEX using a crimp connection.
Was this review helpful to you?
