Product Highlights
–
3/4"
SDR-11
125 MAX PSI
140°F Max Temp
IPS Connection
4" Length
Description
–
Note: This product should be installed by a licensed gas fitter.
Note: For outdoor, underground use only. Consult your local code official for more information. Requires use of Continental chamfer tool sold separately.

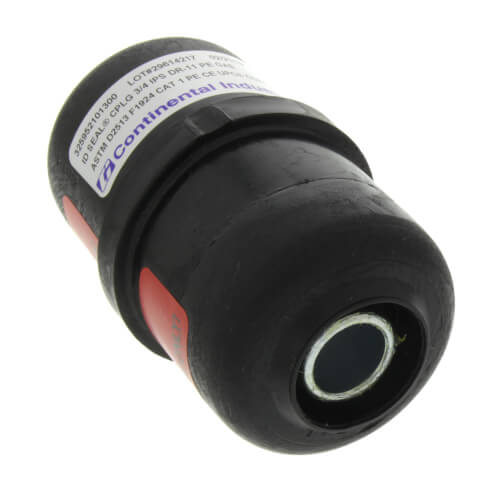

Con-Stab ID Seal Fittings have been sold in the gas, plumbing, and propane markets since 1990. Con-Stab® fittings are IAPMO, CSA, & ICC approved.
Features:
Operating Specifications:
Note: Requires 2888014 Chamfer Tool.
Note: For outdoor, underground use only. Consult your local code official for more information. Requires use of Continental chamfer tool sold separately.
Con-Stab ID Seal Fittings have been sold in the gas, plumbing, and propane markets since 1990. Con-Stab® fittings are IAPMO, CSA, & ICC approved.
Features:
- Continental’s patented "ID Seal"
- For underground PE pipe (ASTM D 2513) only
- Made in the USA
Operating Specifications:
- Temperature: -20° to 140°F
- Pressure: 125 psi
Note: Requires 2888014 Chamfer Tool.
Specs
–
| Connection Type: | IPS |
|---|---|
| Product Type: | Coupling |
| Size: | 3/4" |
| Wall Thickness: | SDR-11 |
| Length (Inches): | 4" |
| Max Pressure (PSI): | 125 |
| Min Temp (F): | -20°F |
| Max Temp (F): | 140°F |
