Non-Potable Water Applications
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description

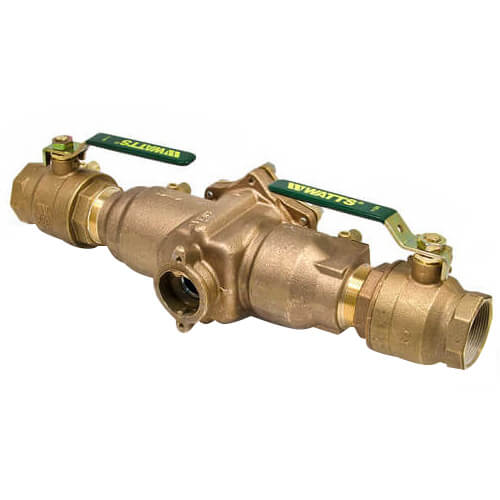

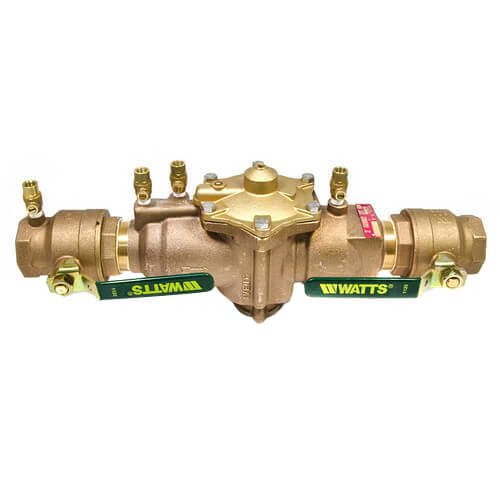

Series 009 Reduced Pressure Zone Assemblies are designed to protect potable water supplies in accordance with national plumbing codes and water authority requirements. This series can be used in a variety of installations, including the prevention of health hazard cross connections in piping systems or for containment at the service line entrance. This series features two in-line, independent check valves, captured springs and replaceable check seats with an intermediate relief valve. Its compact modular design facilitates easy maintenance and assembly access. Sizes 1/4" - 1" (8 - 25mm) shutoffs have tee handles.
Features
- Single access cover and modular check construction for ease of maintenance
- Top entry - all internals immediately accessible
- Captured springs for safe maintenance
- Internal relief valve for reduced installation clearances
- Replaceable seats for economical repair
- Bronze body construction for durability 1/4" - 2" (8-50mm)
- Fused epoxy coated cast iron body 2-1/2" and 3" (65 and 80mm)
- Ball valve test cocks screwdriver slotted 1/4" - 2" (8 - 50mm)
- Large body passages provides low pressure drop
- Compact, space saving design
- No special tools required for servicing.
Specs
| Product Type: | Backflow Preventer |
|---|---|
| Material: | Bronze |
| Size: | 1-1/4" |
| Max Pressure (PSI): | 175 |
| Connection Type: | Female Threaded |
Questions?
Compare Similar Products
You May Also Need
3 Replacement Parts
Need help finding a replacement part?
Product Reviews
Most Liked Positive Review
works great!
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Internal plastic parts need extra care
Great Service
Good Stock
Great Price and In Stock
no
Passed inspection
very happy with purchase
I would buy from this company again
good product, good price
Can't find cheaper place than here
RPZ works great
Product Q&A
17 QuestionsQ: Does this unit have a strainer in the actuall body?
Asked by Jason 14 years ago
Add your answer
009QT does not have strainer – use 777SI Bronze Wye Strainer (Watts, sku 0379081) or (more expensive combined): Use 009QT-S which includes the strainer noted above
No. The strainer is not in the body of the valve, but is a separate piece. They provide the separate wye strainer and a nipple. Install it before the valve.
No strainer is included in the rpz.
Q: do you need air gap with 1" and what is part # and price
Asked by regaljim 14 years ago
Add your answer
Verified Reply- PexSupply StaffIt depends on your local codes, but you do need an air gap if you are going to a drain.
No but you need proper drainage if used inside. Sent via BlackBerry from T-Mobile
Check local code if a pipe and air gap are required (usually when piped to a drain) . Normally, the minimum height below the outlet of the rpz is 12".
Q: Does the unit have to be installed horizontally or vertically?
Asked by cw 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis 3/4" unit is only approved for horizontal installations. Please refer to the link below for more information. http://media2.wattswater.com/ASSE-WBF-00010.pdf
I installed mine vertically and it passed inspection with my Water Company. I don't know whether it can be installed horizontally
It can be installed either way – read the detailed instructions. We prefer horizontal if space allows.
Ideally, this valve would be installed right side up. This valve is designed to be installed with the drain hole (unthreaded, open hole in center of unit) facing down. This puts the two valves (green vinyl-coated butterfly handles) facing forward. The unit could be installed in ANY position and still function perfectly; but any moisture venting from the unit would run down or over the valve, which isn’t as elegant, functionally, as having it drop away from the unit. I have had this unit installed in my own radiant heating system for well over a year and the only moisture vented was about ¼ cup during the initial system start-up period. One caveat: do not install the unit in a way such that water would drip from the vent onto pumps, boiler or any electrical equipment.
Install horizontally with 12" clearance below.
I don't know for certain. But I would bet this needs to be horizontal. If it opens up and drains, you will want it to vent from the bottom into a drain line. That will be much less mess if installed horizontally.
Horizontal Only!
Q: temperature range, max. allowed??
Asked by Mark the Plumber 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis unit is rated for water temperatures up to 180°F.
I am unsure as to what the reference is however I am going to assume this is for the temperature range of a water heater. 125 degrees is the proper Max allowed temperature to prevent scald burns.
Q: the problem that i have is that my valve is leaking an I do not know what to do to stop model 009 3/4"
Asked by Bill 15 years ago
Add your answer
Verified Reply- PexSupply StaffIt sounds to us as if a gasket inside the unit may need to be changed.
Q: Does this backflow preventer need a wye strainer?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffIt is always a good idea to install a wye strainer. Please consult your local codes for requirements.
Q: Does this product come with the air gap? Or does that need to be purchased separately?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffNo, this does not come w/ an air gap. Item 0881399 will be the air gap for your 1/2 009 QT.
