Description

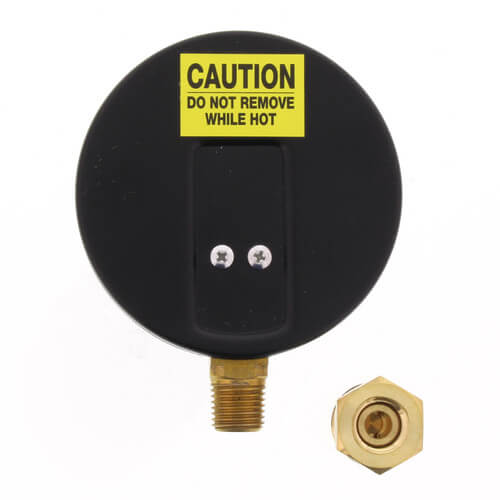

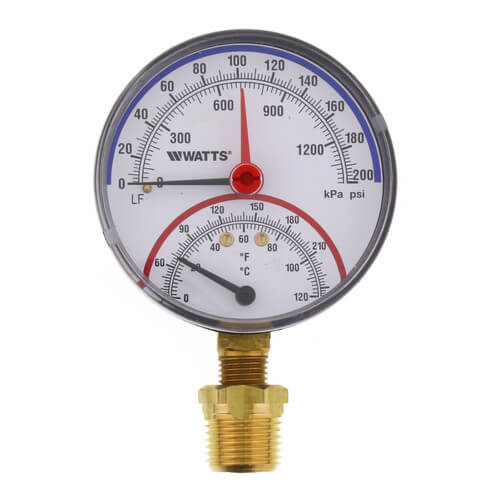

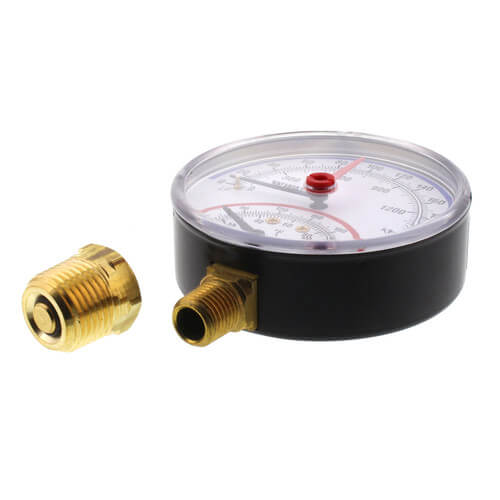

Series LFDPTG-1 Combination Pressure and Temperature Gauges are used in commercial, residential, and institutional HVAC applications. These gauges are bottom-entry type models with black enamel steel cases, Kostil Polymer windows, 1/2" (15mm) NPT connections, copper alloy Bourdon tube pressure elements, and bimetal spiral springs. Accuracy is ASME, Type B. The Series LFDPTG-1 gauges are available in various pressure rating scales. The dual pressure scale features PSI and kPa measurements. The dual temperature scale features °F and °C measurements.

Features
  • Black enamel steel case
  • Kostil polymer window
  • Copper alloy Bourdon pressure element
  • Bimetal spiral spring temperature element
  • Tin alloy welding
  • 1/2" (15 mm) NPT connection
  • ASME Type "B" accuracy
Hide Description
Manuals (1)
Specs
Dial Size:

3"

Max Pressure (PSI):

200

Max Temp (F):

248°F

Min Temp (F):

32°F

Material:

Steel Case

Copper

Measures:

Fahrenheit

Celsius

Type:

Dry

Measures:

Pressure

Lead Free:

Yes

Mount:

Bottom

×
