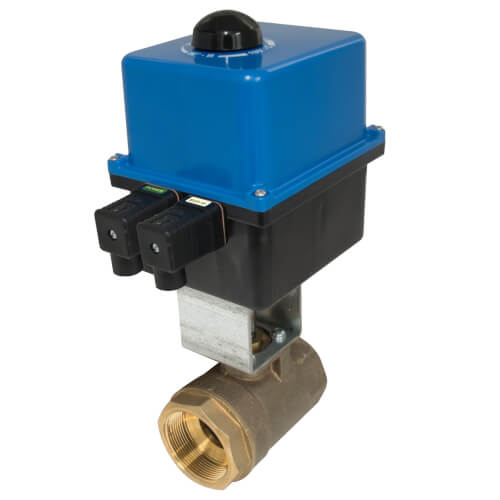

1" LFEMVII-6400SS 2 Piece Electric Motor Valve, Standard Port, Lead Free (115V)

The 1 inch electric motor valve is used in commercial HVAC and light industrial systems. It is ideal for applications such as a zone control valve for space heating with hot water or steam and air conditioning with chilled water. It's remotely operated for controlling the flow of steam, water, or air. Can be used as a drain or a blown down valve to eliminate water from compressed air lines and systems. It features a 2 pc standard port lead free copper silicon alloy motorized ball valve that consist of an electrically actuated motor 115 VAC with 10 second cycle time, 316 stainless steel ball, bottom loaded blowout proof stem, standard position indicator, adjustable PTFE packing, Durafill® PTFE seals and bubble-tight shutoff. It has a manual override standard, comes completely assembled and mountable in any position (horizontal for steam applications). Pressure rating is 600 psi WOG (non-shock) and 100 psi (7 bar) WSP. Maximum ambient temperature is 150 F (66 C).

Features:

• Hole in stem slot of each ball valve to equalize pressure between the body cavity and the flow stream
• Adjustable cam provides the capability of properly aligning the ball in both the open and closed position using a single, simple adjustment
• 316 Stainless steel ball and stem
• Power consumption is 115 voltage with a 10 second cycle time
