Description

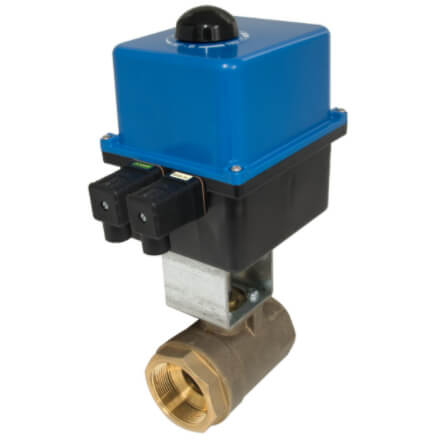

The 1 1/4 inch electric motor valve is used in commercial HVAC and light industrial systems. It is ideal for applications such as a zone control valve for space heating with hot water or steam and air conditioning with chilled water. It is remotely operated for controlling the process of liquids and gases (steam, water, or air) can be used as a drain or a blown down valve to eliminate water from compressed air lines and systems. It features a 2 piece standard port bronze motorized ball valve that consist of an electrically actuated motor 115 VAC with an 10 second cycle time, 316 stainless steel ball and bottom loaded blowout proof stem, standard position indicator, adjustable PTFE packing, Durafill® PTFE seals and bubble-tight shutoff. It has a manual override standard, comes completely assembled and is mountable in any position (horizontal for steam applications). The pressure rating is 600 psi WOG (non-shock) and 100 psi (7 bar) WSP. The maximum ambient temperature is 150 F (66 C).

Features:
  • 316 Stainless steel ball and stem
  • Adjustable cam provides the capability of properly aligning the ball in both the open and closed position using a single, simple adjustment
  • Power consumption is 115 voltage with a 10 second cycle time
  • Hole in stem slot of each ball valve to equalize pressure between the body cavity and the flow stream
Read more
Specs
Size:
1-1/4"
Lead Free:
Yes
Max Temp (F):
150°F
Material:
Stainless Steel
Valve Construction:
2 piece
Voltage:
115v
×
