Description
Note: This model is for commercial applications

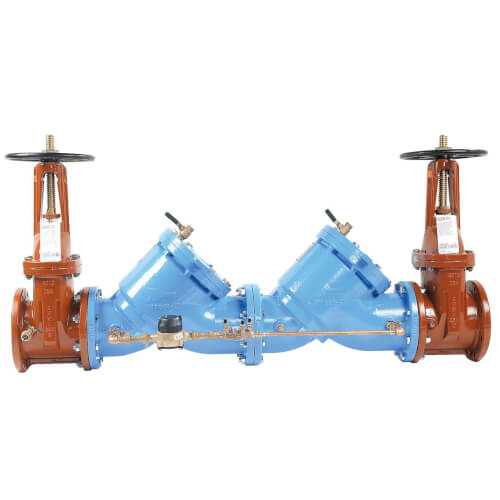

Series 709DCDA Double Check Detector Assemblies prevent backflow of non-health hazard fire protection system substances from being pumped or siphoned into the potable water supply. It incorporates a meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. Its compact epoxy coated cast iron unibody and modular check design facilitate simple and easy installation and maintenance. Maximum Working Pressure: 175psi (12.06 bar).
Read more
Specs
Size:
3"
Application:
Plumbing
Material:
Cast Iron
Max Pressure (PSI):
175
Max Temp (F):
110°F
Temperature Range (F):
33°F to 110°F
Min Temp (F):
33°F
Max Temp (F):
140°F
Height:
22-3/8"
Length (Inches):
40"
Features:
UL/FM outside stem and yoke resilient seated gate valves
Cubic Feet Per Minute Meter
×
