0555109 has been discontinued
Discontinued February 18, 2020
This product was discontinued by the manufacturer.
MANUALS (1)
Direct Replacement:

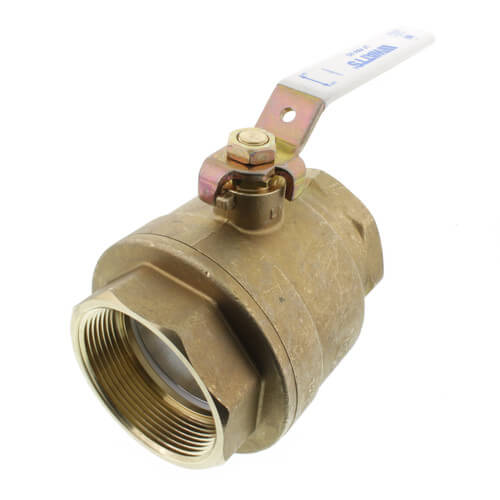

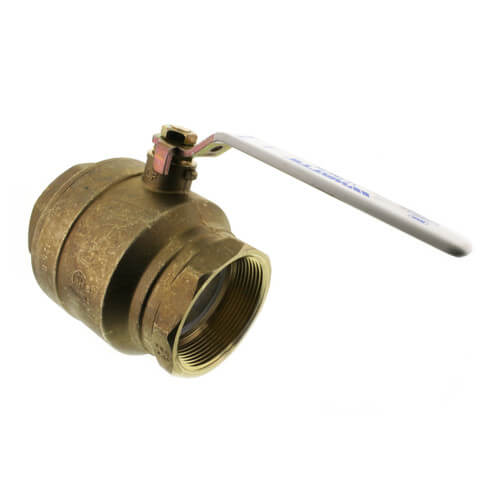

LFFBV-3C-M1, 3" Full Port Threaded Ball Valve, Lead Free
Product Highlights
–
3"
FNPT x FNPT Connection
Brass
Lever
Yes
Full Port
Description
–
Series LFFBV-3C 2-piece, full port, Lead Free* ball valves are used in
commercial and industrial applications for a full range of liquids and gases.
They feature a bottom-loaded blowout proof stem, virgin PTFE seats,
thrust washer, and adjustable stem packing gland, stem packing nut,
chrome plated Lead Free* brass ball, copper silicon alloy brass adapter,
and steel handle. The Series LFFBV-3C, LFFBVS-3C features Lead Free*
construction to comply with Lead Free* installation requirements.
Features
Features
- Lead Free forged copper silicon alloy body and adapter
- Certified to NSF/ANSI standard 61/8
- CSA approved threaded valves only , 1/4" to 3" (15 - 80mm)
- UL/FM approved threaded valves 1/2" to 2" (15 - 50mm)
- Fluorocarbon elastomer stem O-ring prevents stem leaks
- Adjustable stem packing gland
- PTFE stem packing seal, thrust washer, and seats
- Bottom loaded blowout proof stem
- Machined chrome plated Lead Free* brass ball
- Valves comply to MSS-SP-110 standard
Specs
–
| Size: | 3" |
|---|---|
| WOG: | 600 |
| Max Pressure (PSI): | 175 |
| Material: | Brass |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Handle Style: | Lever |
| Thread Type: | Female |
| Valve Construction: | 2 piece |
| Features: | Standard |
| Lead Free: | Yes |
| Port Type: | Full Port |
