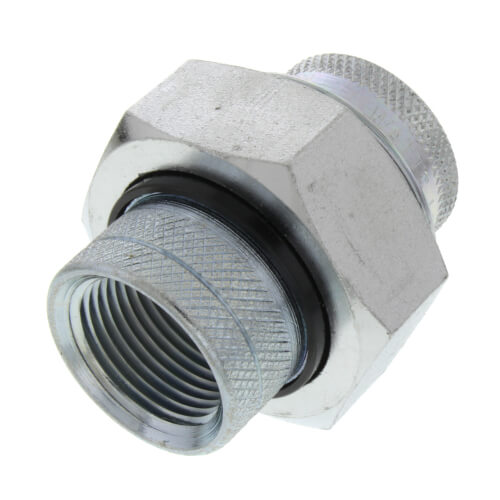

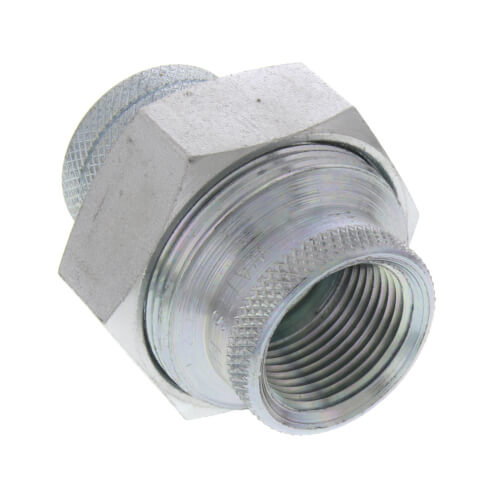

Series LF3004 Lead Free* Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to female iron pipe thread (galvanized) connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3004 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. Maximum Pressure: 250psi.
Female Lead Free iron pipe thread to female Lead Free iron pipe thread
Designed and manufactured to the highest quality standards
Individually factory certified to withstand a minimum of 600
volts on a dry line with no flashover
Rated to 180°F (82°C) at 250psi (17.2 bar)
