3/4" Bronze RPZ (009M3QTFS)

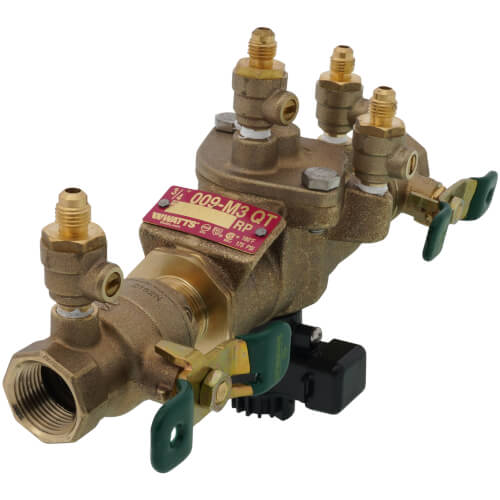

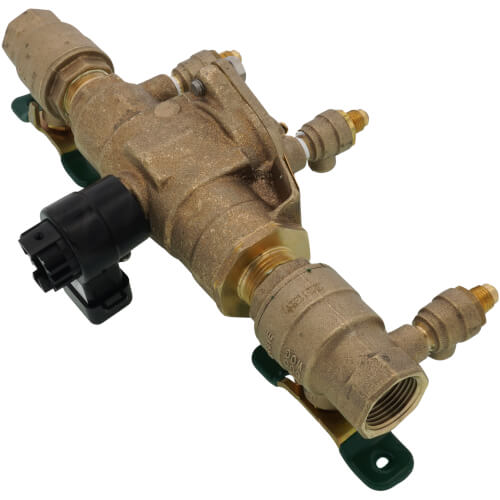

This 3/4 inch reduced pressure zone assembly backflow preventer helps prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body, NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements. This backflow assembly contains an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Add-on sensor connection kits are available for both BMS and cellular communications..

Specifications

• Alert features available with add-on sensor connection kit
• Single access cover and modular check construction for the ease of maintenance
• NPT inlet and outlet connections
• Bronze body construction for durability
• Quarter turn full port resilient seated ball valve shutoffs
• Internal relief valve for reduced installation clearances
• Test cocks are screwdriver slotted
• Replaceable seats for an economical repair
