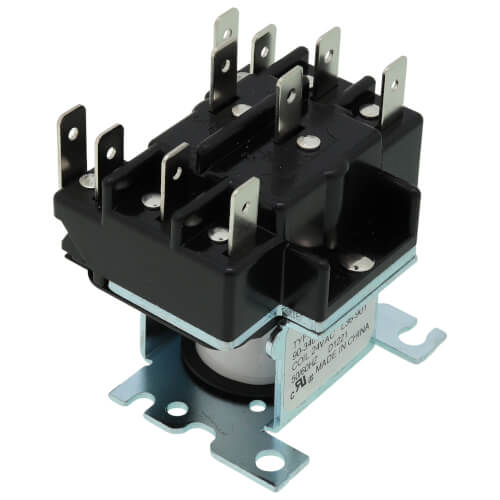

Plug In Relay w/ 24V Holding Coil, 510-350-223
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$45.20 each
In Stock
Get 6 Tue, Jul 7
Order by today, receive Tuesday
'/%3E%3C/svg%3E){kind=small}
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
24v Holding Coil
Description
–
Weil McLain plug in relay with 24v holding coil, for boiler models:
- CGA
- CGx
- CG
- AHE
- EG
- EGH
- HE
- PFG
- VHE
Specs
–
| Type: | DPST |
|---|---|
| Voltage: | 24v Holding Coil |
| Used With: | AHE Boilers CG Boilers CGa Boilers CGx Boilers EG Boilers EGH Boilers HE Boilers PFG Boilers VHE Boilers |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.92 out of 48 reviews
100% would recommend this product
5 star
96%
4 star
2%
3 star
0%
2 star
2%
1 star
0%
Customer Images
Most Liked Positive Review
Excellent part and service
Purchased the product as my older (1985) unsupported hot water boiler with baseboard heat was acting up. The choice was call a repairman, or do it yourself. As a handy person around the home this is a job I can tackle and know enough not to get myself into too much trouble. So, the cost benefit led me to try fixing the problem first. There are only so many components in the boiler system, so I elected to purchase a couple items to replace. The prices can be better elsewhere by a few dollars, but everything can be found here, an easy to use website and great customer service. Well worth the time and effort to go through one place that has everything you need...for a FRACTION of the cost of a repairman to poke around and replace one component. Very happy with the company and will be back for my needs.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Works but not correct
This is what was sent but is not correct there is an additional set of connection tabs for additional function that I do not have or need. It plugged in ok and works but isn't correct. Further searching after receiving this I found the correct one @ approx 1/3 Rd the price.
Showing 1-10 of 48 reviews
yes
the part i perfect for my boiler
Lennyc
Milford PA
4 months ago
Verified Buyer
Was this review helpful to you?
Working great in my Weil McLain CG boiler
My boiler is 29 years old. Occasionally, it wasn't shutting off when though there was no call for heat. I had to tap the relay to get it to shut off.
Removing the old part was a bit tricky, I had to very gently pry it out of the plastic socket with a screwdriver. Once the old one was out, I was able to easily insert the new one.
This part is slightly different from the one I removed. It has two additional blades on the back. I was concerned about this, but apparently it's not an issue.
Mr FixIt
Lewiston, MI
1 years ago
Verified Buyer
Was this review helpful to you?
Help! Furnace relay replacement needed !!!
An old relay in my furnace had started making a non stop buzzing noise. Using the user manual for my furnace I identified part number and placed an order for replacement. Shipping was super fast as I received my item the very next day after placing my order.

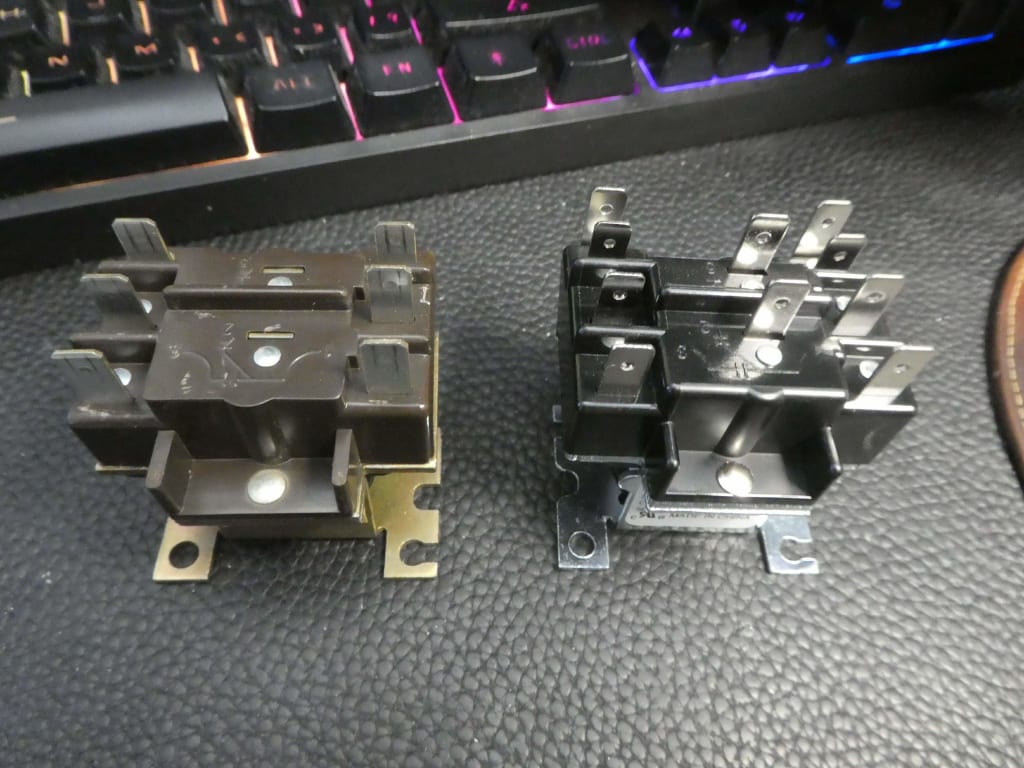

When I received my order I saw that the relay's pin out was different from my old relay's pin out (see picture). I visited a local HVAC parts store and spoke with a tech there and asked if he would have any reservations in using the part despite the difference in the pin outs. He said ''no, not at all'' in answer to my question.
So based on that conversation I decided to give the new relay a try and was not disappointed. The house is now nice and toasty.
Not-A-Professional
New York, New York
2 years ago
Verified Buyer
Was this review helpful to you?
Resolvec the boilers cycling issues….Now continually fires
Easy fix
Kirk
Bloomfield Hills
2 years ago
Verified Buyer
Was this review helpful to you?
FOR SURE
i have an old W M boiler. This coil brings it back to life again.
FITTER
Palmyra Illinois
4 years ago
Verified Buyer
Was this review helpful to you?
Great Customer Service
Joe was efficient, polite, and professional. Thank You!
Wilfredo
New York
4 years ago
Verified Buyer
Was this review helpful to you?
Super fast, Awesome, and Thank you.
While the McClain CGX4PIDN boiler ran and ran. I researched found the problem. Ordered the part. My board is a six pin. Found out being a dual it works just fine. Supply house was super fast at shipping and easy purchase. Thank you
Shea
Lansing, MI
4 years ago
Verified Buyer
Was this review helpful to you?
Second Time Ordering
The product works fine. However, this is the second time I've had to purchase this item. The first relay only lasted only 14 months, 2 months past the warranty expiration. I ordered an OEM part in the hopes that the quality would be good. It seems these relays are all made in China and the quality isn't quite there any more.
Jim
Menominee, MI
4 years ago
Verified Buyer
Was this review helpful to you?
BY ALL MEANS YES
Very well satisfied with it and your quick service. thanks Have a great Holiday.
fitter
palmyra il
5 years ago
Verified Buyer
Was this review helpful to you?
Works but not correct
This is what was sent but is not correct there is an additional set of connection tabs for additional function that I do not have or need. It plugged in ok and works but isn't correct. Further searching after receiving this I found the correct one @ approx 1/3 Rd the price.
Mike
Mi
5 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: this relay has two more blades on it than the one in my boiler will this one work
Asked by cold 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it will. The original relay was single pole, this replacement is double. You can disregard the extra connections, it will function the same.
Was this review helpful to you?
Q: Could this relay be adapted to work in place of an old "GE 3ARR4 A32" which has screw terminals?
Asked by Charles 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffWe do not carry the GE brand I would not know if the item is compatible or not
