Description

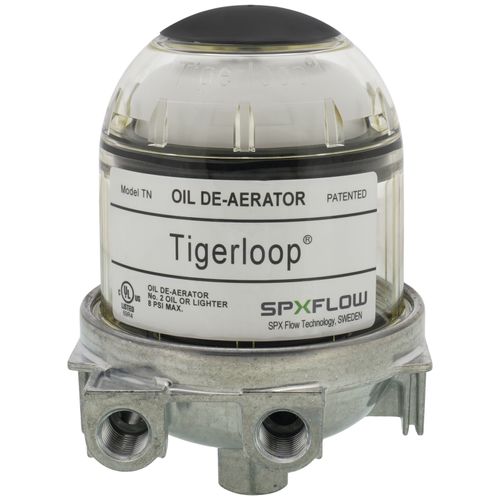

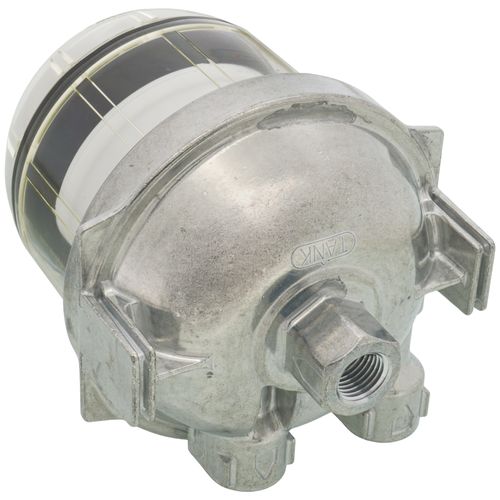

Tigerloop oil de-aerator, model TN, UL Listed

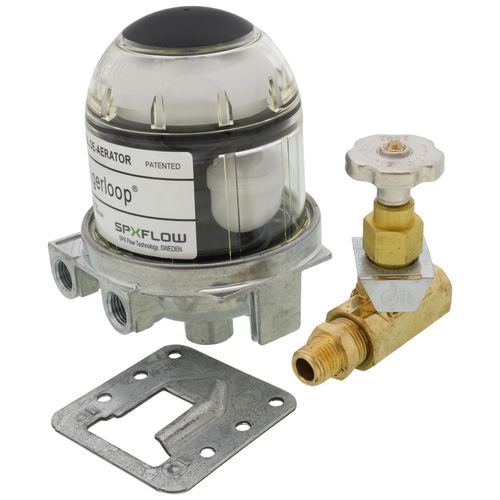

  • Includes Firomatic fusible valve
Features
  • Safely handles suction line air leaks
  • Removes air entrained in oil during transporting and delivery
  • Reduces running vacuum for clear, foam-free oil at the nozzle
  • Eliminates potential leak hazard by eliminating the return line
  • Preheats the oil for cleaner combustion
  • Extends filter element life
Specifications
  • Max. nozzle capacity: 20 GPH
  • Max. return oil pumped into Tigerloop: 30 gph
  • Max. oil flow: 50 gph
  • Operating Temperature: 20° - 105°F
  • Max. Ambient Temperature: 105°F
  • Max. operating pressure in feed line: 8 PSI
  • Connections: 1/4"-NPT (F)
  • Fuel type: Nos. 1 & 2, B5 BioHeat Biofuel
Read more
Manuals (2)
Specs
Product Type:
Oil Control
Connection Size:
1/4"
Connection Type:
NPTF
×
