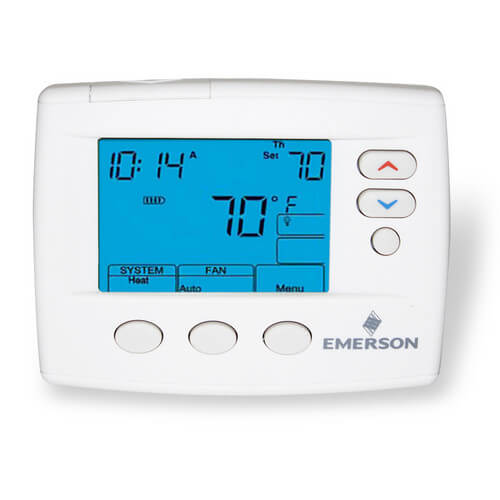

80 Series Programmable, 1H/1C, Blue Digital Thermostat
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (5)
Product Highlights
Description
1F80-0471
Single Stage, 5/1/1 Day, 5/2 Day Programmable or Non-Programmable Thermostat, 24 Volt or Millivolt system, 3-wire zone
Dimensions: 4.5"W x 3 .5"H x 1.1"D
Display: Large LCD with improved contrast for easier reading Lighted display for easier low-light viewing
Specs
| Amperage: | 1.5 |
|---|---|
| Application: | Heat Pump Single-Stage (Heat/Cool) |
| Stages: | 1 Heat/1 Cool |
| Programmability: | 5-1-1 Day Programmable |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Large Display Auto Changeover |
| Power Method: | Hardwired Battery |
| Changeover: | Auto |
| Temperature Range (F): | 45°F - 90°F |
| Voltage: | 24V Low voltage |
| Wattage: | 1.5 to 45 |
| Wiring: | Rc G Rh Y C B W O |
| Color: | White |
| Height (Inches): | 3.5" |
| Width (Inches): | 4-1/2" |
| Depth (Inches): | 1-1/10" |
| Wireless: | No |
| Humidity Control: | No |
Questions?
Compare Similar Products
Single-Stage (Heat/Cool)
Programmable
Product Reviews
Most Liked Positive Review
Exactly what I needed!
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Good thermostat, terrible technical supp
Help!!??
Works as advertised
Works Out Of The Box
An excellent thermostat!!
Exactly what I needed!
Local supplier in Akron will not sell this product.
perfect out of the box
IT WORKED!
excellent as usual
Exactly what I ordered
Product Q&A
17 QuestionsQ: can i use this thermostat to replace the 1f86-0344 thermostat
Asked by slownez 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe suggested upgrade for the 1F86-344 would be sku 1F97-1277.
Yes you can use the 80 series to upgrade from your 1f86-0344.
Q: Want to replace white Rogers model number1F73 multistageheat pump non/ programable 20 /30 vac50/60Hz1.0 amp max with a 7 day programable thermostat please tSend me recommendations
Asked by Bernie 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffthat doesnt have multiple stages. you can call us to find a specific replacement stat.
Q: I have a IF81-51 thermosta, can this be replaced with the 80 series programmable, 1H/1C, Blue Digital thermostat? Also, I have a gas furnace and is this compatible?
Asked by Patsy 12 years ago
Add your answer
Yes you can replace the 1F81-51 with this 80 series. Both units work for gas furnaces and Air conditioning. I also replaced my 1F81-51 with this unit.
Q: How to reset all programs
Asked by monty 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou can reset the thermostat by removing the wires from terminals R and C (do not short them together) and removing batteries for 2 minutes. After resetting the thermostat, replace the wires and batteries. To reset the programming, clock and configuration settings, press the up and down buttons and the FAN button simultaneously. The thermostat should go blank and then all segments will be displayed momentarily. You can find all of this information in the Installation Manual under the Manuals tab on the product page at our website.
You can reset the programing (default settings) by first going to the menu mode. It will say menu and where the FAN button is located, it will say "Run". Press the Up arrow, the Down arrow, and the Fan button (Run) simultaneously until all the LCD displays are visible. You have just reset the programming. The instructions left out the part about being in the menu mode.
Q: Where can I get an owner's manual?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou can access manuals for this thermostat under the 'Manuals' tab on our product page or on White Rodgers' website.
Q: Can i replace 1f90-51 with 1f80-0471? I know its a 80 series replacing a 90 series. Thank you
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffWhite Rodgers recommends 1F97-1277 as the replacement, but 1F80-0471 is a also a single-stage, 2-wire thermostat. We see no reason why it wouldn't also work.
Q: Product description for "Application" of this model is: "Heat pump". Does this mean that I cannot use this model to replace my old White Rogers "1F97W-71" on my single stage AC/gas Furnace?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe manufacturer recommends 1F97-1277 as the replacement for the obsolete 1F97W-71 thermostat.
Q: I'm looking to replace my current White-Rodgers IF80-261. I've been told that this model (IF80-0471) is compatable or transferrable with the current hard wires for installation. Is this true? Please advise.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply Staff1F80-0471 is the manufacturer's suggested replacement for 1F80-261. The wiring should be similar, but we could not say for sure whether it's exactly the same.
Q: Would this go with an automag zone valve system that is 3 wire for a oil boiler hot water heating system?
Asked by Engineer 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe thermostat would not be wired directly to the zone valves. You would need to wire it to a zone valve controller.
Q: I want the backlight to stay on all the time. How does the unit need to be wired in order to do this?
Asked by John 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis is possible if the 'C' terminal is powered. Please refer to item #10 on page 5 of the following Installation Manual for more information: http://s3.pexsupply.com/manuals/1249544587127/White_Rodgers_1F80-0471_Instructions.pdf
