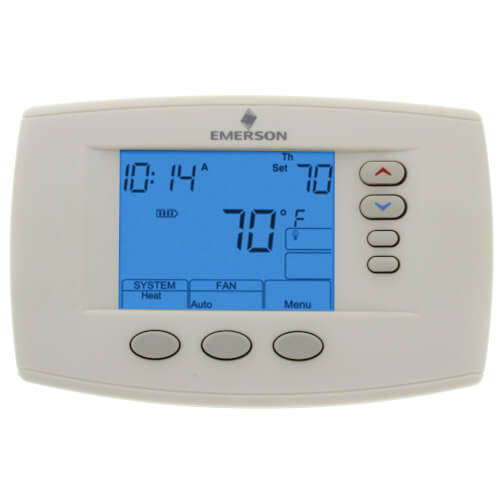

Blue Universal Multi-Stage (2H/2C) Or Heat Pump(4H/2C) 7-Day programmable Digital Thermostat, Backlit Display, 24 Volts
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$118.89 each
In Stock
Get 23 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
This item replaces: 1F97-0671
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Programmable, 7 Day
Low voltage, 24V
2 Heat/2 Cool, 4 Heat/2 Cool Heat Pump
Horizontal
Hardwired, Battery, Power Stealing
2.5 Amps
Description
–
Features
- Blue Universal Multi-Stage (2H/2C) Or Heat Pump(4H/2C) 7-Day programmable Digital Thermostat
- Backlit Display
- 24 Volts
- 4 Programs
- Automatic Changeover
- Programmable Fan
- Energy Management Recovery
- Remote Sense Option
- Keypad Lockout
- Profile-Horizontal
- Tripower (Hardwire, Battery, Battery W/Power Stealing Assist)
- Temperature Range: 45-99° F
- Terminals-RC,RH,C,G,Y,Y2,W/E,W2,W3,6,O/B,L,+,S,-
Specs
–
| Amperage: | 2.5 |
|---|---|
| Application: | Heat Pump Multi-Stage (Heat/Cool) |
| Stages: | 2 Heat/2 Cool 4 Heat/2 Cool Heat Pump |
| Programmability: | Programmable 7 Day |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Works with Sensor Password Lockout Large Display Fan Control Auto Changeover |
| Power Method: | Hardwired Battery Power Stealing |
| Changeover: | Auto |
| Temperature Range (F): | 45°F - 99°F |
| Voltage: | Low voltage 24V |
| Wattage: | 30 to 75 |
| Wiring: | W2 RH O/B L G Y2 6 C Y - |
| Color: | White |
| Humidity Control: | No |
| Wireless: | No |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Amperage
Application
Programmability
User Interface
Mount
CURRENT ITEM
2.5
Heat Pump
Multi-Stage (Heat/Cool)
Multi-Stage (Heat/Cool)
Programmable
7 Day
7 Day
Push Button
Horizontal
You May Also Need
Product Reviews
4.67 out of 6 reviews
83% would recommend this product
5 star
83%
4 star
0%
3 star
17%
2 star
0%
1 star
0%
Showing 1-6 of 6 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
No audible feedback
I replace an exact model after ten years of summer and winter use. Buttons weren't making good contacts after so many years of constant up and down buttons being used all the time. My review is not the best but this same model doesn't have the beeper even though the configuration booklet says it does. I tried 3 units from you and none of them has the beeper. 3 of your techs couldn't even program it with an operable beeper. A person with a sight loss has to be able to hear the beeper. I will not be able to use this model any longer if the manufacturer can't fix the beeper or at least remove it from the functions so customers don't have to waste their time thinking that all your units are defective. At least have #13 removed from the configuration pages.
Dale
Ca.
6 months ago
Verified Buyer
Was this review helpful to you?
Great customer service
This model was installed in my house initially in 1995 and has just now started to not make good contact with the up and down buttons. This model is programmable to set auto on and off's 7 days per week at different times during the day. We are retired so we don't use the programs. We just increase heat or turn it down as needed. We use it the same way in Cooling Mode hence the buttons wearing down after 30 years of use. Customer service has answered all my questions concerning installation or referred me to manufacturer Techs to answer technical questions.
Elliott
Northern California
8 months ago
Verified Buyer
Was this review helpful to you?
Common sense design
Excellent service, shipping and product. Work's great. Thanks
Dan
Ia.
6 years ago
Verified Buyer
Was this review helpful to you?
White Rodgers Thermostat
This was a replacement product for an earlier discontinued White Rodgers product. I love it and the functionality of it. Still learning about its operation but I welcome that cause its extremely effecient. Great!
Mack-attack
FL
8 years ago
Verified Buyer
Was this review helpful to you?
NICE UNIT
Thermostat works well, a lot of features and easy to use.
SteveB
Powell, Ohio
11 years ago
Verified Buyer
Was this review helpful to you?
Would use this item again
We use these in our controls packages. Good product
inside girl
Grand rapids, MI
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: dimensions on the back?
Asked by veldik 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe dimensions of the unit are 4.2" H x 6.4" W x 1.7" D.
