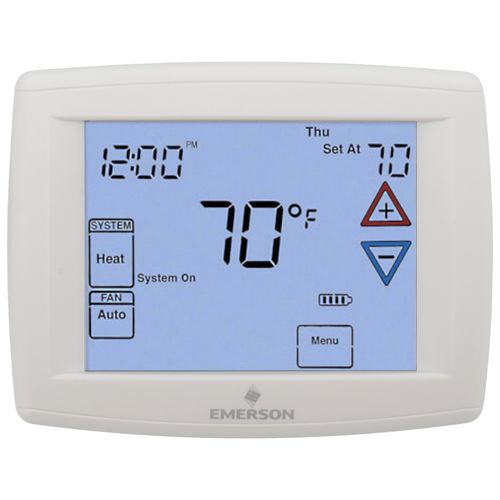

90 Series Programmable, 1H/1C, Blue Digital Touchscreen Thermostat
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
Features:
- 12-Square Inch Blue Touchscreen Display
- Blue, lighted display for easier low-light viewing
- 7-Day or 5+1+1 Day Programmable or Non-Programmable
- Programmable Fan and Remote Sense Capable
- Patented pre-programmed schedule simplifies time and temperature programming
- Selectable Energy Management Recovery
- Permanent program retention during power loss
- Compressor lockout protection
- For 24 VAC or Millivolt Systems
- 3-Wire Zone Valve
- Dual Powered - Hardwired or Battery Powered
Specs
| Amperage: | 2.5 |
|---|---|
| Application: | Single-Stage (Heat/Cool) Heat Pump |
| Stages: | 1 Heat/1 Cool |
| Programmability: | 7 Day Programmable |
| User Interface: | Touchscreen |
| Mount: | Horizontal |
| Options: | Password Lockout Auto Changeover Fan Control Large Display Works with Sensor |
| Power Method: | Battery Hardwired |
| Changeover: | Auto |
| Temperature Range (F): | 45°F - 99°F |
| Voltage: | Low voltage 24V |
| Wattage: | 30 to 75 |

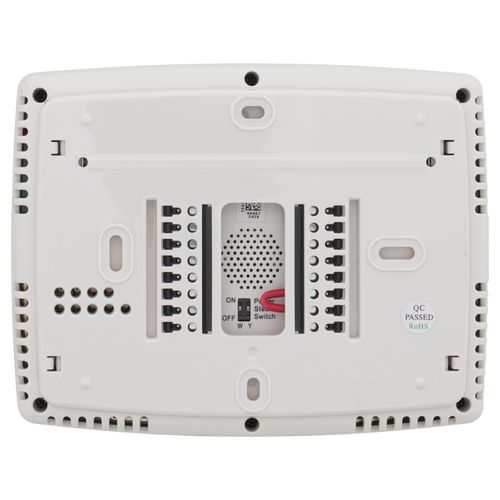

| Wiring: | O L Rh Y G 6 W Rc + B S - C |
| Color: | White |
| Height: | 4-3/5" |
| Width: | 5-9/10" |
| Depth (Inches): | 1-1/5" |
| Replaces: | 1F97-1271 1F90-371 |
| Humidity Control: | Yes |
| Wireless: | No |
Questions?
Compare Similar Products
Heat Pump
Programmable
You May Also Need
Product Reviews
Most Liked Positive Review
Remote enabled thermostat
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Fan Circulator feature removed
Nice
Correct item at competitive price and shipped quickly
i would buy this product again because of your service staff
Yes I would buy again
WILL MAKE HER HAPPY WITH ITS GOOD LOOKS
Quality product and service
I would buy from them anytime. Thermostat for furnace
Great thermostat
Yes love this product
Supply House service was excellent
Product Q&A
11 QuestionsQ: I have a 1f97-1271, can I replace it with this one?
Asked by Loui 10 years ago
Add your answer
Verified Reply- SupplyHouse Staffyes, this is the correct replacement. Thanks!
Q: I have a 1f95-1291. Will this one fit without any changes?
Asked by Jim 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffPhysically yes, but they have very different features.
Q: How do you get back to the manual operation of the thermostat with no schedule
Asked by Scooby 12 years ago
Add your answer
On page 8 of the 1F97-1277 model it states for OPERATING YOUR THERMOSTAT: Manual Operation (Bypassing the Program) Programmable Thermostats Press up ("+" ) or down ("-" triangle [points down]) and the HOLD button and adjust the temperature wherever you like . This will override the program . The HOLD feature bypasses the program and allows you to adjust the temperature manually, as needed . Whatever temperature you set in HOLD will be maintained 24 hours a day, until you manually change the temperature or press Run Schedule to cancel HOLD and resume the programmed schedule. Program Override (Temporary Override) Press up ("+" ) or down ("-" triangle [points down]) buttons to adjust the temperature. This will override the temperature setting for a (default) four hour over- ride period. The override period can be shortened by pressing left "-" pointing triangle, or lengthened by pressing right "+" pointing triangle. Program Override period can range from 15 minutes to 7 days. Example: If you turn up the heat during the morning program, it will be automatically lowered later, when the temporary hold period ends. To cancel the temporary setting at any time and return to the program, press Run Schedule.
Q: We installed a 1f97-1277 my question is does the blue light suppose to stay on all the time?
Asked by Bertha 13 years ago
Add your answer
Mine doesn't. I have two of them and they both turn off after several seconds. I am not in front of mine right now so I can't tell you exactly how long it takes for them to shut off.
No to change press MENU, Hold Installer Config for 5 sec, Press the + button 10 times, Press the <- button once to choose DL off. Press RUN. All set.
It is "CLEARLY" written in the instruction that the only way to keep the blue light on is it requires a power source. I'm sorry for being harsh but read the instructions.
It is ok if it stays on all the time. If you don't like that you can easily have it automatically turn off after so many seconds after you last touched the screen. It is an easy change in the set up menu. I leave mine on all the time. It is a nice night light in my hallway at night. Sent from my iPad
The blue backlight stays on all the time only if powered from the transformer on the furnace or air conditioner. If you are using batteries, the light is only on when you touch the screen.
The blue screen goes off after a period of time. It comes back on if somebody touches the screen, then goes off again if it is not touched for a while. Dave D.
Bertha, The Blue light is just temporary, it does not stay on all the time. Just press the display, away from control keys and it will come on. Patrick R Spencer Done Right Services Inc.
You can program the light to stay on all of the time or turn on when you touch the screen and will turn off after several seconds.. You can have two intensities of light a HI or a LO back light.
Q: i turned off the system and changed the battery. replaced the thermostat. the system was turned to cooling but the heat came on. Have not been able to get the furnace heating system to shut off. Let the heat run its course and the system shut off. set the system to off. removed the battery's. replaced the batteries. replaced the thermostat. The heat system immediately is coming on. Cannot turn off the heat cycle. can place it on cooling but get heat. Only once did the cooling come on while the heat was on Turned off the furnace. What am I doing wrong
Asked by kurt 14 years ago
Add your answer
Recheck the wires are connected to correct terminals
miswired - you need to find and label correct wires.
Q: How do you wire a 1F97-1277 to keep the blue lights on? I have two stats.
Asked by jesse 14 years ago
Add your answer
The only way to keep the back light on is to wire it to a 24v system. It will not stay on if you are using batteries.
Q: Can I replace my 1F78 non-programmable with this termostat? or am I stuck with the 1F78 programmable only?
Asked by J. 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou should be able to use the 1F97-1277, but the wiring configuration may be a little different.
Q: I have a old White Rodgers 7-day 1F97-51 unit that I need to replace. Will I need a wall plate to mount?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to the following manual for Installation Instructions: http://s3.pexsupply.com/manuals/1249544587127/White_Rodgers_1F97-1277_Instructions.pdf
Q: I have a white rodgers model 1f80-261 and would like to replace it with a new touch screen blue model. I have just 1 heat and 1 cool. Can you tell me if the model 1f97-1277 digital blue a compatible one ? If there are others could you tell what they are ? Thanks...
Asked by Beachcomer 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe manufacturer recommends model 1F80-0471 as the replacement for your thermostat.
Q: When I order this thermostat to replace the current one in my house, do I need to also order the wallplate?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffIf the thermostat you are replacing is larger then the 1F97-1277, you will need a wallplate.
