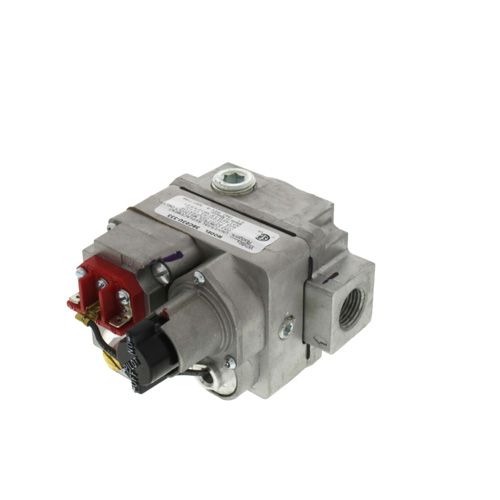

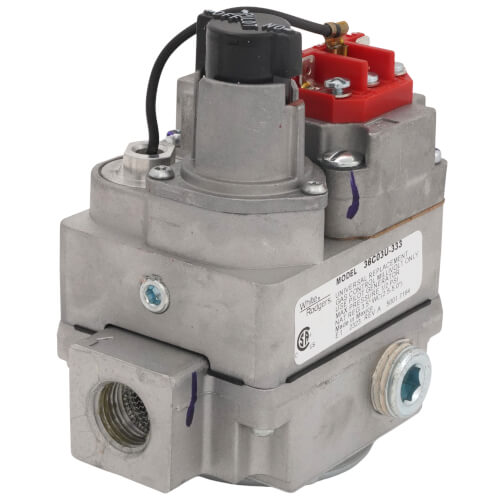

1/2" X 3/4" Universal Gas Valve, 750 Mv
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
Features
- Universal Gas Valve
- 1/2" X 3/4"
- 750 Mv
- Side Outlets Tapped And Plugged
- Reducer Bushings
- (1/2" To 3/8" And 3/4" To 1/2")
- Includes LP Conversion Kit
- ECO Terminals
Specs
| Fuel Type: | Natural Gas |
|---|---|
| Inlet Size: | 1/2" |
| Outlet Size: | 3/4" |
| Capacity (BTU): | 230000 |
| Ignition Type: | Standing Pilot |
| Voltage: | 750 Mv |
Questions?
You May Also Need
1 Replacement Part
Need help finding a replacement part?
Product Reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Was exact fit and solved problem
Great replacement gas valve
I would buy this product again for a similar application
Worked Great!
Good replacement for old General Controls B60
I would buy again
Heat without electricity
Great replacement
Perfect replacement
success
Product Q&A
3 QuestionsQ: what is the btu output of this valve?
Asked by Ken 14 years ago
Add your answer
I'm useing it on a 65,000 output/80,000 input with no problem.
dear powerreviews, the short answer is 230,000 BTU/Hr; I bought the White Rodgers 36C03U-433 which has the 3/4" input and 3/4" output. the box states: 280,000 BTU/Hr AGA gas; in the specs at their website http://s3.pexsupply.com/manuals/***.****08/White-Rodgers-36C-Gas-Valve.PDF it states the 36C03U-333, with 1/2" input and 3/4" output, has a rated range of regulation is between 30,000 and 290,000 BTU/Hr and 230,000 BTU/Hr with a 1" pressure drop capacity. I would say then that your looking at 230,000 BTU/Hr maximum capacity for your model. another feature about this valve is that it works at minus 40 degrees and up to 175 degrees ambient temperatures, which would work well in a cabin or cottage applications if you were entering from the cold at subzero temps. I purchased a Fuse Thermo Rollout (228 deg C) to place somewhere in the burning chamber in case of a fire or explosion. hopefully it will handle this addition, but the current is only 750 mv so i'm not sure yet, until i try to install it. greg
230,000 Btu
Click the "Manuals" tab on this page and open the product specifications. There is a table showing BTU capacity given LP or NG and various pipe sizes.
Q: Does this valve have a black EPU wire
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve has a black wire at the top of the unit.
Q: is it 24V 60HZ with a pilot?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to the document below for full product specifications. http://s3.pexsupply.com/manuals/1249544603208/White-Rodgers-36C-Gas-Valve.PDF
yes
