1/2" hePEX - (1000 ft. coil)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (6)
Product Highlights
Description
Uponor (Wirsbo) hePEX is compatible with both Uponor’s (Wirsbo) ProPEX fitting connections and QS-style fittings.
Uponor (Wirsbo) hePEX is manufactured to ASTM F876 and F877, and is designed for closed-loop hydronic heating applications. Uponor (Wirsbo) hePEX tubing is rated and listed by the Hydrostatic Stress Board of PPI at: 200 degrees F at 80 psi, 180 degrees F at 100 psi and 73.4 degrees F at 160 psi.
Note 1: 5/16" hePEX tubing is used for the Uponor (Wirsbo) Quik Trak system.
Note: Uponor (Wirsbo) hePEX tubing, traditionally used in radiant heating applications, became certified to NSF/ANSI Standard 61 for potable water in December 2012. Please read the Approvals document located in the Manuals tab for more information.
What are the Uponor PEX Standards?
Uponor PEX and associated fittings are manufactured to the following standards:
- ASTM F876 "Standard Specification for Cross-linked Polyethylene (PEX) Tubing"
- ASTM F877 "Standard Specification for Cross-linked Polyethylene (PEX) Plastic Hot and Cold Water Distribution Systems"
- ASTM F1960 "Standard Specifications for Cold Expansion Fittings with PEX Reinforcing Rings for use with Cross-linked Polyethylene (PEX) Tubing"
- ASTM F2080 "Standard Specifications for Cold Expansion Fittings with Metal Compression Sleeves for Cross-linked Polyethylene (PEX) Tubing"
- CSA B137.5 Thermoplastic Pressure Piping Compendium
- CSA
- ICC
- ITS
- PPI
- UL
- NSF-rfh
- NSF/ANSI Standard 61 for potable water
- IMC
- UMC
- IRC
- NBC of Canada
In the United States:
- Tested in accordance with ASTM E119/UL 263
- G573 - Two-hour Hambro floor/ceiling assembly
- K913 - Two-hour concrete floor/ceiling assembly
- L557 - One-hour wood frame floor/ceiling assembly
- U372 - One-hour wood frame wall assembly
- V444 - One-hour steel stud wall assembly
- Tested in accordance with CAN/ULC S101
- G573 - Two-hour Hambro floor/ceiling assembly
- UW/WA 60-01 - One-hour steel stud wall assembly
- UW/WA 60-02 - One-hour wood frame wall assembly
- WC/FCA 60-01 - One-hour wood frame floor/ceiling assembly
- WC/FCA 120-01 - Two-hour concrete floor/ceiling assembly
- WC/FCA 120-02 - Two-hour concrete floor/ceiling assembly
Specs
| Length (Feet): | 1000' |
|---|---|
| Fitting System Compatibility: | Expansion PEX PEX Press Clamp PEX Compression Crimp Push Fit |
| Size: | 1/2" |
| Shape: | Coil |
| Tubing Type: | Oxygen Barrier |
| Material: | PEX |
| Color: | White |
| Warranty: | 25 Year |
| Application: | Heating |
| Max Pressure (PSI): | 160 |
| Outside Diameter: | 0.625" |
| Grade: | PEX-a |
| Inside Diameter: | 0.475" |
| Standards Met: | NSF DIN4726 |
| Max Temp (F): | 200°F |
| Type: | Tubing |
Questions?
You May Also Need
Product Reviews
Most Liked Positive Review
Great to work with
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I had no other choice
Excellent place
Uponor HePe ... Great Priduct!
I would buy the item again
I would buy again
I would by Uponor HePEX before any other brand.
I have bought this item multiple times and would buy again
I have bought this item multiple times and would buy again
I would buy this product again
Yes
Never had a problem with hePex
Product Q&A
57 QuestionsQ: i am running a closed loop glycol system using ethylene gycol...is the pex tubing resistant to this appliction
Asked by blong 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHello, thanks for writing in. This can be used with propylene glycol, however it is not for use with ethylene glycol.

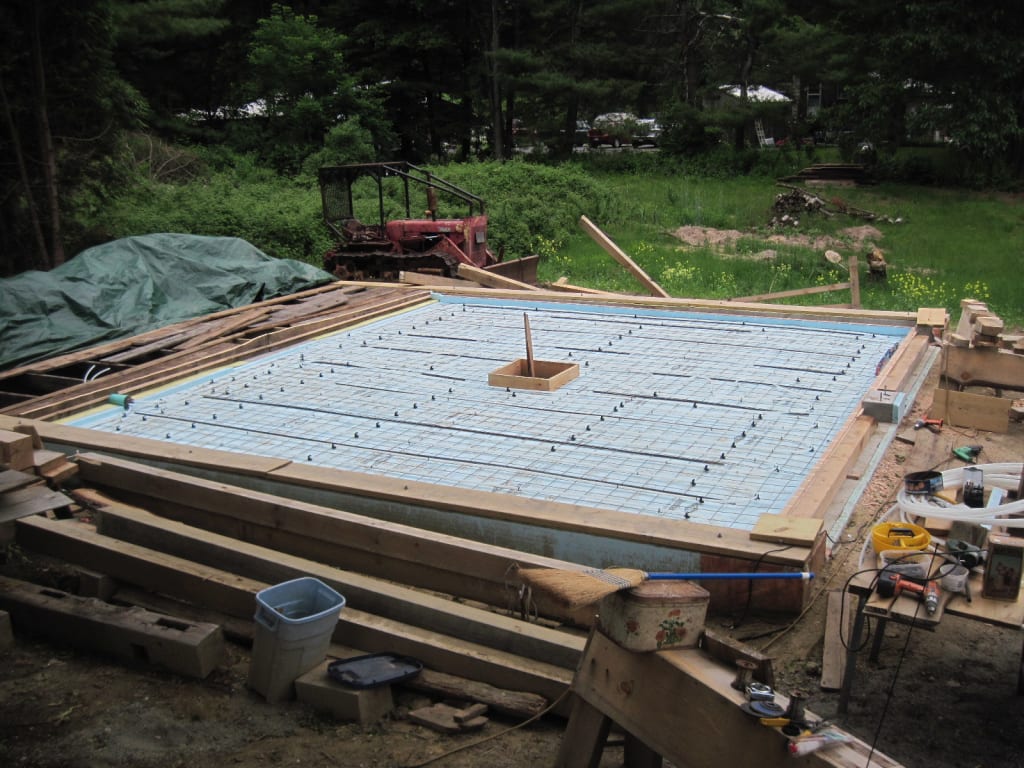

Q: We are considering using ten 300' 1/2" coils in a 6" thick concrete floor in a 2800 square foot shed we are building. Does this need to be covered with a tarp from the time we are installing it until the concrete is actually poured to protect it from sunlight? I don't think it would be more than 3 or 4 days from the time we started until the floor was actually poured but we don't want this to degrade.
Asked by WPB 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffWe suggest covering it. Uponor lists 30 days is the maximum exposure to UV before voiding the warranty. UV exposure can cause the PEX to degrade and breakdown. We suggest keeping the tubing out of sunlight and covering it to be safe.
Q: I've read that pex type B can deal with chlorine better than type A pex. We have have chlorine in our water but I do not know the concentration. This will be used for hydronic heating (baseboard). So I would prefer type A but am concerned about cracking from chlorine. Thanks!
Asked by Ptishere 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe Uponor Hepex is grade A Pex and it is approved for use with chlorinated water. http://s3.supplyhouse.com/product_files/A1180313-Approvals.pdf
Q: can hepex be used in an open end heating system where shower and cooking water are drawn from the radient heating system???
Asked by cliff 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, this HEPEX tubing has been approved for use in potable water systems by the manufacturer. http://s3.supplyhouse.com/product_files/A1220313-Approvals.pdf
Q: can this be imbedded in concrete?
Asked by mike 12 years ago
Add your answer
Yes you can. Follow the recommendations for entry and exit out of the concrete. Basically it needs a sleeve for movement at those points.
Q: Can someone tell me if tubing is marked with running foot length?
Asked by John 12 years ago
Add your answer
Mine was numbered sequentially every 3' Sent from my iPhone
Yes marked about every 3 feet Sent from my iPad
Yes it is.
Tubing i have in stock made in 2013 and have no running foot marking. Only type and all technical information. Thanks
yes
Good Day, Yes it is - but be careful they rub off when you pull them.
Q: is hepex acceptable to use for potable water supply
Asked by jk 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, hePEX is approved for use with potable water (as of December 2012). Please refer to the document at the link below for further information. https://www.uponorpro.com/~/media/Extranet/Files/Technical%20Letters/Wirsbo%20hePEX%20Tubing%20NSF61%20Listing%2002.13.aspx?sc_lang=en
Q: Can this be used in conjunction with Rifeng crimp fittings and stainless steel crimps
Asked by joss 12 years ago
Add your answer
Verified Reply- PexSupply StaffYes, hePEX is compatible with crimp-style PEX fittings (including Rifeng ones).
Q: I am installing a 70 k boiler .Is using 1 inch hepex for my main supply and return run to and from the header (approx 25 feet away) acceptable.This is a typical hot water heat install.thankyou for your response
Asked by none 13 years ago
Add your answer
Yes, 1" should work fine. I have a similar set-up and have no issues.
The 1" HePEX should be OK, but it is not very flexible. It sags a lot when filled with hot water so be sure to support it at all right angle bends and every 24" on straight runs.
While the 70kbtu you chose will do 7gpm a minute and the 1"hePex will do 8 gpm. Is this your secondary loop and or are you looking to feed any zone branches?
I personally feel that 1 inch would probably be too small for that long of a run(25'). I don't know any details about your setup so this would be my best guess. What size fittings do you have on the boiler? Or what is the max size pipe you could go on the boiler?
It will probably work. however you will most likely need a reducer to 3/4" to get into the heater itself depending on what the unit you are running to looks like (ie: wall mounted radiator, baseboards, etc.) I WOULD absolutely consult a professional HVAC company for advice before you purchase this item or begin your work. For me, they were nice enough to help me come up with a plan give me a supply list, then I did most of the labor intensive work (running lines, hanging boards, etc.) then they came in at the end, added the circulator pump and made all the final connections. It was a great way to save money. Hope this helps.
I need to know how many zones will be tied into the 1" what size piping is on each zone and how many feet of heat on each zone. Then I can answer your question. Regards

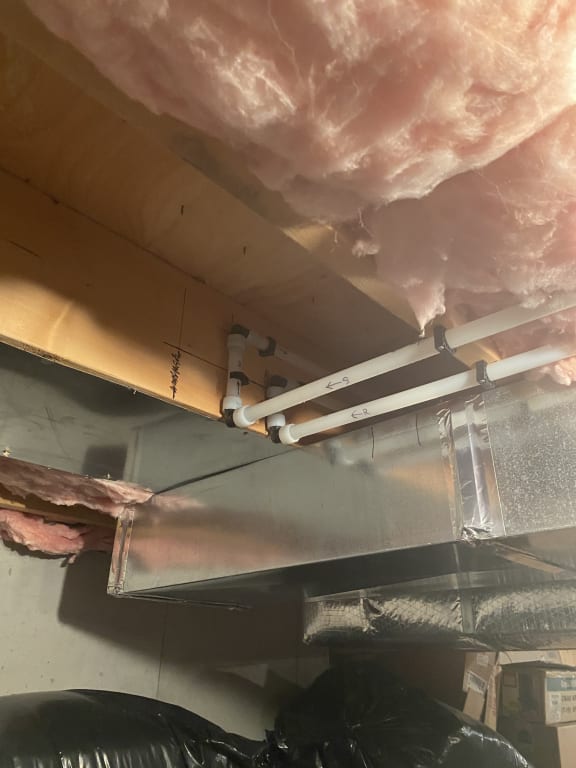

Q: I'm remodelling my basement and need to relocate the piping for my first floor hydronic baseboard heat (which is located in the basement ceiling). I have used PEX to replace all of my hot/cold water plumbing and would prefer to replace the existing 3/4 copper piping for my heating system with PEX as well. I have two questions: 1) Is the 'hePEX plus' suitable for this application and if not what should I use? 2) Can I use Sharkbite press-on connectors with this tubing?
Asked by Kev 13 years ago
Add your answer
Verified Reply- PexSupply Staff3/4" hePEX should be suitable for this application base on its size and the fact that it has an oxygen barrier. hePEX is compatible with all types of standard PEX fittings (including SharkBites), in addition to expansion-style fittings.
I have used hePex but I would not use Shark Bite fittings.
Yes you can use hePex plus for heating applications. Just double check the sizes of the hepex vs. the copper because the way they size them is different.. I did most of my hydronic heating loop with this several years ago and no problems. I cannot help you with the sharkbite part of your question as I did not use that type of fitting. Sent from my Toaster Oven
Yes to both questions. Any pex to be used in a hydronic system must contain an oxygen barrier. Make sure to use a stiffner with any quick connect fitting in pex
why replace the copper? the amount of expansion contraction with heating is a lot and copper is very good at this Frank Hyder www.frankhyder.com
I do not recommend use any plastic tubing for baseboard hydronic heating because working temperature may be up to 208F. This temperature make Uponor tubing very flexible and soft. If plastic tubing must be used allow space for expansion and retraction , no sharp edge against tubing, plastic clips hold tubing every 12". I never use press on connectors on Uponor tubing but if Your fittings design to use on cross linked polyethylene(PEX) tubing You may use them. Uponor made superior quality PEX tubing. Thanks
Pex is used as a heat source for in the floor radiant heat. Check on line for radiant heat-pex.
