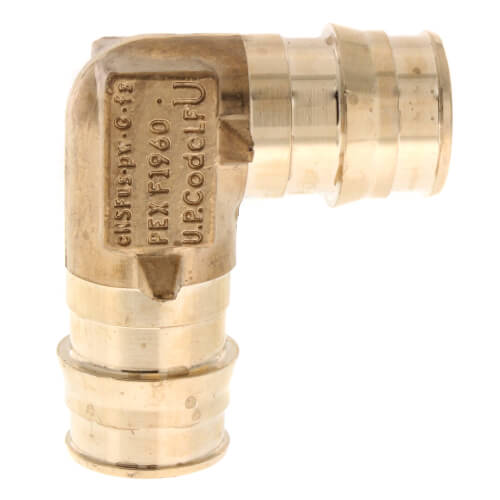

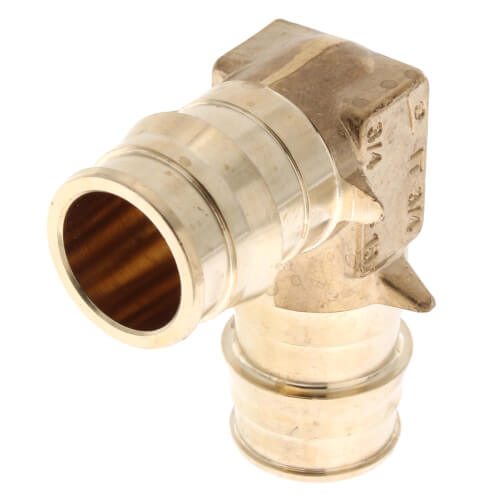

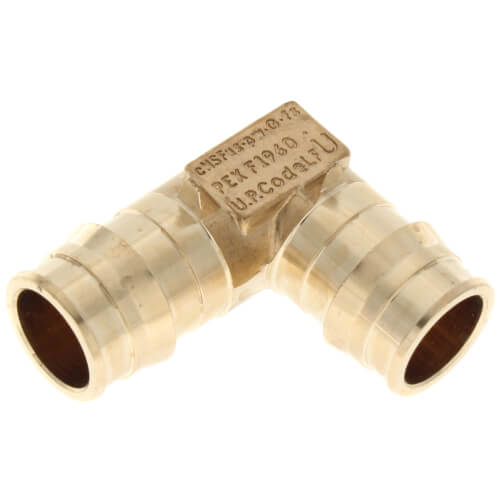

3/4" ProPEX Elbow (Lead Free Brass)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (2)
Product Highlights
Description
ProPEX Lead Free Brass Elbows make 90-degree connections for PEX-a tubing.
Uponor's lead-free brass transition fittings, valves and wall boxes carry the NSF us-pw-G marking for lead-free compliance to meet state lead-free legislation, and exceed the U.S. Safe Drinking Water Act. Now you can combine lead-free brass fittings with Uponor's PEX tubing, EP offering and ProPEX Out-of-the-Wall Support System for a complete lead-free solution from the inlet to the faucet. The new lead-free offerings feature Uponor's unique ProPEX fitting system for strong, durable connections without the need for torches, glues, solvents or gauges.
Specs
| Thread Type: | ProPEX |
|---|---|
| Size: | 3/4" |
| Material: | Brass |
| PEX Size: | 3/4" |
| Warranty: | 25 Year (Limited) |
| Application: | Plumbing Heating |
| Max Pressure (PSI): | 200 |
| Standards Met: | ASTM F1960 ASTM F877 NSF |
| Fitting System Compatibility: | Expansion PEX |
| Tubing Compatibility: | PEX |
| Lead Free: | Yes |
| Max Temp (F): | 200°F |
Contact
Happy Independence Day!
Compare Similar Products
Heating
ASTM F877
NSF
You May Also Need
Product Reviews
Quality Plumbing Parts
Buy for every shower
What I expected
yes
Piece of mind
thanks
Top quality, highly expedient service
Awesome company
Could not be better.
Best choice for challenging installations
Product Q&A
2 QuestionsQ: Will the male threads work with the female threads on the shower valve?
Asked by brad 14 years ago
Add your answer
Hi Yes they will. Most shower valve are female national pipe thread. Thanks Nick
Hi There, First off, congratulations on switching over to PEX. I have an older home I'm remodeling and found it to be affordable, and very easy to set up and use. I bought a Manabloc and expansion tool which may have made my job even easier. To answer your question, it'll all depend on the size of your shower valve. You may need an adapter. I found the pex fittings to be compatible with all of the plumbing supplies I purchased so hopefully that'll help! Take care and good luck, Karen
Yes, The 1/2" elbow uses a tapered thread design. This tapered thread design is identified by any one of 3 labels. NPT= National Pipe Thread MIP= Male Iron Pipe FIP=Female Iron Pipe. As long as your 2 fittings has one of these labels, they will work together.
yes it will work if shower valve is 1/2" FIP
Yes. MIP stands for Male Iron or International Pipe Thread. The Female threads on the shower valve will be the same standard pipe thread. Use about three wraps of Teflon tape or pipe sealing compound and you should be all set.
Yes, as long as the female threads on the shower valve are 1/2" pipe threads and not threads for flare or compression tubing fittings. Wes Sims
It should fit. I believe most shower valves have 1/2" female pipe threads.
Q: Where is the 1/2" pex version of this? I am looking for 1/2" pex x 1/2" pex ProPEX LF Brass Elbow. the model should be LF4710500. Do you carry such part?
Asked by Warren 14 years ago
Add your answer
Verified Reply- PexSupply StaffUponor no longer offers a 1/2" ProPEX elbow in brass. The only option is the EP version, part Q4760500.
