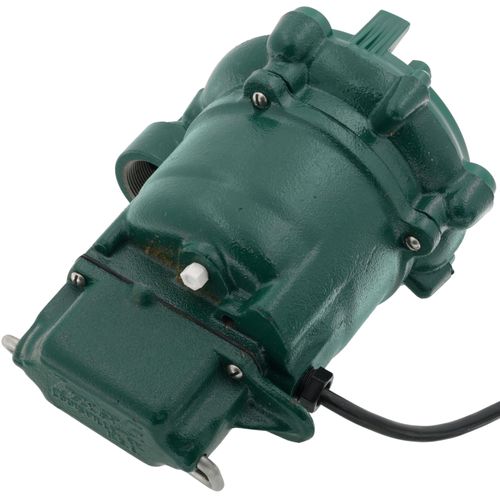

Model N53 Mighty-Mate Non-Automatic Cast Iron Effluent Pump - 115 V, 0.3 HP
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$216.75 each
In Stock
Get 34 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (4)
This item replaces: 72-0002
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
15'
Cast Iron
1/3 HP
115V
43 GPM
9.7 Amps
Description
–

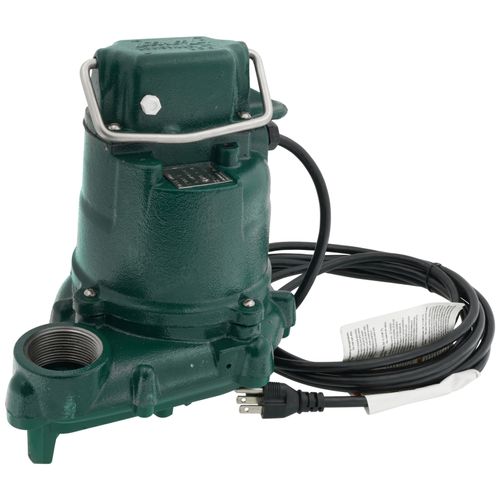

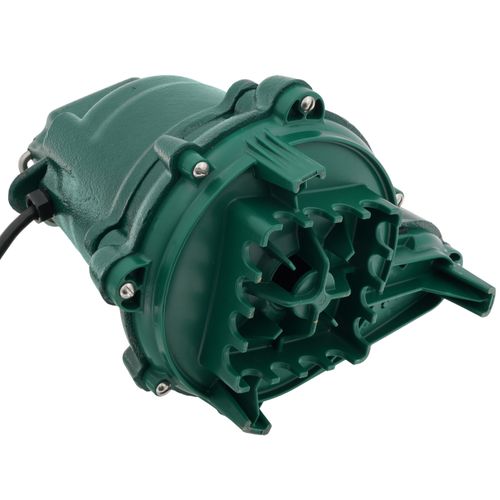

NOTE: Image depicts automatic model. Image #2 depicts vortex impeller.
Submersible pump for dewatering (sump) or effluent (septic tank systems)
Features:
Model 53 Specific Features:
Submersible pump for dewatering (sump) or effluent (septic tank systems)
Features:
- Submersible (NEMA 6) 2 pole mechanical switch & variable level long cycle systems available
- Corrosion resistant powder coated epoxy finish
- No sheet metal parts to rust or corrode
- Stainless steel screws, switch arm, guard and handle
- No screens to clog
- Watertight neoprene square ring between motor and pump housing
- Oil-filled, hermetically sealed, non-automatic.
- Upper and lower sleeve bearings running in bath of oil
- Entire unit pressure tested after assembly
- Carbon and ceramic shaft seal
- Maximum temperature for effluent or dewatering 130°F (54°C)
- Passes 1/2" spherical solids
- 1-1/2" NPT discharge
- On point: 7-1/4", Off point: 3"
- Watertight and dust tight
- Permanently oiled bearings
- Impeller Type: Non-clogging vortex impeller
- Reserve Powered Design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
Model 53 Specific Features:
- Cast iron switch case, motor and pump housing
- Engineered thermoplastic base
- Engineered, glass filled, plastic impeller with metal insert
- Stainless steel guard and handle
- Lower and upper bearings, oil fed cast iron
Specs
–
| Cord Length: | 15' |
|---|---|
| Shutoff Head (ft.): | 19.25' |
| Type: | Manual |
| Application: | Plumbing |
| Material: | Cast Iron |
| Horse Power: | 1/3 |
| Voltage: | 115V |
| Flow at 5 FT Head: | 43 GPM |
| Amperage: | 9.7 |
| Phase: | 1 |
| Hertz: | 60 |
| RPM: | 1550 |
| Cord Type: | UL Listed, 3-Wire Cord & Plug |
| Height (Inches): | 10.0625" |
| Width (Inches): | 10-3/32" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
3 Replacement Parts
Thru Wall Term Seal
SKU: 003402
ZoellerRubber Closet Seal
SKU: 017347
Zoeller
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.75 out of 8 reviews
100% would recommend this product
5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-8 of 8 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Fast Shipping Works Great
Same model as the 20 yr old septic pump it replaced. Only issue was it came with 8ft cord instead of 15ft in description.
Joe
Wilmington, NC
4 years ago
Verified Buyer
Was this review helpful to you?
I would buy again
Fast delivery, Great customer service, would definitely use Supplyhouse.com in the future.
Jim
Canton GA
6 years ago
Verified Buyer
Was this review helpful to you?
Would buy again but it takes 15+ yrs years before it dies
Exact copy of the one installed 2005 and it was used, for how long I don't know. Flawless performance for me for 15 yrs in in a rainwater collection system. No sense in dumping a winner and hope for another 15 yrs.
Tim
California
6 years ago
Verified Buyer
Was this review helpful to you?
Good product with fast shipping
Good product. Got it quickly. Friendly customer service. Would shop here again.
Steve
Cleveland
7 years ago
Verified Buyer
Was this review helpful to you?
Well built little machne.
I placed two of these with two LevelGuard electronic level switches in a 2,500 sq ft basement. Also I ran two separate dedicated 20 amp branch ckts to power these. This was March 2018. A year later and still running strong. This specific home gets alot of ground water, I suspect from known mine subsidence, so these pumps keep busy and QUIET. So quiet that I placed lighted GFCI receptacles at each pump pit so the home owner can tell the power is on, and listen for the pump.
Big Quark
Pittsburgh, Pa
7 years ago
Was this review helpful to you?
I have the same model working over 11 years now.
I have the same model in a septic tank 11+ years and still going. I bought this as a spare since I do not want to wait for shipment when the current one finally fails. Only weak spot I find is the threading. Since its thinner metal because of the threading a piece has broken away. But I am very happy with the quality of this product as well as price.
benny
Naperville, Il
10 years ago
Verified Buyer
Was this review helpful to you?
One of the best products for the money.
Having worked in the septic business for some time, I have had oportunity to compaire this with similar products and found the Zoeller manuel pump to be one of the best values.
stereotypo
Coarsegold CA
13 years ago
Verified Buyer
Was this review helpful to you?
Outstanding hardware for excellent price
Heavy duty little pump. Should last many years.
mule
Crystal Lake, IL
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Does non-automatic mean that the pump will run continuously when plugged in? I don't need a float to turn the pump on and off, just need to pump out a tank. thanks, Joe
Asked by joe 12 years ago
Add your answer
-
Yes.
Was this review helpful to you?
-
Yes, it has no float switch or pressure switch to turn it on/off. It runs continuously when plugged in. I wanted this model so that I could buy my own float switch to control it. It would work fine for your tank pumping, too. Cheers, Paul
Was this review helpful to you?
