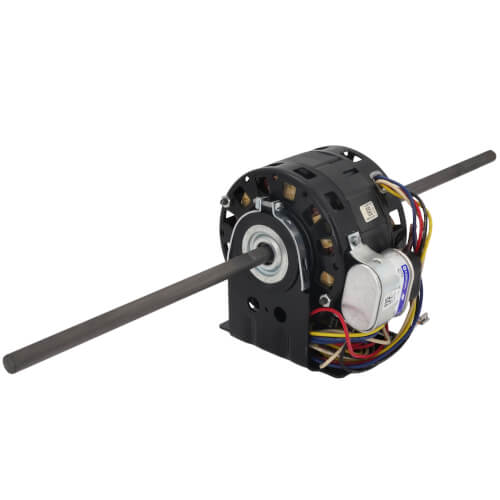

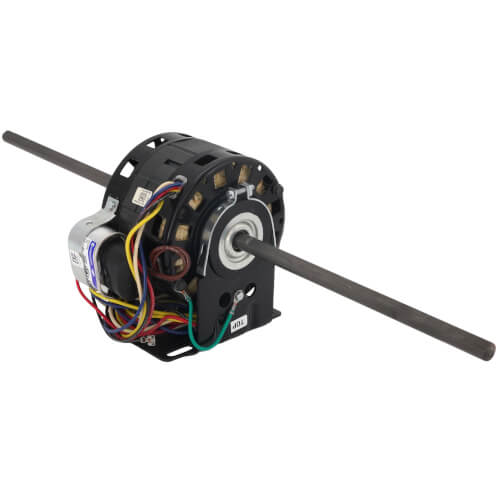

5" 4-Speed Double Shaft Fan/Blower Motor (115V, 1075 RPM, 1/10, 1/12, 1/15, 1/20 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
DBL6501V1 has been discontinued
Discontinued September 28, 2024
This product was discontinued by the manufacturer.
Suggested Alternative:
5" Double Shaft Fan/Blower Motor 42Y Frame (115V, 1050 RPM, 1/10 HP)
Product Highlights
–
115V
1075 RPM
CCWLE
1/15, 1/12, 1/20, 1/10 HP
Resilient Base
1.7 Amps
Description
–
Features:
- PERMANENT SPLIT CAPACITOR
- Auto Protector
- Continuous Air Over
- Min. 36" leads
- Open Construction
- Resilient Base
- Sleeve Bearing
- 1/2" Dia.- Flatted Shafts
- 40° C Ambient
- 3-1/2" Shaft Height
- 60 HZ only
- 42 Frame (5.0" Dia.)
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/15 1/12 1/20 1/10 |
| Bearings: | Sleeve |
| Voltage: | 115V |
| Duty: | Air Over |
| Mount: | Resilient Base |
| RPM: | 1075 |
| Poles: | 6 |
| Rotation: | CCWLE |
| Enclosure Type: | Open |
| Speeds: | 4 |
| Hertz: | 60 |
| Amperage: | 1.7 |
| Frame: | 42Y |
| Insulation Class: | A |
| Phase: | 1 |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
