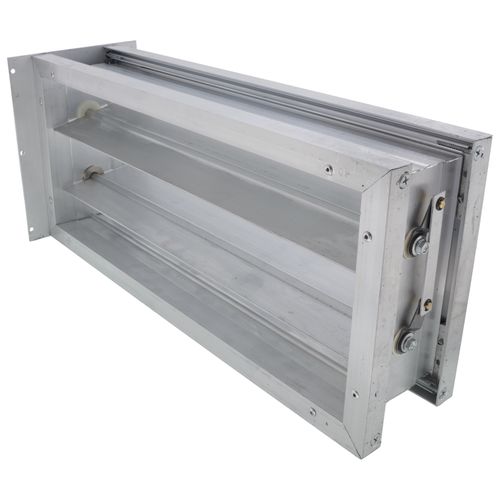

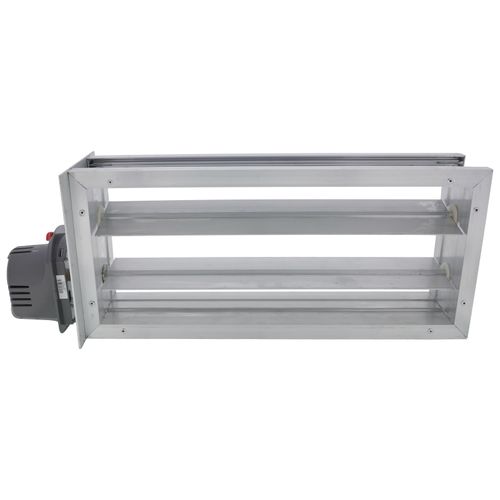

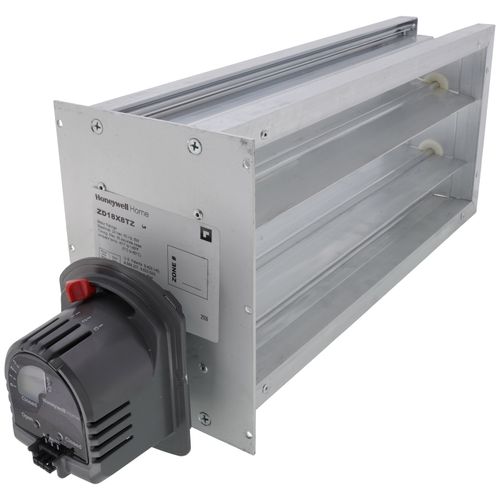

18 in. x 8 in. TrueZONE Rectangular Parallel Blade Damper
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$233.79 each
In Stock
Get 27 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (4)
This item replaces: ZD18X8
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
18" x 8"
Rectangle
24V
5 Year Warranty
Description
–
Overview
The ZD is a power close and spring open damper. It has a 24-volt motor used to control circulating air in heating, cooling and ventilating systems. It is used when a normally-open damper is required. The ZD is typically used with the TrueZONE systems and other electronic zoning systems.
Features
The ZD is a power close and spring open damper. It has a 24-volt motor used to control circulating air in heating, cooling and ventilating systems. It is used when a normally-open damper is required. The ZD is typically used with the TrueZONE systems and other electronic zoning systems.
Features
- Kevlar gearing reduces wear, more than doubling damper life.
- Adjustable range stops.
- Mechanical visual position indicator for damper status.
- Solid construction using extruded aluminum frame and blades.
- Parallel blade design for low leakage performance.
- Quieter operation with fewer blades.
- Simple, easy-to-wire, two-wire installation.
- Reliable, strong, 24-volt spring-return motor.
- Fail-safe, normally open operation.
- Compatible with conventional and networked zoning.
- Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is a 8 in. x 10 in. damper that has the motor on the 10 in. side.
- Damper can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
Specs
–
| Warranty: | 5 Year |
|---|---|
| Size: | 18" x 8" |
| Application: | Air Quality |
| Voltage: | 24V |
| Features: | Adjustable Range Stops |
| Motor: | Spring Return |
| Motor Side: | 8" |
| Shape: | Rectangle |
| Wires to Motor: | 2 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Application
Voltage
Shape
CURRENT ITEM
18" x 8"
Air Quality
24V
Rectangle
You May Also Need
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
superb product and service
received damper quickly and well packaged.
super happy w their service.
jonboy
leesburg indiana
4 months ago
Verified Buyer
Was this review helpful to you?
Quality Parts
Prompt delivery, friendly customer service.
Ron
Cedar Lake, IN
4 years ago
Verified Buyer
Was this review helpful to you?
Great Price .... Fast Service!
I purchased these dampers to replace the original "30 year old" motorized dampers that were becoming intermittent. Other than requiring a 1" wider opening in the duct they were super simple to install. I saved over $700 by doing it myself over having the heating contractor do it. I found all information I needed on the internet.
These dampers are top quality and will last another 30 years!
Alan C. Home owner
New Milford Ct.
6 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: What size opening do I need for a Honeywell ZD18x8TZ damper? And does it matter which side of the duct it gets mounted to?
Asked by Patrick 9 years ago
Add your answer
Verified Reply- Supplyhouse StaffWhen installing the damper you would need to cut a 4-inch opening in the accessible side of the air duct at the location selected; ensure the opening of the air duct is cut fully from seam to seam. The Damper can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
Was this review helpful to you?
