TrueZONE Kit with DATS, Transformer and HZ322 Panel
Hover image to zoom

TrueZONE Kit with DATS, Transformer and HZ322 Panel

SKU:
HZ322K
Rating:
(112)
Q&A:
(10)
TrueZONE Kit with DATS, Transformer and HZ322 Panel
Hover image to zoom
$261.12 each
In Stock
In Stock
Get 126 Tue, Mar 5
More Available
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
24v
Number of Zones icon
3
Stages icon
2 Heat/2 Cool
Height (Inches) icon
11.5" Height
Width (Inches) icon
8" Width
Depth (Inches) icon
1.86" Depth

Description

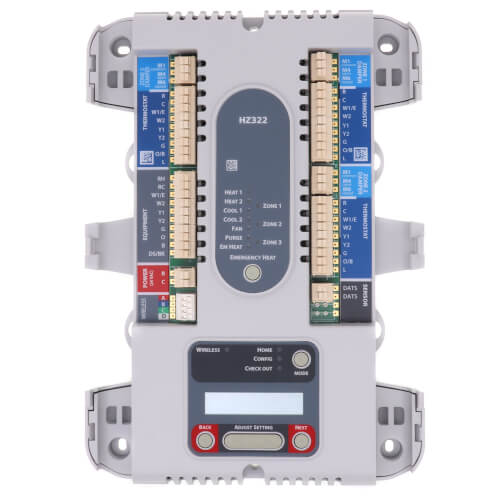

Honeywell TrueZONE HZ322 Panel (RedLINK enabled) is for conventional and heat pump applications up to 3 zones (2H/2C).

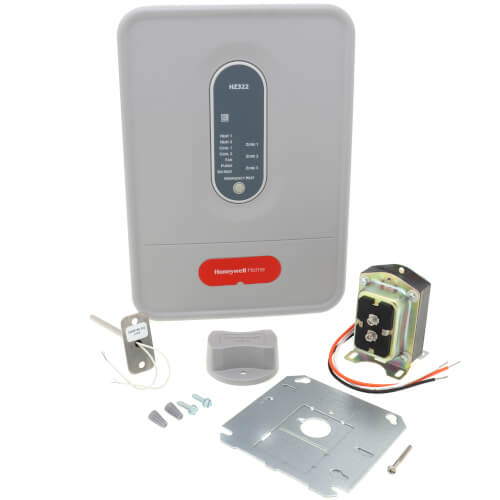

Honeywell TrueZONE Kit HZ322K includes Honeywell TrueZONE HZ322 Panel, AT140 Transformer and C7735A Discharge Air Temperature Sensor (DATS).

Features:
  • Intuitive Installer setup. Easy-to-follow, digital display uses real language to guide installer through four easy steps
  • Standard Checkout Procedure
  • Robust Push Terminals
  • Common-Sense LEDs
  • Clean, Professional Installation
  • Smaller Footprint
  • Variable-Speed Fan Control
  • Discharge Air Temperature Staging
  • RedLINK enabled for wireless operation when used with THM4000R1000 wireless adapter

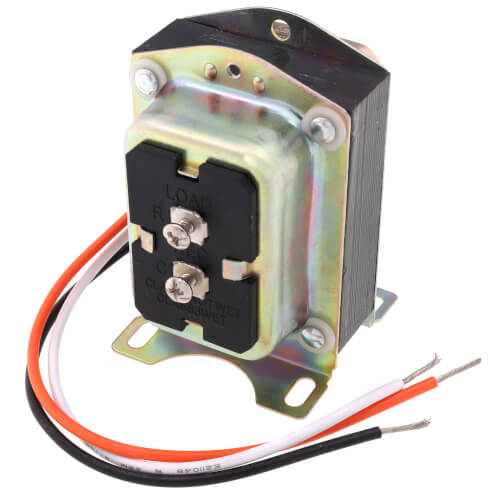

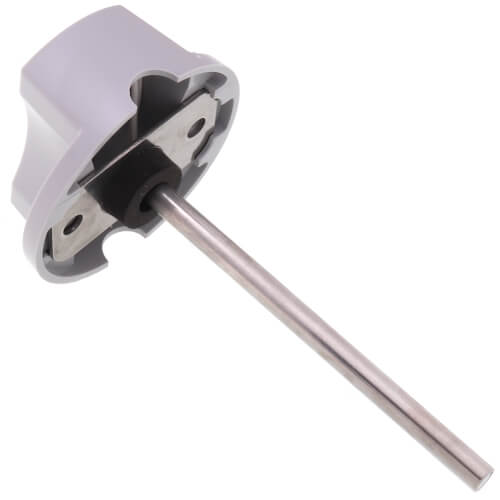

  • Includes HZ322 TrueZONE panel, AT140 40VA transformer, C7735A discharge air sensor

Specs

Application:

Zoning

Number of Zones:

3

Network Zoning:

No

Heat Pump Compatible:

Yes

Stages:

2 Heat/2 Cool

Auto Changeover:

Yes

Voltage:

24v

Discharge Air Temp Compatible:

Yes

Emergency Heat Switch:

Yes

Resettable Fuse:

Yes

Individual Zone Fan Control:

Yes

LEDs:

Yes

Height (Inches):

11.5"

Width (Inches):

8"

Depth (Inches):

1.86"

Wiring:

18 Gauge Solid

Hertz:

60

50

Temperature Range (F):

-40°F - 165°F

Includes:

DATS
