Universal Intermittent Pilot Gas Ignition Control

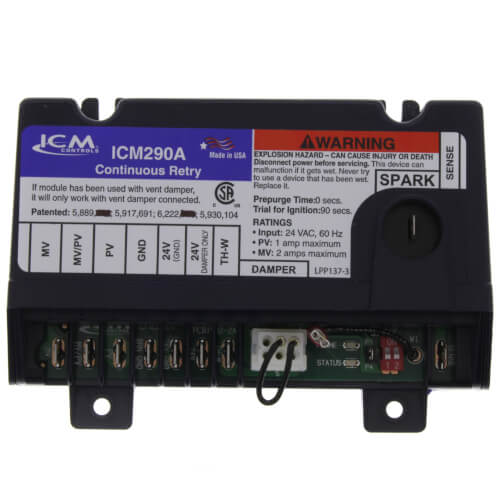

The ICM290 Universal Intermittent Pilot Gas Ignition Control Module provides easy field replacement of a wide range of intermittent pilot ignition modules manufactured by Honeywell, Robertshaw, Johnson Controls, and others. The ICM290 replaces existing flame rectification type, intermittent pilot ignition modules with the following characteristics:

• Single rod (local sense) or two rod (remote sense) flame sensing
• Non-100 percent shutoff, 100 percent shutoff/lockout, or 100 percent shutoff/continuous retry
• Natural or LP gas
• Shutoff/lockout times of 15 seconds or longer
• Pre-purge configurable to 30 seconds or no prepurge
• Pilot burners with flow rates of 1,500 Btuh or less
• With or without integral damper connector

Product Features

• Universal intermittent pilot gas ignition control
• Provides ignition sequence, flame monitoring and safety shutoff for single/dual rod intermittent pilot control applications
• For gas fired furnaces, boilers and other heating applications
• Switch selectable pre-purge and ignition trials with permanent lock
• Works with or without vent damper connected
• Works with both Natural and LP gas systems
• LEDs:
  • Green Status LED provides system status and error codes
  • Yellow Flame LED indicates flame presence and flame strength
