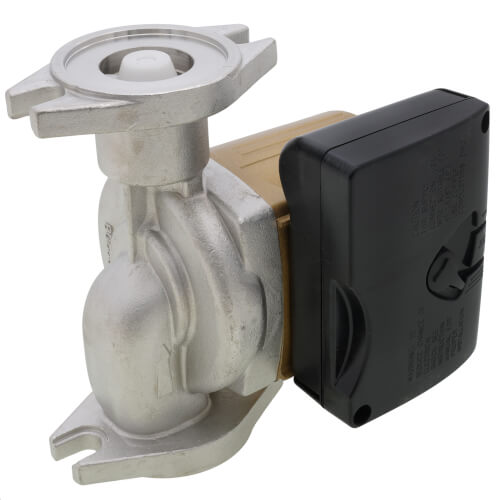

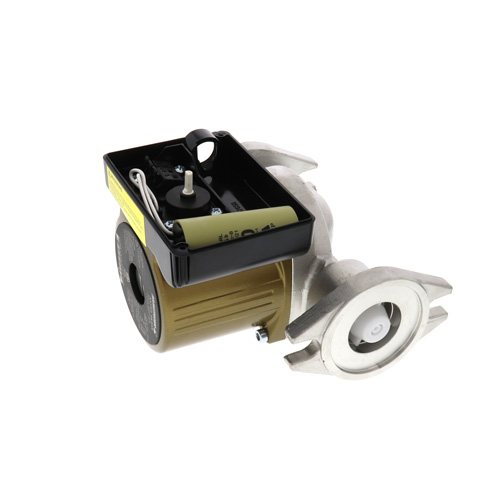

Astro-250SS 3-Speed Stainless Steel Circulator, 0-18 GPM Flow
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$388.50 each
In Stock
Get 9 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (5)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/20 HP
30 Month Warranty
Flanged x Flanged Connection
18 MAX GPM
Stainless Steel
Description
–
**Flanges must be purchased separately
A hydronic circulator that conserves energy and eliminates maintenance. Armstrong's Astro 2 Circulator is intended for circulating water or ethylene glycol solutions in closed hydronic or solar heating systems. It is designed with no mechanical seals or couplers to replace, and no lubrication is required.
Features
- Efficient/Quiet Operation
- Universal Flange to Flange Dimension
- Stainless Steel Construction
- ETL Listed (conforms to UL and certifies to CSA)
- No mechanical seals to leak
- No couplers to break
- No lubrication
- 3 speed selection
- Removable check valve
- Direct replacement of Armstrong and over 90 competitive circulators
- Vent plug for initial purging if required
- Thermally protected motor
- 30 Month Warranty
Specs
–
| Warranty: | 30 Month |
|---|---|
| Max Flow (GPM): | 18 |
| Flow Range (GPM): | 0-18 |
| Head Range (ft.): | 0-24 |
| Max Head (Ft): | 24 |
| Phase: | 1 |
| Voltage: | 115V |
| Hertz: | 60 |
| Material: | Stainless Steel |
| Max Fluid Temp: | 230°F |
| Connection Type: | Flanged x Flanged |
| Type: | 3-Speed Pump |
| Horse Power: | 1/20 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Max Flow (GPM)
Flow Range (GPM)
Head Range (ft.)
Max Head (Ft)
Phase
CURRENT ITEM
18
0-18
0-24
24
1
You May Also Need
Product Reviews
4.57 out of 7 reviews
100% would recommend this product
5 star
57%
4 star
43%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-7 of 7 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
great product but needs to be replaced every few years
my pump is installed as a whole house hot water recirculating system. after several years, it develops a slight clicking noise that gets transmitted to the pipes. the pump itself does not fail, but i have to replace it because of the noise. the good news is that it really does a good job recirculating.
paul
alabama
5 years ago
Verified Buyer
Was this review helpful to you?
So far so good!
The different speeds allow me to alter the effect from the circulating hot water. I love how quiet it is! This is my second Armstrong pump in two different applications in the last year. They both are performing perfectly.
Dave
Clarksville, TN
5 years ago
Verified Buyer
Was this review helpful to you?
Replacement for existing pump
I replaced a 15 year old unit after the plastic impeller came apart. I hope this new one has a better impeller!
Pete the handyman
Amity, Oregon
6 years ago
Verified Buyer
Was this review helpful to you?
Good quality
Easy installation
JJ
Michigan
7 years ago
Verified Buyer
Was this review helpful to you?
Astro-250SS 3-Speed Stainless Steel Circulator, 0-18 GPM
Great product, fantastic delivery and packaging!
Grubby
Springfield, Ohio,
9 years ago
Verified Buyer
Was this review helpful to you?
good value for the money
Good alternative to bronze/brass body pumps for domestic hot water, appears to have been redesigned from the older astro versions that were made fro Armstrong by Wilo hopefully they eliminated the problem older versions had with the impellers failing.
Slumplumber
Chicago, Illinois
10 years ago
Verified Buyer
Was this review helpful to you?
Yes
Well made
N/A
McCalla Al.
10 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: what is the amps on this pump
Asked by bob 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffOn the highest speed the full load draw is 0.98 Amp.
Was this review helpful to you?
Q: Does this replace the Armstrong Astro 50 (not 50B) I've been looking for aArmstrong Astro 50 All over the web, haven't been able to find one.I'm pretty sure they have done away with this model and was wondering if this is Dave replacement I need.If not could you please help me Find the correct replacement For my specs.My Armstrong Astro 50: amp: 0,95 watt: 110 Rpm: 2800 115v-60hz working pressure140psi Max max water temperature230°F(110°c). (p.s) If not can you please direct me to the right pump to order Thank you!
Asked by Steven 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe Astro 50 is replaced with the Astro 250. The Stainless Steel is required for potable water.
Was this review helpful to you?
Q: confused--you call it SS but later say it's made of cast iron and is intended for closed systems--what is it SS or cast iron?
Asked by Frank 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe 110223-308 is a stainless steel pump. The stock photograph shown is the cast iron model.
Was this review helpful to you?
