Description
Features:
  • True mechanical spring return - the most reliable fail-safe

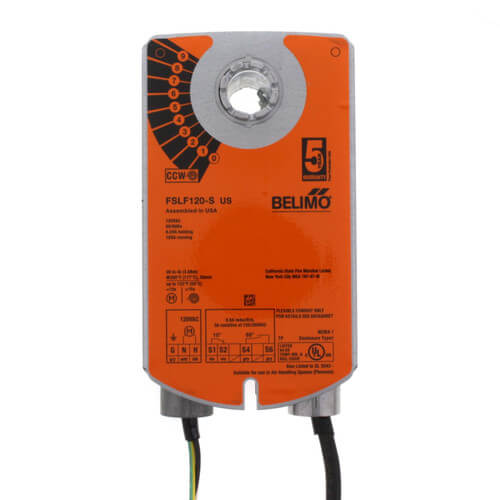

  • Reverse mount for clockwise or counterclockwise fail-safe
  • Check damper position easily with clear position indicator
  • Overload-proof throughout rotation
  • Easy mechanical stop to adjust angle of rotation (add ZDB-AF2 US accessory/FSAF and FSNF only)
  • Built-in auxiliary switch is easy to use, offers feedback or signal for additional device (-S models)
  • Manual override crank speeds installation (only on FSAF models)
  • The same 100% steel toothed cold-weld clamp that Belimo uses on all actuators is used on the FS Series. No slipping on damper shafts will occur
  • Tested at high torque load for a minimum of 20,000 cycles per UL555(S)
  • Reliable DC motor - low current draw
  • Permanently lubricated gears
  • FSNF and FSLF actuators meet Uniform Building Code (UBC) requirements
  • Belimo actuator is silent when holding at end position

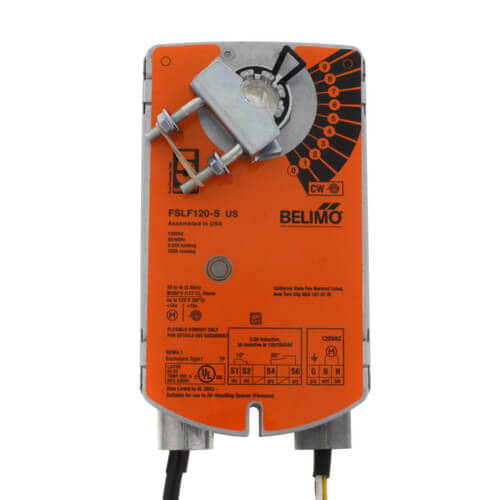

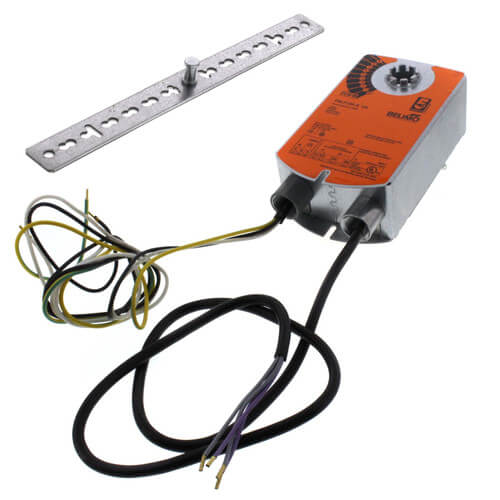

The type FSLF spring-return actuator is intended for the operation of smoke and combination fire and smoke dampers in ventilation and air-conditioning systems. The actuator will meet requirements of UL555 and UL555S when tested as an assembly with the damper and will meet requirements of UBC for 15 second opening and closing.

Square footage of damper operated will depend on make and model and the temperature required.
Hide Description
Manuals (1)
Specs
Fail Safe Mode:

Spring Return

Actuator Type:

Proportional

Power Supply:

120 VAC

Torque:

30 lb-in

Running Time:

<15 Seconds (motor)

<15 Seconds (spring)

VA Rating:

18

Ambient Temperature:

32°F to 122°F (normal duty)

3 on/off cycles after 30 min at ambient temp of 350°F (safety duty)

Control Input Values:

On/Off

Auxiliary Switch:

2 SPST

Manual Override:

None

Warranty:

5-Year Limited Warranty

×
