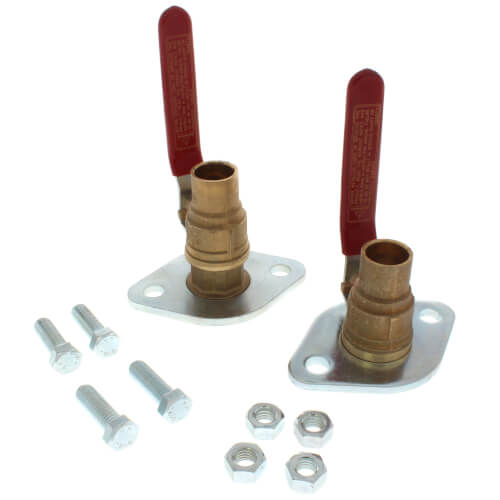

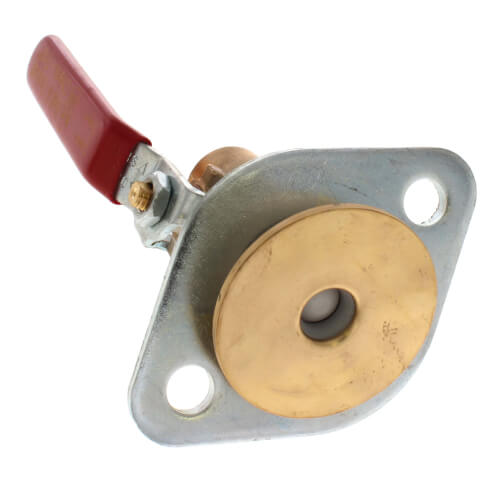

CTFS-3/4, 3/4" Sweat Check-Trol Isolation Flow Control Flange, Lead Free
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (4)
This item replaces: 101236
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Sweat Connection
3/4" Connection
Brass
3/4"
150 MAX PSI
200°F Max Temp
Description
–
The Check-Trol flange is a combination isolation valve, flow control valve, and companion flange for circulators. The
full port ball valve allows the circulator to be removed from the system without draining the system. The internal spring
check prevents gravity circulation. Free floating companion flange makes pump installation a snap.
Flow Control Valve
Prevents gravity circulation and flow in the wrong direction.
Isolation Valve
Allows for servicing or replacement of the circulator without draining the system.
Companion Flange
Free-floating companion flanges allow easy alignment for optimal handle positioning.
Another advantage of the Check-Trol is the minimal pressure drop, especially when compared to the losses that can be experienced when a check valve is installed internal to the circulator. The Check-Trol flanges are packaged with an isolation flange of the same size to create a pair. Capscrews and nuts are included.
**NOTE: See "User Guide" document below for a description of pump models applicable for this Check-Trol
Flow Control Valve
Prevents gravity circulation and flow in the wrong direction.
Isolation Valve
Allows for servicing or replacement of the circulator without draining the system.
Companion Flange
Free-floating companion flanges allow easy alignment for optimal handle positioning.
Another advantage of the Check-Trol is the minimal pressure drop, especially when compared to the losses that can be experienced when a check valve is installed internal to the circulator. The Check-Trol flanges are packaged with an isolation flange of the same size to create a pair. Capscrews and nuts are included.
**NOTE: See "User Guide" document below for a description of pump models applicable for this Check-Trol
Specs
–
| Size: | 3/4" |
|---|---|
| Features: | Integral Check Valve |
| Connection Size: | 3/4" |
| Connection Type: | Sweat |
| Material: | Brass |
| Max Pressure (PSI): | 150 |
| Max Temp (F): | 200°F |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
2 Questions2 Questions
Q: Is this valve sold as a pair? The picture for this one shows only the outlet valve with the check valve, others sizes and styles show both the inlet and outlet valve. The submittal seems to say they are sold in pairs.
Asked by Steve W 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, the CTFS-3/4 sweat isolation control valve is sold as a pair.
Was this review helpful to you?
Q: The flange looks like stainless steel, is it?
Asked by doug 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffstandard steel
Was this review helpful to you?
