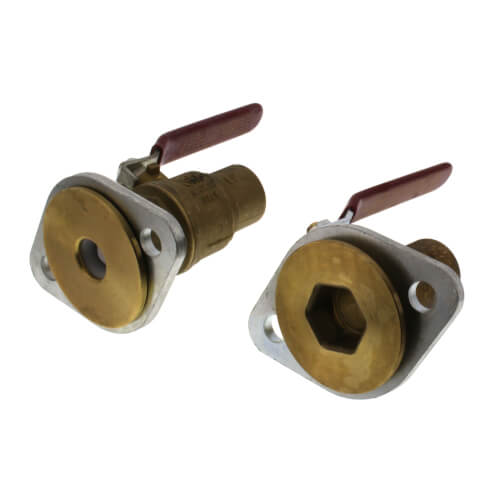

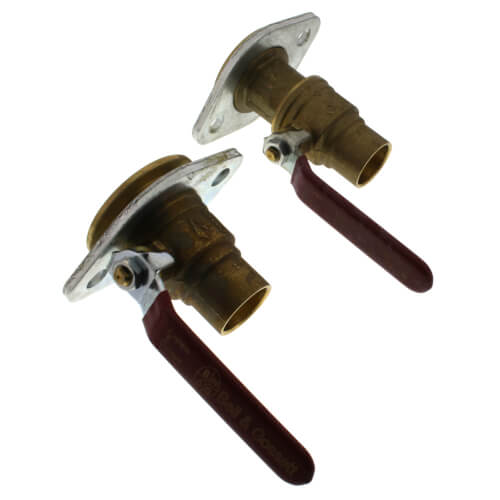

CTFS-1, 1" Sweat Check-Trol Isolation Flow Control Flange Set, Lead Free
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$118.66 each
In Stock
Get 4 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
This item replaces: 101237
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Sweat Connection
1" Connection
Brass
1"
150 MAX PSI
200°F Max Temp
Description
–
The Check-Trol flange is a combination isolation valve, flow control valve, and companion flange for circulators. The
full port ball valve allows the circulator to be removed from the system without draining the system. The internal spring
check prevents gravity circulation. Free floating companion flange makes pump installation a snap.
Flow Control Valve
Prevents gravity circulation and flow in the wrong direction.
Isolation Valve
Allows for servicing or replacement of the circulator without draining the system.
Companion Flange
Free-floating companion flanges allow easy alignment for optimal handle positioning.

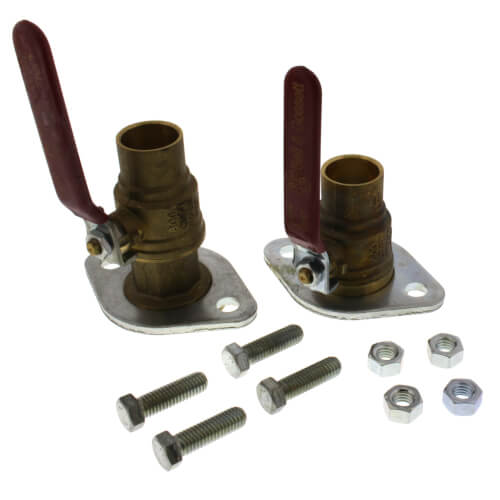

Another advantage of the Check-Trol is the minimal pressure drop, especially when compared to the losses that can be experienced when a check valve is installed internal to the circulator. The Check-Trol flanges are packaged with an isolation flange of the same size to create a pair. Capscrews and nuts are included.
**NOTE: See "User Guide" document under the Manuals tab for a description of pump models applicable for this Check-Trol
Flow Control Valve
Prevents gravity circulation and flow in the wrong direction.
Isolation Valve
Allows for servicing or replacement of the circulator without draining the system.
Companion Flange
Free-floating companion flanges allow easy alignment for optimal handle positioning.
Another advantage of the Check-Trol is the minimal pressure drop, especially when compared to the losses that can be experienced when a check valve is installed internal to the circulator. The Check-Trol flanges are packaged with an isolation flange of the same size to create a pair. Capscrews and nuts are included.
**NOTE: See "User Guide" document under the Manuals tab for a description of pump models applicable for this Check-Trol
Specs
–
| Features: | Integral Check Valve |
|---|---|
| Connection Size: | 1" |
| Size: | 1" |
| Connection Type: | Sweat |
| Material: | Brass |
| Max Pressure (PSI): | 150 |
| Max Temp (F): | 200°F |
