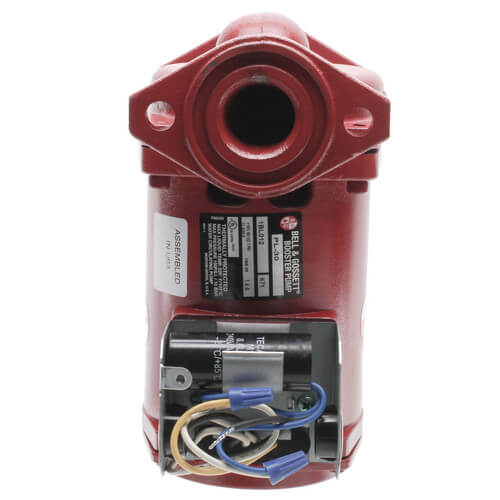

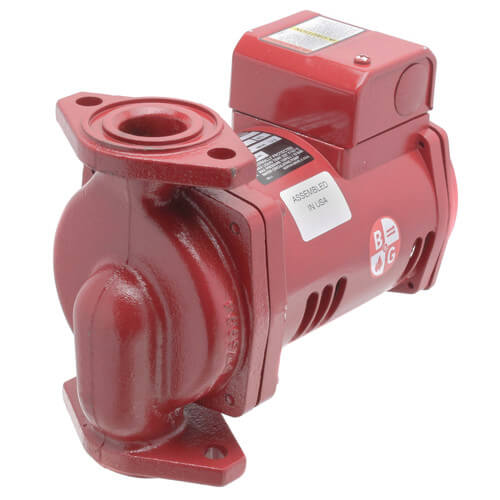

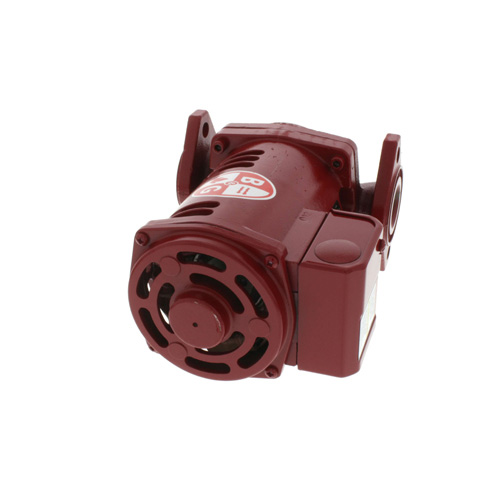

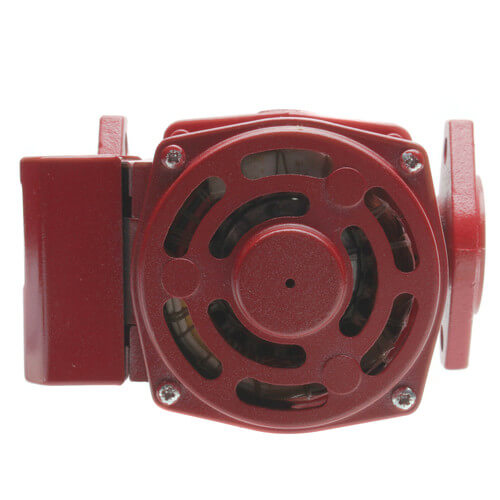

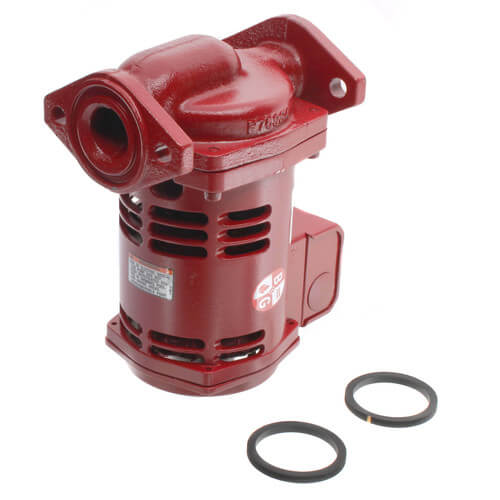

PL-30, 1/12 HP Cast Iron Booster Pump
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/12 HP
Flanged x Flanged Connection
30 MAX GPM
150 MAX PSI
Cast Iron
Description
–
The Series PL close coupled booster pumps are
specifically designed for quiet operation in hydronic,
radiant and geothermal heating and cooling
systems.
Features:
Features:
- B&G's powerful, dry-motor design delivers exceptional performance
- 25% more efficient than competition
- Precision-machined and balanced alloy steel rotor for superior performance. Series-PL
- Solid "Stiff-Shaft" design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
- XL-11 Precision-Crafted Bearing System
- Permanently oil lubricated
- Completely maintenance free
- Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
- Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
- Double sided stainless steel neck ring for optimum efficiency
Specs
–
| Application: | Heating |
|---|---|
| Horse Power: | 1/12 |
| Material: | Cast Iron |
| Type: | Booster Pump |
| Max Pressure (PSI): | 150 |
| Max Temp (F): | 225°F |
| Phase: | 1 |
| Hertz: | 60 |
| Voltage: | 115V |
| RPM: | 2650 |
| Amperage: | 1.4 |
| Max Flow (GPM): | 30 |
| Flow Range (GPM): | 0-30 |
| Max Head (Ft): | 25 |
| Head Range (ft.): | 0-25 |
| Connection Size: | 3/4" 1" 1-1/4" 1-1/2" |
| Connection Type: | Flanged x Flanged |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Horse Power
Material
Type
Max Pressure (PSI)
CURRENT ITEM
Heating
1/12
Cast Iron
Booster Pump
150
You May Also Need
7 Replacement Parts
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.67 out of 9 reviews
100% would recommend this product
5 star
89%
4 star
0%
3 star
0%
2 star
11%
1 star
0%
Showing 1-9 of 9 reviews
Correct part delivered quickly
My original pump was 16 or 16 years old and had been getting louder for a few years. It developed a new, more severe whine and I found and ordered a new one from Supply House. The replacement was identical to the original and was delivered on time. I had gotten used to how loud the old pump was and can barely hear the new one. It works as expected, these pumps are more expensive but extremely reliable. 16 winters pumping 180 degree water from my stove to the house every time my furnace called for heat seems pretty reliable to me.
Ted Stevens
Missouri
4 months ago
Verified Buyer
Was this review helpful to you?
I would buy the product again
The product was perfect fit received it in timely manner got rid of my noise problem with old pump . Great success
Degs
Norway Michigan
3 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
First pump was defective
The bearings were shot. Loud after a few weeks. Had to trade-in for a replacement. Maybe I was send a pump that had been returned.
Quality control?
rich
chicago
3 years ago
Verified Buyer
Was this review helpful to you?
Supplies
Parts were in stock and shipped promptly.
Beard
Cleveland, Oh
4 years ago
Verified Buyer
Was this review helpful to you?
Product was as described and I got it Super Fast!!
Supply house has the fastest shipping department period!! If they say it will be there tomorrow it will be there ! I've ordered several things from them always the right product and lightning fast delivery !!
Dog man
South Bend IN
4 years ago
Verified Buyer
Was this review helpful to you?
Great product and service!
The shipping is very quick and the items are packaged well. Very friendly support staff as well.
Mike D.
New Jersey
5 years ago
Verified Buyer
Was this review helpful to you?
I would purchase this again
Exact replacement, great price and service.
Joe
Georgia
7 years ago
Verified Buyer
Was this review helpful to you?
pl30 booster pump
Works perfect. The exact replacement I needed. Fast shipping. Great customer service.
Tim
Gordon, Nebraska
7 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
Works amazing. Our old pump was making a loud noise after running for about 7 years. So that right there tells you that it's worth the money and a great quality product!!
Brittany
Michigan
8 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Does this pump function in either vertical or horizontal position?
Asked by Mtc. Man 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe pump body can be either vertical or horizontal, however the motor shaft should be horizontal, with the junction box on top.
