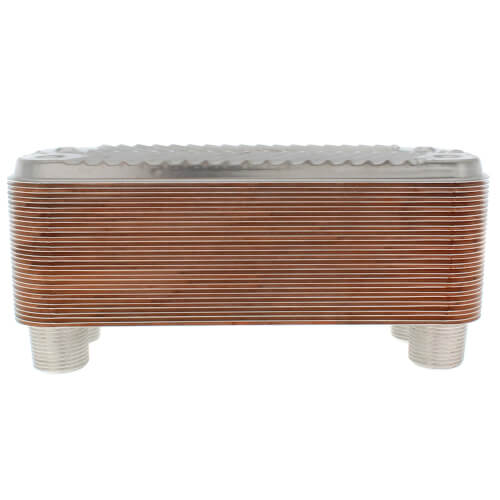

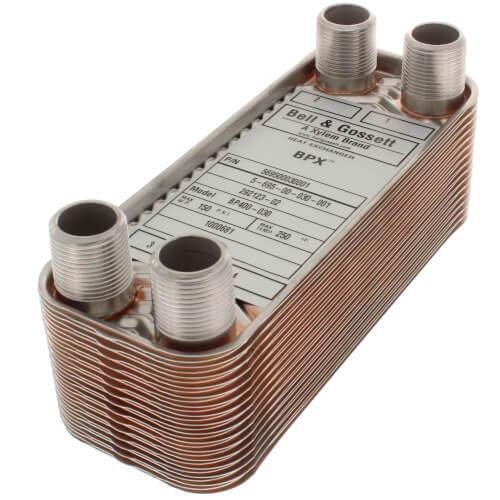

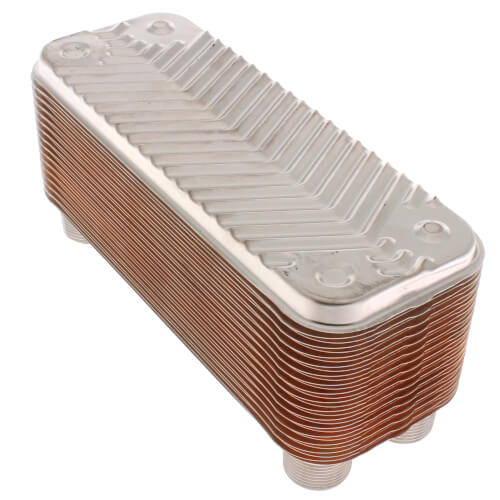

175,000 BTU/Hr Low Pressure BPX Brazed Plate Heat Exchanger
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$401.25 each
In Stock
Get 14 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
8-1/5"
435 MAX PSI
3-7/10" Depth
Male Thread Type
175000 Max BTUs
-310°F - 450°F
Description
–
B & G type Low Pressure BPX brazed plate heat exchangers offer the highest level of thermal efficiency and durability in a compact, low cost unit. These are ideal for applications that require 150 PSIG or less. The corrugated plate design provides very high heat transfer coefficients, resulting in a more compact design. The unit's stainless steel plates are vacuum brazed together to form a durable, integral piece.
Technical Specifications:
Applications:
Radiant Floor Heating:
Snow Melt Application:
Domestic Water Heating:
Technical Specifications:
- BTU/Hr: 175,000
- Design Pressure: 435 PSI
- Design Temperature: -310°F min, 450°F max
- Number of Plates: 30
- Channel Plates: Stainless Steel ASTM 316L
- Brazing Material: Copper
- Weight (lbs): 2
Applications:
Radiant Floor Heating:
- Boiler Side: Water 180 Degree F Supply, 160 Degree F Return, Flow: 18.0 GPM, Pressure Drop: 7.1 PSI
- Radiant Floor Side: Water 120 Degree F Supply, 100 Degree F Return, Flow: 17.7 GPM, Pressure Drop: 6.5 PSI
Snow Melt Application:
- Boiler Side: Water 180 Degree F Supply, 160 Degree F Return, Flow: 18.0 GPM, Pressure Drop: 7.8 PSI
- Snow Melt Side: 40% P.G. 130 Degree F Supply, 100 Degree F Return, Flow: 12.5 GPM, Pressure Drop: 4.2 PSI
Domestic Water Heating:
- Boiler Side: Water 180 Degree F Supply, 130 Degree F Return, Flow: 7.2 GPM, Pressure Drop: 1.4 PSI
- Domestic Water Side: Water 50 Degree F Supply, 140 Degree F Return, Flow: 3.9 GPM, Pressure Drop: 0.4 PSI
Specs
–
| Width: | 3-1/10" |
|---|---|
| Height: | 8-1/5" |
| Max Pressure (PSI): | 435 |
| Application: | Heating |
| Depth (Inches): | 3-7/10" |
| Type: | Radiant Heat DHW Snow Melt |
| Thread Type: | Male |
| Number of Plates: | 30 |
| Brazing Material: | Copper |
| BTU Output: | 175000 |
| Cover Plate Material: | Stainless Steel |
| Temperature Range (F): | -310°F - 450°F |
| Min Temp (F): | -310°F |
| Thread Size: | 3/4" |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Number of Plates
CURRENT ITEM
30
You May Also Need
Product Reviews
4.6 out of 5 reviews
100% would recommend this product
5 star
60%
4 star
40%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Works like a champ
It's amazing that something this size can move so much heat - even I was a little skeptical.
The only downside which is very minimal and possibly a feature they would add is a couple of ears or tabs or something to support or attach it other than just the pipes themselves. The concern is that it will transfer vibrations right into the exchanger. It is a very minimal concern and not something to change a purchasing decision it would just be nice to have.
TA
Greenwich Connecticut
3 years ago
Verified Buyer
Was this review helpful to you?
I recommend this item
Works great for my heated floor
Cliffy
Malta Ohio
6 years ago
Verified Buyer
Was this review helpful to you?
Yup I'd buy it sgain
I use it to preheat going to the water heater from my boiler. Works great and great flow. Water heater hasn't kicked on once sense.
DJ
Farm country nu
7 years ago
Verified Buyer
Was this review helpful to you?
Nice product.
Only wished it had mounting bolts attached
Po
Pittsburgh
8 years ago
Verified Buyer
Was this review helpful to you?
Excellent way to heat a hot tub!
I like the small size. Very efficient.
The heat exchanger was used to heat a hot tub with an outside furnace. Worked very well!
Thank you, Don Davis
Don
Saxton, PA
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Is it compatible with 3/4" NPT female thread?
Asked by ilya 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, the connections on this are 3/4" male NPT and would be compatible with 3/4" female threads.
Was this review helpful to you?
Q: what is the thread type for BP400-30LP? -NPT, BSP, etc?
Asked by ilya 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffStandard NPT connections.
