L250 has been discontinued
Discontinued June 3, 2023
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces: L250MG
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:

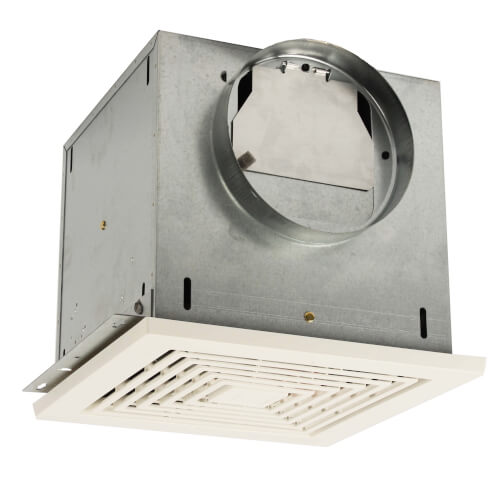

L250 Ceiling Mount Ventilation Fan, 8" Round Duct (259 CFM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
259 CFM
8"
2.2 Sones
12-1/4" x 12-1/4" x 11-3/4"
14" x 14"
1 Year Warranty
Description
–
Note: This product is a suggested replacement for L250MG. The metal grille MG1 is sold separately.
Features:
Features:
- 259 CFM, 2.2 Sones (AMCA), horizontal ducting
- Can be ducted horizontally or vertically (259 CFM, 2.7 Sones with vertical ducting). In-line ducting available with separate adapter
- 8" round duct connector
- Low profile, white polymer grille
- Single, impact-resistant centrifugal blower wheel
- 20 gauge galvanized steel housing
- UL Listed for use over bathtubs and showers when connected to a GFCI branch circuit
- Use Broan Electronic Variable Speed Control to adjust blower speed and sound level (available separately)
- Housing Dimension: 12-1/4" x 12-1/4" x 11-3/4"
- Grille Dimension: 14" x 14"
Specs
–
| Product Type: | Ceiling Mount Ventilation Fan w/ Round Duct |
|---|---|
| Duct Size: | 8" |
| Voltage: | 120v |
| Air Flow Capacity (CFM): | 259 |
| Hertz: | 60 |
| Sone: | 2.2 |
| Housing Dimension: | 12-1/4" x 12-1/4" x 11-3/4" |
| Grille Dimension: | 14" x 14" |
| Amperage: | 2.1 |
| Ducting: | Horizontal Vertical |
| Wattage: | 166 |
| Grille Finish: | White |
| Nominal RPM: | 830 |
| Warranty: | 1 Year |
| Grille Material: | Polymeric |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
16 Replacement Parts
Wire Harness, S97006039
SKU: S97006039
BroanScrew - #10-32 x 1/2"
SKU: S99150471
BroanWhiz Nut - 1/4"-20
SKU: S99260477
BroanIsolator Bushing / Motor Grommet
SKU: S99100491
BroanHousing Assembly, S97014726
SKU: S97014726
BroanMotor Mounting Nut - #8-32
SKU: S99260558
BroanSlotted Pan Head Screw - #10-16 x 7/8"
SKU: S99150591
BroanMounting Bracket, S97014728
SKU: S97014728
BroanMotor Mounting Washer - #8 x 5/8"
SKU: S99250959
BroanSide Insulation
SKU: S99500391
BroanScrew - 8B x 1/4"
SKU: S99150415
BroanBlower Scroll Housing
SKU: S97014775
BroanDamper Assembly - 8" Round
SKU: S97014761
BroanBlower Assembly, S1108441
SKU: S1108441
BroanStrain Relief Bushing
SKU: S99400035
BroanPolymeric Fan Grille
SKU: S99110807
Broan
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
