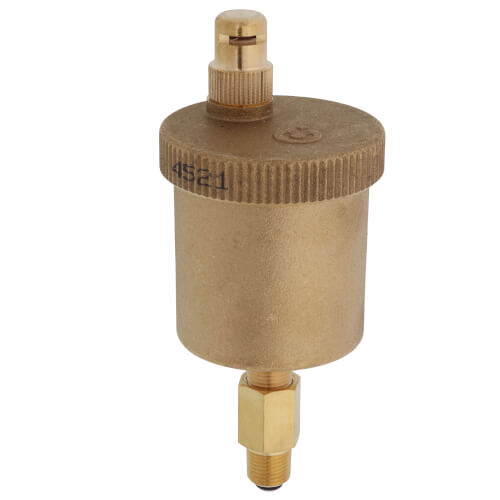

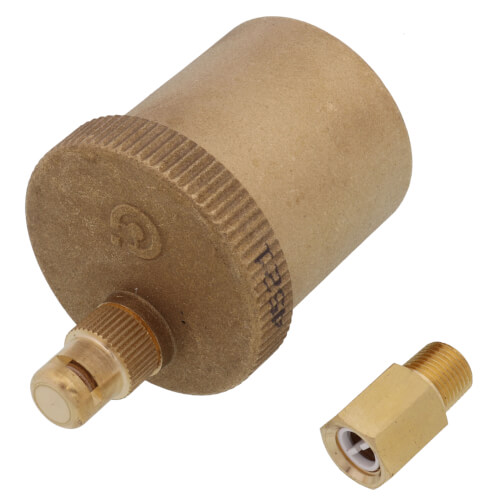

1/8" Male NPT MINICAL Automatic Air Vent w/ Service Check Valve and Hygroscopic Anti-Drip Cap
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$19.34 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (4)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/8"
Hydronic (Water)
230°F Max Temp
150 MAX PSI
Male Threaded Connection
Straight
Description
–
MINICAL float type automatic air vents are designed to vent released air from the water while being heated. They are used on manifolds or pipes in sealed heating systems. MINICAL is a standard size air vent that will discharge up to 1.75 SCFM. This MINICAL model is equipped with a hygroscopic safety cap. Cellulose fiber discs serve as the redundant seal. Their volume increases by 50% wet which "causes" the discharge vent to close. This MINICAL model is also equipped with a service check valve which facilitates maintenance operations by shutting off the water flow when the air vent is removed and also allows an easy replacement of the air vent without purging the system.
Features:
Specifications:
Features:
- Equipped with Hygroscopic Anti-Drip Cap
Specifications:
- Product Type: Automatic air vent with service check valve
- Body Material: Brass
- Max. working pressure: 150 psi
- Max. discharge pressure: 40 psi
- Max. discharge rate: 1.75 SCFM
- Max. working temperature: 230°F
- Size: 1/8"
- Connections Type: MNPT
Specs
–
| Product Type: | Air Vent |
|---|---|
| Size: | 1/8" |
| Connection Type: | Male Threaded |
| Max Pressure (PSI): | 150 |
| Max Temp (F): | 230°F |
| Body Pattern: | Straight |
| System Type: | Hydronic (Water) |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
Solid Product, Great Price, Fast Delivery
Excellent quality, precision machining, great price and delivery from Supply House. Just installed so can't comment on longevity but expect the check valve to be a game changer - easy to swap in a future replacement instead of bleeding system.
Rock
Washington DC
3 years ago
Verified Buyer
Was this review helpful to you?
Easy installation and works great
I purchased 3 of these so I could install one in each of the zones of my boiler system. Luckily for me there were already manual bleed valves in the right location in each zone so it was just a matter or taking the manual ones one and putting these in their place, which took about 30 minutes. I wish I did this 20 years ago because within about 4 hours of the boiler running I no longer heard air in the system and still after a month boiler is air free.
Imamaster
Chicago, Il
4 years ago
Verified Buyer
Was this review helpful to you?
Easy to install, works very well
The hygroscopic valve takes the guess work out of purging air and having to access the valve to open the cap
Bob the builder
Colorado Springs
4 years ago
Was this review helpful to you?
Hygroscopic cap and check valve eases use
No more guessing how much to open the cap when purging, especially when you have to squeeze through a jungle of zone piping. The check valve makes swapping it out every few years very quick and easy.
Bob
Colorado Springs
4 years ago
Was this review helpful to you?
