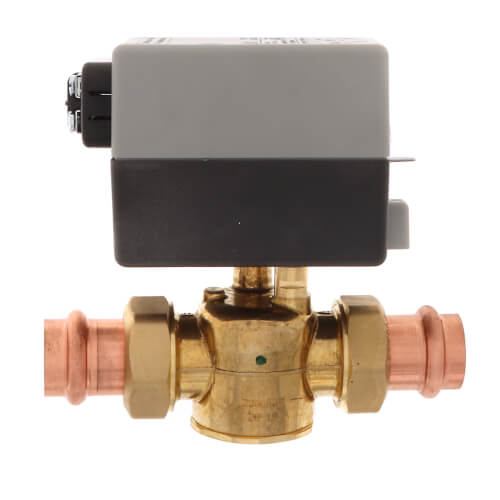

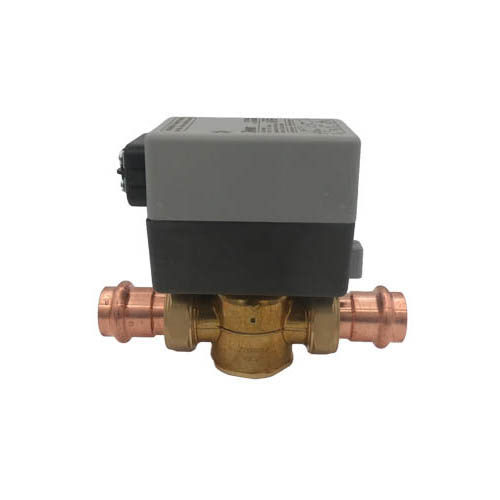

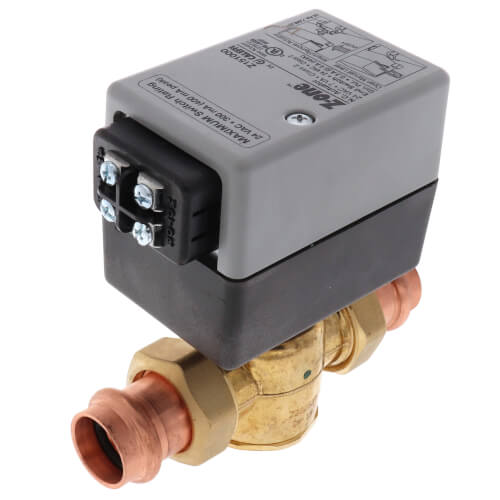

Z5 3/4" Press 2-Way Zone Valve w/ (2) 3/4" Press Fittings 7.5 Cv (24V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$154.20 each
In Stock
Get 84 Wed, Jun 25
Order by today, receive Wednesday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way, Straight-Through
Press Connection
7.5 Cv
3/4"
24V
Normally Closed
Description
–
Includes (2) 3/4" press fittings (NA16265).
- Screw terminal connections

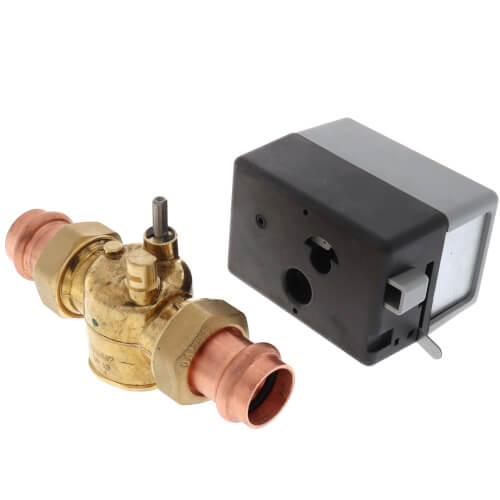

- A snap on actuator allows for fast installation and easy replacement with a convenient in-line push button.
- A gear ratio of 21:1 in the actuator increases torque for high close-off pressure and increases closing time to reduce water hammer.
- Compact design provides quick and easy installation, the Z-one valve fits perfectly inside baseboards and fan coils. Available with choice of NPT, sweat and press fittings for ease of installation and maintenance.
- Hermetically sealed end switch in 24V actuators requires no minimum current load allowing multiple end switches connected in parallel to zoning panel.
- Suitable for all types of systems - made with materials compatible with chilled or hot water up to 240°F, 15 psi steam, and open or closed systems.
- Low power consumption allows up to five valves per 40 VA transformer.
Specs
–
| Size: | 3/4" |
|---|---|
| Position: | Normally Closed |
| Voltage: | 24V |
| Flow Capacity (Cv): | 7.5 |
| Connection Type: | Press |
| Max Temp (F): | 240°F |
| Body Pattern: | 2-Way Straight-Through |
| End Switch: | Yes |
| Max Close-Off PSI: | 20 psi |
