Intermittent Duty Oil Burner Primary Control (45 sec TFI)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$65.00 each
In Stock
Order by today, receive Tuesday
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–

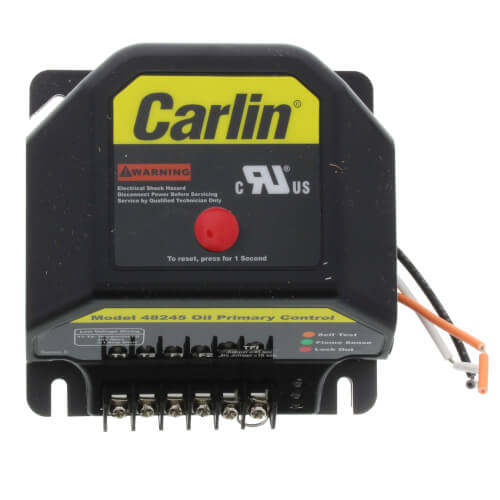

48245 E Series Oil Primary Control (Optional 15 or 45 Sec. TFI. Constant/Intermittent Duty with Smart Ignition) Direct replacement for 3-wire primary controls (ex. Honeywell R8184G)
- Intermittent Duty Ignition 45 Second Trial for Ignition (TFI)
- Red LED Lockout Indicator
- Thermostat/aquastat Compatible SMC (Safety Monitoring Circuit) Technology
- Power Input (From Limit Circuit) 120 vac, 60 Hz, 10 VA Motor Load 5 FLA/60 LRA Ignitor Load 120 vac, 60 Hz, 500 VA
- Operating Temperature Limits + 32°F to + 140°F
- Storage Temperature Limits -40°F to +185°F
- Thermostat Anticipator Current 0.2 A, AC Cad Cell Resistance with Flame R < 1500 OHMS
Specs
–
| Product Type: | Oil Control |
|---|
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.64 out of 11 reviews
91% would recommend this product
5 star
91%
4 star
0%
3 star
0%
2 star
0%
1 star
9%
Customer Images
Most Liked Positive Review
Did what I wanted

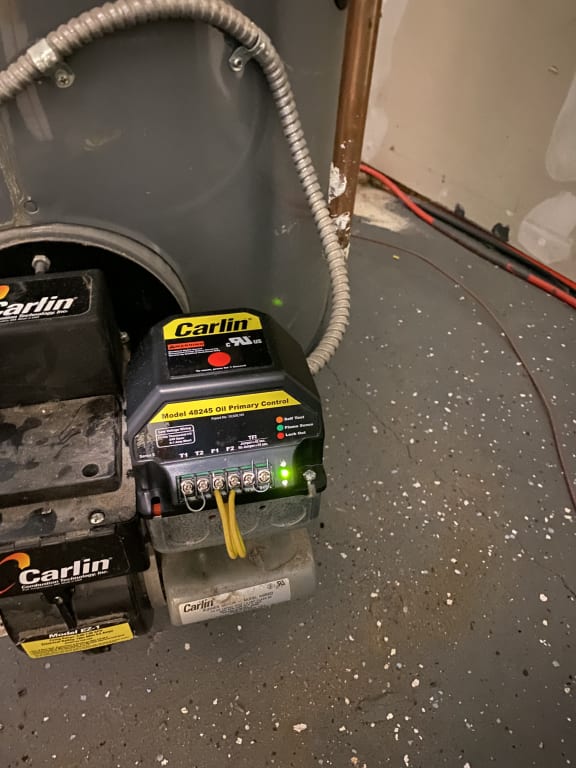

I replaced an older version of the same control. This one has more LEDs and an option to not power the igniter when not needed. I did not want to spring for one of the higher priced units with more diagnostics and this one fit my needs. I was having intermittent momentary burner shutdowns as if the cad cell was faulty but replacing the eye did not change the problem. I assumed it was the control mishandling the cad cell signal. I guess that was correct as the boiler has run fine since the control was installed.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would not buy this product if I had a choice.
It was working for a year after installation and then stoped working
Showing 1-10 of 11 reviews
I continue buying this control
Reasonably priced let's you know when the cad cell eye sees the flame.
willy
Windham CT
6 months ago
Verified Buyer
Was this review helpful to you?
I would not buy this product if I had a choice.
It was working for a year after installation and then stoped working
Mish
NY
10 months ago
Was this review helpful to you?
fit like good. exactly like the clean burn i replaced and at
got this to replace the one on our clean burn CB3500. it was a direct fit
Goob
west Ga USA
1 years ago
Verified Buyer
Was this review helpful to you?
I have bought this item a few times
Used for oil burners waste oil anything oil that needs a controller A+
Snappy
Cint ohio
3 years ago
Verified Buyer
Was this review helpful to you?
Perfect!
Just the part I needed, great price, super fast shipping!!
Dr d
Ohio, OH
3 years ago
Verified Buyer
Was this review helpful to you?
the unit works fine very happy with perches
would buy again and tell others
dave
meyersdale pa
4 years ago
Verified Buyer
Was this review helpful to you?
Did what I wanted
I replaced an older version of the same control. This one has more LEDs and an option to not power the igniter when not needed. I did not want to spring for one of the higher priced units with more diagnostics and this one fit my needs. I was having intermittent momentary burner shutdowns as if the cad cell was faulty but replacing the eye did not change the problem. I assumed it was the control mishandling the cad cell signal. I guess that was correct as the boiler has run fine since the control was installed.
Mike in PA
Pottstown, PA
4 years ago
Verified Buyer
Was this review helpful to you?
Perfect Fit

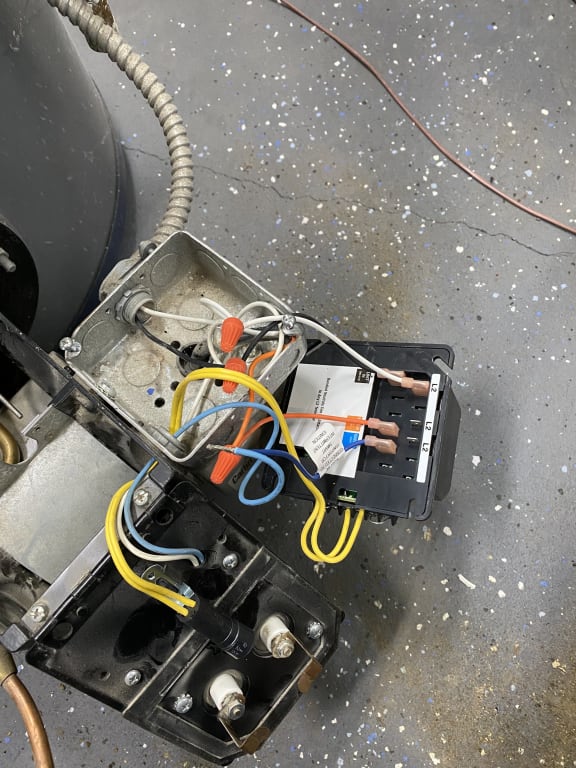

Perfect fit. It came wired with connectors. Less than 5 minutes to install
Captin
Maine
4 years ago
Verified Buyer
Was this review helpful to you?
i would buy agian
works great
john
frankfort, ky
5 years ago
Verified Buyer
Was this review helpful to you?
Yes
Perfect upgrade to the existing controller.
Easy to install . Very well built
Pete
New York
5 years ago
Verified Buyer
Was this review helpful to you?
