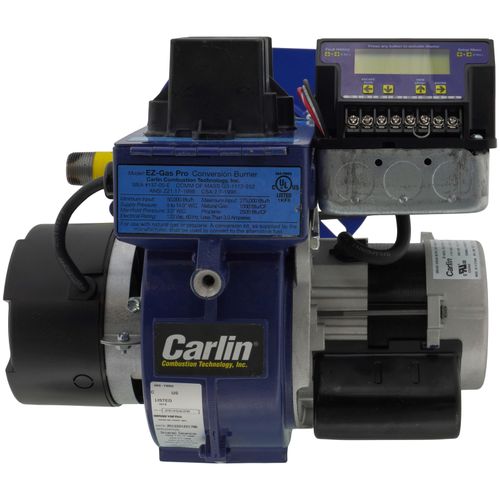

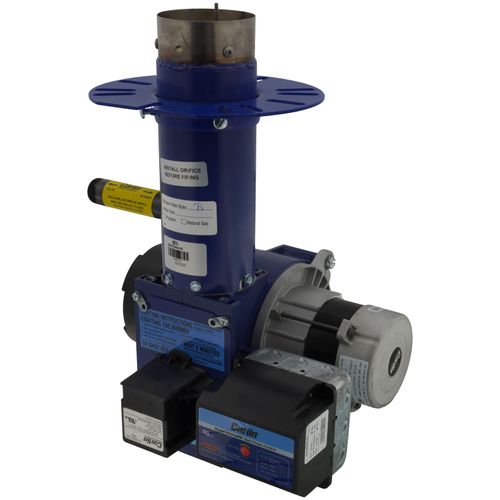

50,000-275,000 BTU EZ Gas Pro Conversion Burner w/ 10" Air Tube
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$965.86 each
In Stock
Get 14 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (3)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Propane, Natural Gas
Description
–
Overview:
The EZGas Pro burner converts existing oil-fired boilers, furnaces, and water heaters to natural gas or propane at a fraction of the cost of replacing the appliance. This natural gas converter comes factory packed with combustion control and gas fuel train. Unlike other conversion burners, it does not require a refractory liner – fires with or without a combustion chamber. Proven in extensive boiler and furnace testing, these gas conversion burners will meet your needs for residential gas burning applications. If you have any questions about this or any other oil to gas conversion burner, please contact us at your convenience.
Specifications:
The EZGas Pro burner converts existing oil-fired boilers, furnaces, and water heaters to natural gas or propane at a fraction of the cost of replacing the appliance. This natural gas converter comes factory packed with combustion control and gas fuel train. Unlike other conversion burners, it does not require a refractory liner – fires with or without a combustion chamber. Proven in extensive boiler and furnace testing, these gas conversion burners will meet your needs for residential gas burning applications. If you have any questions about this or any other oil to gas conversion burner, please contact us at your convenience.
Specifications:
- 50,000 to 275,000 Btuh
- Fuels: Natural Gas or Propane Gas
- Maximum Supply Pressure: 14 inches w.c.
- Minimum Supply Pressure: 5.0 inches w.c.
- Manifold Pressure: 3.5 inches w.c.
- Carlin 60200FR Microprocessor Control
- 4 sec. Trial for Ignition (TFI)
- 1.3 Sec. FFRT
- Pre-purge and post-purge
- Serviceman Reset Protection
- Latch-up after three consecutive lockouts
- Interrupted Duty Ignition
- Recyle on Flame Failure
- Power: 120 vac, 60Hz, 1-Phase
- Current: Approximately 2.0 Amps
- Limit Circuit Input: 120 vac, 60 Hz
- Motor: 1/15 HP, 3450 RPM, 60 Hz
- Motor Frame: 48 Frame, “M” Flange
- Fuel Valve Power: 120 vac, 60 Hz
- Ignition: Carlin Model 41800 Solid State Electronic Ignition
- Ignition Voltage: 9,000 volts
Specs
–
| Product Type: | Burner |
|---|---|
| BTU Range: | 50,000 to 275,000 BTU |
| Fuel Type: | Propane Natural Gas |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.84 out of 19 reviews
100% would recommend this product
5 star
89%
4 star
5%
3 star
5%
2 star
0%
1 star
0%
Customer Images
Most Liked Positive Review
A must for switching from oil to gas
This burner came with everything you need, defuser plates, air bands, and gas nozzle that you just drill. Big fan of the primary control with the display, your able to adjust everything. Just follow the guidelines listed in the included book, then use your combustion analyzer for the rest. Please note you Must purchase a double acting barmometric damper, and a vent spill switch, both by field controls. Overall if you want to convert your oil boiler to gas, this is the burner for you.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Haven't installed it into the boiler yet but I did test it.
My main beef is that the gas line must enter on the left side. Another website said it was reversible so I bought it thinking that it was. Well, it is, if you're willing to void the warranty and modify it some. Real shame Carlin doesn't make feeding from either side easy! Carlin's orifice tube is pretty crude, Beckett looks to have a much better design for their orifice. The firmware in the controller makes you go into the setup mode in order to see the "Burn Time" (Valve on) hours. I'd rather that be available without having to enter the setup mode. Unless you have more than 3-4" of air tube insertion length be prepared for the motor to stick out an extra 6" more than the old oil burner. I'll be installing it into a Tarm 502 boiler now that my 30yr wait for natural gas service is over.
Showing 1-10 of 19 reviews
Would buy again
Very easy fit. Easy set up. Works well customer happy! T ch support tool 2 min to answer
Dakota
Branson MO
6 months ago
Was this review helpful to you?
Great reliable burner with complete install package
I used this conversion burner as an exact replacement for an over 10 year old conversion burner. It was an exact replacement and was easy to install. Everything I needed was included and the shipping was fast (2 days)!
Rich
Manhasset, NY
7 months ago
Verified Buyer
Was this review helpful to you?
Easy set up

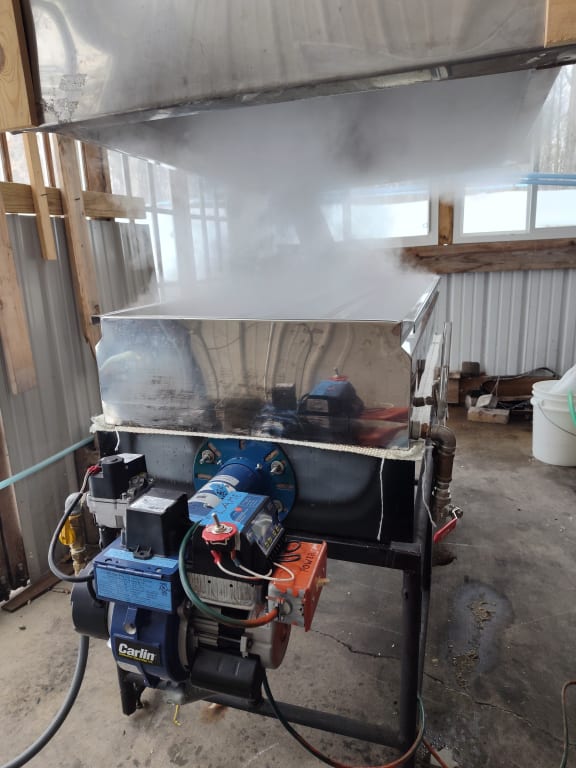

Cooking maple syrup with a 2'x4' evaporator with a Devided Flat pan .
I bought this so I can use the low pressure LP from the house's 1000 gal tank. It's working great. Exactly what I needed.
Airhead
Mich
1 years ago
Verified Buyer
Was this review helpful to you?
Very good deal
Change to diesel burner a this gas LP burner. And so happy. Work smooth and Quick heathing. My costumer happy and I to. Full recommend
Serva
Miami
1 years ago
Verified Buyer
Was this review helpful to you?
The Company I work for..
I personally have installed over 15 of these burners and NEVER ( Knock wood) an issue. My only gripe is the gas inlet pipe should be designed to go left or right. If you alter this obviously you void the warranty. But it is one heck of a great burner quick and easy install.
Taino871
Northern New Jersey
1 years ago
Was this review helpful to you?
I would buy from Supply House again!
I bought a Carlin Ez Pro Burner 10". It's a really nice quality product. Everything you need is in the box! Includes 2 air bands A,B & 9 slot diffuser plate and a field drilled orifice which you have to drill. I haven't hooked it up yet but I'm sure it's fine. Shipping was very fast!
702 Fab
Roy, WA
2 years ago
Verified Buyer
Was this review helpful to you?
Bought and installed. Works great saves me $$$
Don't forget your draft reg and spill switch to complete the install. Works great saves me money $$$.
Thunderbeard
CT
4 years ago
Verified Buyer
Was this review helpful to you?
Great tool to convert from oil to gas!!!
At $6 a gallon, fuel oil was no longer an option for me; I had seen the Carlin conversions, and figured It'd be a great way to convert without having all the work
of putting in a new gas boiler. As I had propane in the house already, it wasn't too big of a deal to run a 3/4" black pipe leg off the main feed for the EZ Gas Pro. My Smith boiler was in great shape, so the whole conversion took me about a full day. The installation instructions were first rate, so it was easy for this guy to set it up and get her tuned up. Well done, Carlin. And supply house too, for your FAST shipping!!!
I have 2 recommendations for improvements. 1st, offer a 8" tube, along with the 10" and 14" tube options. And 2nd, add a bung on the opposite side of the tube so you can install the gas valve optionally on the left or right side. Other than that, it is rock solid and keeping up quite warm.
Big Bob-O
Altamont, NY
4 years ago
Verified Buyer
Was this review helpful to you?
From oil heat to Gas heat does not get easier than this!
This coming March 4 2023 Bernie will be 5 years old. No problem works great! If you are a Good wrench its pretty much plug and play. I installed it my self. i am a Truck Auto mechanic class A. Saves you thousands of dollars because you can use your old boiler if it is in good condition. My boiler was only 12 years old. SupplyHouse.com is the best!!! Great price for that burner and they have people that know what they are doing. Price is so good i thought about buying a burner for spare lol. But Bernie is doing such a great job one is enough. I looked inside of the boiler with my remote camera everything is nice and clean because natural gas burns much cleaner than oil. Great burner Great Price Supply House Great company!
Ed.
Jamaica New York
4 years ago
Was this review helpful to you?
Great price
As advertised, it's a conversion burner gun.
It works, can't say much else.
Pete
New York
4 years ago
Verified Buyer
Was this review helpful to you?
