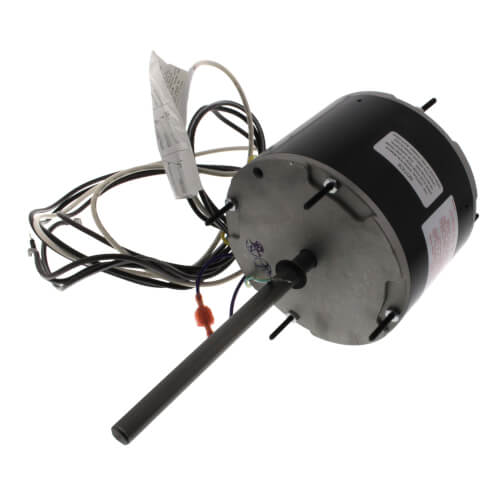

5-5/8" Multi-HP Motor w/ Ball Bearings - Economy Model (208-230V, 1075 RPM, 1/3, 1/6 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$106.61 each
In Stock
Get 86 Tomorrow, Jul 3
Order by 6PM, receive Tomorrow
MANUALS (1)
This item replaces: ORM5458, 3458
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075 RPM
Reversible
1/3, 1/6 HP
Extended Studs
2 Amps
Description
–
5-5/8" Multi-HP Motor w/ Ball Bearings - Economy Model (208-230V, 1075 RPM, 1/3, 1/6 HP)
Features:
Features:
- Centurys expanded line of 4-in-1 motors replace hundreds of the most popular 1/3, 1/4, 1/6 and 1/8 HP, 48-frame condenser fan motors currently installed with one simple connection.
- No capacitors to switch or complicated wiring diagrams to follow.
- Our 4-in-1 motors come in energy-efficient PSC designs, are rated for 1/3-1/8 HP, 208-230 Volt, 825 and 1075 RPM, with totally enclosed construction and are available in all angle sleeve bearing or rugged ball bearing designs.
- These 4-in-1 motors allow the service contractor to have the right motor for the job for quicker service calls. That means more calls completed per day
- Multi-application condenser fans
- Energy-efficient PSC design
- Available in dependable quiet sleeve bearing or double sealed ball bearings
- Mounts by belly band, thru bolts, or Rheem mounting holes, with screws supplied.
- Lead length 36 inch leads
- 60 degree C ambient
- Class B insulation
- Removable drain plugs each end
- UL and CSA approved
- 48Y Frame
- 60 HZ
- Automatic Overload
- Single Phase
- Totally Enclosed
- Capacitor: POC7.5
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/3 1/6 |
| Bearings: | Ball |
| Voltage: | 208/230V |
| Duty: | Air Over |
| RPM: | 1075 |
| Mount: | Extended Studs |
| Poles: | 6 |
| Rotation: | Reversible |
| Enclosure Type: | Totally Enclosed |
| Speeds: | 1 |
| Hertz: | 60 |
| Frame: | 48 |
| Amperage: | 2 |
| Phase: | 1 |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 140°F |
| Motor Orientation: | Any |
