Description

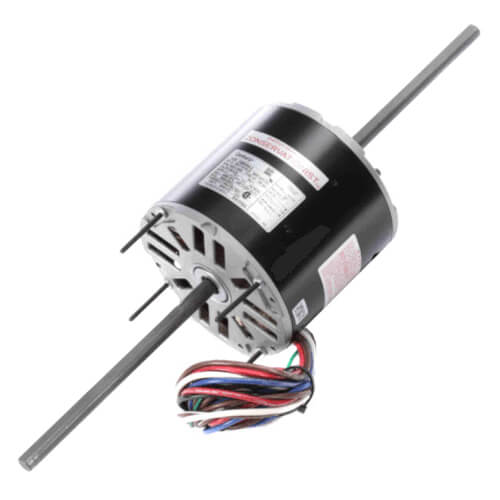

5-5/8" Double Shaft Fan/Blower Motor (208-230V, 1625 RPM, 1/2 HP)

Features:
  • Continuous air over
  • Energy efficient
  • Permanent Split Capacitor
  • Sleeve Bearing
  • 60 HZ
  • Automatic Overload
  • Single Phase
  • 48 Frame
Read more
Manuals (1)
Specs
Type:
Permanent Split Capacitor
Horse Power:
1/2
Bearings:
Sleeve
Voltage:
208-230v
Duty:
Air Over
Poles:
4
RPM:
1625
Mount:
Resilient Ring - Extended Studs
Rotation:
CCWLE
Enclosure Type:
Semi-Enclosed
Speeds:
3
Frame:
48Y
Amperage:
3.2
Phase:
1
Insulation Class:
A
Overload Protection:
Automatic
Max Ambient Temp (°F):
104°F
Motor Orientation:
Horizontal
×
