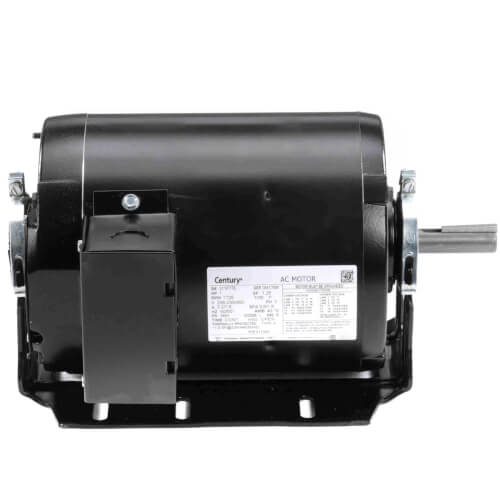

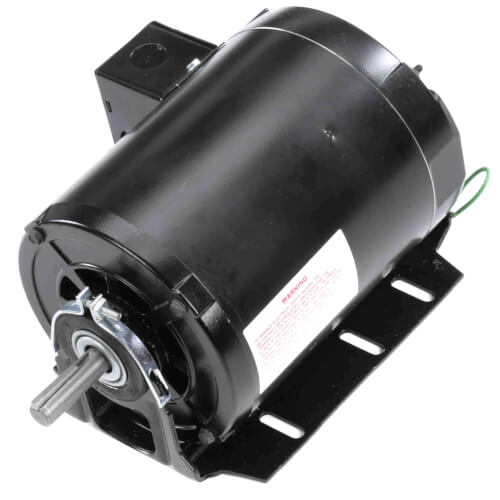

6-1/2" 3-Phase ODP Resilient Base Motor (208-230/460V, 1725 RPM, 1 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$504.20 each
Backorder
Get it Tue, Jul 7 - Tue, Aug 4
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208-230/460v
1725 RPM
Reversible
1 HP
Resilient Base
3.2 Amps
Description
–
6-1/2" 3-Phase ODP Resilient Base Motor (208-230/460V, 1725 RPM, 1 HP)
Made of rolled steel for long lasting durability. Resilient base provides isolation or resilient rings between motor mounting hubs and base to absorb vibration and noise. Drip proof (DP) enclosure include vents in end shield and/or frame to prevent drops of liquid from falling into motor within 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated (usually indoors). If installed outdoors, it is recommended that motor be protected with cover that does not restrict air flow to motor. Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length 1-7/8", Shaft Diameter 5/8". HP is 1. Frame is 56H. RPM is 1725.
Made of rolled steel for long lasting durability. Resilient base provides isolation or resilient rings between motor mounting hubs and base to absorb vibration and noise. Drip proof (DP) enclosure include vents in end shield and/or frame to prevent drops of liquid from falling into motor within 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated (usually indoors). If installed outdoors, it is recommended that motor be protected with cover that does not restrict air flow to motor. Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length 1-7/8", Shaft Diameter 5/8". HP is 1. Frame is 56H. RPM is 1725.
Specs
–
| Type: | Polyphase |
|---|---|
| Horse Power: | 1 |
| Voltage: | 208-230/460v |
| Bearings: | Ball |
| Duty: | Continuous |
| Mount: | Resilient Base |
| Poles: | 4 |
| RPM: | 1725 |
| Phase: | 3 |
| Enclosure Type: | Open |
| Rotation: | Reversible |
| Speeds: | 1 |
| Hertz: | 60 |
| Frame: | 56H |
| Insulation Class: | B |
| Amperage: | 3.2 |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 104°F |
