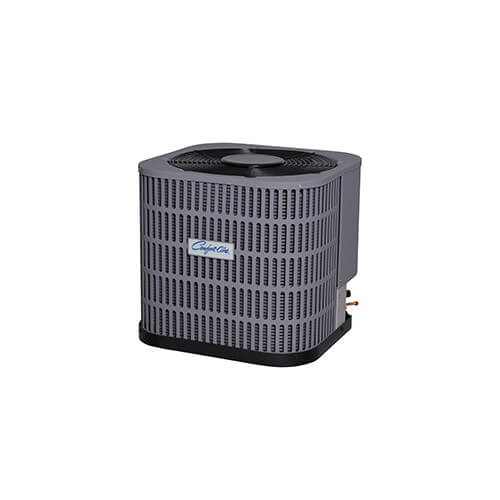

3 Ton, R-410A, 13 SEER RSG Air Condenser
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
RSG1336S1E has been discontinued
Discontinued July 26, 2017
This product was discontinued by the manufacturer.
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
3 Ton 36,000 BTU, R-410A, 13.4 SEER2 RSG Air Condenser
VIEW REPLACEMENT --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
R-410A
13 Rating
208/230V
3
1/3 HP
3/8"
Description
–
This R410A unit is no longer manufactured as per the AIM Act of 2020. While replacement parts are available for repairs, a new unit will require replacing the entire system to support the new A2L R32 refrigerant.
Please visit our Central Air Packages for system selection or reach out to Customer Care Team Contact Us for assistance.
The RSG13 Series combines good looks with efficient operation. Matched with Comfort-Aire air handlers or coils. Micro-channel technology and scroll compressors add efficiency and reliability.
Features:
- Micro-channel coils are all aluminum for exceptional corrosion resistance
- Louvered metal jacket has a durable polyester urethane finish
- Heavy duty scroll compressors are designed for long life and efficiency
- Composite base pan resists corrosion and absorbs sound
- Heavy duty grille assembly is designed for maximum air flow and quiet operation
- Compact cabinet adds to the attractive appearance of the home
- Exceptional warranty coverage - 12 years on compressor and parts (with registration) - click on "Warranty" above for details
Specs
–
| Refrigerant Type: | R-410A |
|---|---|
| Application: | HVAC |
| Unit Type: | Condenser R-410A |
| SEER: | 13 |
| Voltage: | 208/230V |
| Hertz: | 60 |
| Phase: | 1 |
| Ton: | 3 |
| Horse Power: | 1/3 |
| Liquid Line: | 3/8" |
| Suction Line: | 3/4" |
| Weight (lbs): | 146 lbs |
| Warranty: | 12 Year (Compressor, Parts) |
| Compressor: | Scroll |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
14 Replacement Parts
Capacitor Strap, 258780R
SKU: 258780R
NordyneCore, Charging Port, 662103R
SKU: 662103R
NordyneHigh Pressure Switch, 632473R
SKU: 632473R
Nordyne1 Pole, 25FLA Contactor (24V), 1014863R
SKU: 1014863R
NordyneDivider, Low Voltage, 258790
SKU: 258790
Nordyne3/8" Liquid Service Valve, 663862R
SKU: 663862R
Nordyne3/4" Low Side Service Valve, 663864R
SKU: 663864R
Nordyne4-5T Compressor Plug, 634660R
SKU: 634660R
NordyneCond. Orifice, 664067R
SKU: 664067R
NordyneRound Capacitor 45/7.5 M 370 V, 01-0271
SKU: 01-0271
NordyneRestrictor (.065 ), 664065R
SKU: 664065R
Nordyne
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
3 out of 2 reviews
50% would recommend this product
5 star
50%
4 star
0%
3 star
0%
2 star
0%
1 star
50%
Showing 1-2 of 2 reviews
IN RESPONSE TO THE PREVIOUS REVIEW
THE A COIL HAS NOTHING TO DO WITH THE PERFORMANCE OF THE CONDENSER.
SOUNDS LIKE AN INSTALLATION PROBLEM WITH THE SYSTEM NOT THE PRODUCT WHICH IS USUALLY THE PROBLEM. PRODUCT IS EXCELLENT AND ALWAYS PERFORMS WELL
JEFF
BUFFALO
7 years ago
Was this review helpful to you?
I would NEVER recommend century product.
The previous model was purchased and installed 6/18/14. IT has been a constant problem. Each year it was not cooling the home. We have had to spend money on refrigerant every year. After assessing several times for line leaks (none found), it was determined to be a faulty "A coil" which costs $1,200.00 to replace. Contacting the company is next to impossible. I live in Cleveland Ohio. AC is only required 1-2 months per year. I pity those who live in areas with lengthy hot humid seasons. We will replace this unit ASAP with another vendor.
Ms. P
Cleveland, Ohio
7 years ago
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Max Lineset length
Asked by Zeros 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffAccording to their product overview: ": Factory charged for 15' line set. Extra refrigerant needed for line sets over 15 feet"
Was this review helpful to you?
Q: what coolant does it use?
Asked by Luis 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffR-410A
Was this review helpful to you?
