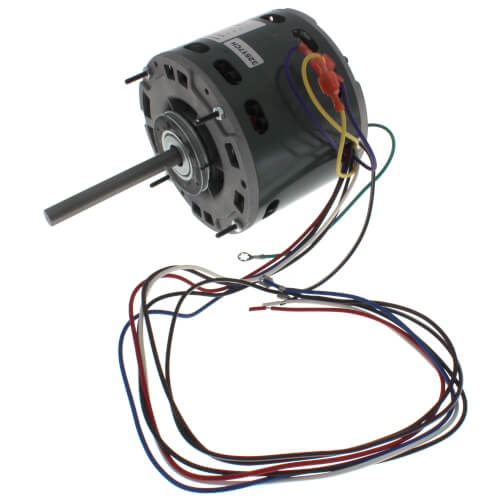

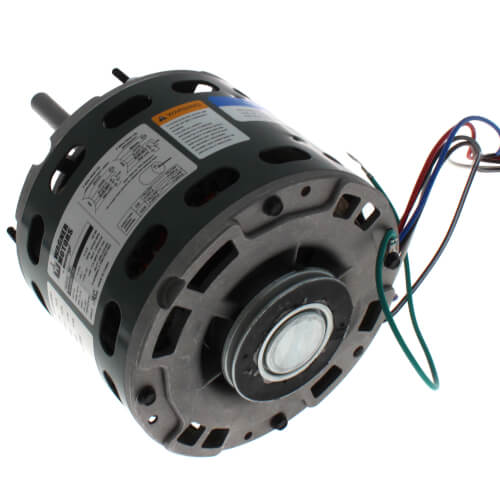

1/3 HP, 115 VAC Direct Drive Furnace Blower Motor
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$123.39 each
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1075 RPM
CW/CCW
1/3 HP
Shaft up, shaft down, or belly band
6.7 Amps
Description
–
- Installs with all Standard 48 Frame Mounting Brackets
- Standard Shaft Length, Diameter, and Flats
- Uses 370V Capacitors
- Standard 48 Frame Motor Casing Size
- 2.5" Diameter Hub Rings Included
- Low Power Consumption
- Automatic Thermal Overload Protector
- Continuous Duty, Air Over
- Electrically Reversible
- Class B Insulation
- Quiet Operation
- Color Packaging
Bright, colorful, easy to read packaging removes confusion about motors. The distributor can easily identify the stock of motors on the shelf. The application, voltage, and horsepower of a motor are visible at a glance. - Capacitor Size
The appropriate size 370 VAC run capacitor is noted on every motor carton. - Innovative Packaging
A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft, and mounting bolts during shipment. (See Image #2) - Larger Diagram
An extra large wiring diagram is supplied on the motor itself, on the motor carton, and also in the installation and safety instruction sheet. This large wiring diagram makes it very easy to read. - Cross Reference
For your convenience, Wagner provides a complete manufacturer cross-reference on the side of every motor carton. - Large Label
Informative product label contains the motor model number in large type. The UPC code is also printed on every motor label. - Extended Bolts
Extended mounting bolts provide for easier installation in cramped spaces. With the longer bolts, the installer is able to more easily start the threaded mounting nut. - Extended Wires
Wagner motor wires are thirty inches long. The added length makes it easier for the contractor to install the new motor. - Wire Stripping
Partial stripping leaves the insulation on the motor connection wire. This protects the stranded copper wire and prevents damage to individual strands. - Insulated Disconnects
Run capacitor connections are insulated for increased safety. Flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided.
Specs
–
| Motor: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/3 |
| Voltage: | 115V |
| Amperage: | 6.7 |
| RPM: | 1075 |
| Speeds: | 3 |
| Capacitor: | 370 VAC |
| Hertz: | 60 |
| Insulation Class: | B |
| Mount: | Shaft up, shaft down, or belly band |
| Bearings: | Sleeve (ball bearing for WG840595/96) |
| Finish: | Grey-green powdercoat |
| Frame Size: | 48 |
| Rotation: | CW/CCW |
| Temperature Rating: | 60 deg C / 140 deg F |
| Lead Wire Length: | 30 inches |
| Lead Wire Gauge: | #18 AWG |
| Motor Diameter: | 5.59" |
| Motor Length: | 9.39" |
| Shaft Diameter: | 1/2" |
| Shaft Length: | 4-1/2" |
| Shaft Flats: | One flat |
| Weight (lbs): | 12.1 lbs |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Product Reviews
5 out of 8 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-8 of 8 reviews
I would buy this product again
Perfect match for existing furnace motor - physical/electrical specs spot on !
Wil
Seattle,Wa
8 years ago
Verified Buyer
Was this review helpful to you?
Good replacement
Fit perfectly. Quality replacement at a reasonable price.
Tony
Cincinnati Ohio
10 years ago
Verified Buyer
Was this review helpful to you?
Yes
Fan blower
Rudy
tampa FL
10 years ago
Verified Buyer
Was this review helpful to you?
Great
Great
Ike
Nj
10 years ago
Verified Buyer
Was this review helpful to you?
works great and received as promised
My A/C went out Memorial Day weekend. After a tech quoted me $750 to replace the blower motor and then proceeded to say that his boss probably would not let him do that. Instead he wanted us to buy a new system. Instead, my dad found this blower motor and installed and got my a/c working again. It has been working great since.
Katyanja
Lewisville, TX
12 years ago
Verified Buyer
Was this review helpful to you?
Great value
The replacement furnace blower motor was of better quality & almost 1/2 the cost of my local distributor. I'll be back!
Captain Greg
Las Vegas, NV
12 years ago
Verified Buyer
Was this review helpful to you?
I would buy this motor again
The motor was very easy to wire and mounted perfectly. Works as well as the original furnace blower motor.
Matt
Pittsburgh, Pa
15 years ago
Verified Buyer
Was this review helpful to you?
very good price
easy installation and wiring diagram
Phil
Laawrenceville Ga
16 years ago
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: what size capacitor does this motor take
Asked by 04 dip 12 years ago
Add your answer
-
You can use a capacitor from 5uf up to 20uf @ 370vac . If you have a 10uf @ 400vac that will work fine. (the harder the start conditions the higher you may need the uf to be up to 20uf, like a large diameter fan blade )
Was this review helpful to you?
-
You can use a 7.5uf and it will be ok, one should look up the specs w/the part no though to find out what size the manufacturer recommends. It is usually a 5 or 7.5uf but I would use the bigger of the two to be sure to have enough capacitance for the start windings.
Was this review helpful to you?
Q: Is this a 3 speed motor ?
Asked by tc 14 years ago
Add your answer
-
yes
Was this review helpful to you?
