Product Highlights
–
1684 RPM
6.2 Amps
1/2 HP
120v, 230V
Description
–

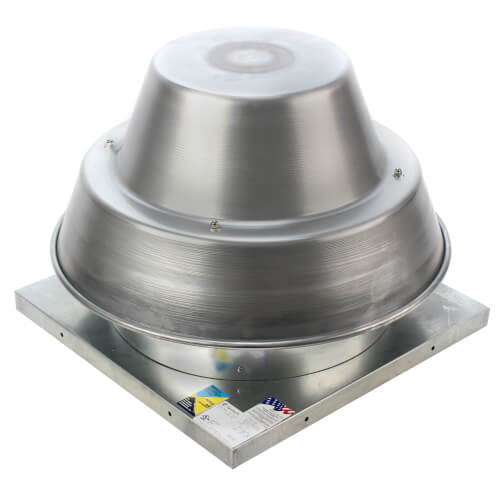

Direct-drive downblast ventilators are designed for use where steady
exhaust ventilation is needed under low to moderate static pressure
conditions.
Agency Listing
Features and Specifications
Accessories (available separately)
Agency Listing
- All ventilators are UL Standard 705 listed
- Ventilators are CSA listed according to Standard C22.2 No. 113-M1984 (Fans & Ventilators)
Features and Specifications
- Downblast discharge design exhausts foul air from industrial and commercial buildings
- Ventilators can be mounted on the roof or wall
- Durable spun aluminum construction with steel support braces
- Backward inclined aluminum fan wheel
- Externally cooled motor compartment
- Motor located out of discharge airstream
- Motors are 115V or 115/230V, 60 Hz, ball bearing motors with Class B insulation
- PSC motors included in standard design (shaded pole motor style used for 8" models)
- One-piece removable exhaust hood
- Inlet temperatures up to 170°F
- Built-in bird screen to protect discharge and ensure safe, obstruction-free operation
- Motor and wheel are easily detachable without removing ventilator from curb
- Junction box mounted in motor compartment
- Windband rolled bead for added strength and easy maneuverability
- Welded curb cap corners eliminate water entry into ducts or building
- All units are speed controllable
Accessories (available separately)
- For more information, see Power Roof Ventilator Accessories
- Speed controllers
- Backdraft dampers
- NEMA 1, NEMA 3R and NEMA 4 disconnect switches
- Fixed mounting curbs
Specs
–
| Product Type: | Fan |
|---|---|
| Fan Diameter: | 13" |
| RPM: | 1684 |
| Amperage: | 6.2 |
| Horse Power: | 1/2 |
| Phase: | 1 |
| Voltage: | 120v 230V |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
Motor for 5DDD13DB
SKU: 481505
Fantech
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Q&A
1 Question1 Question
Q: Dimensions are not listed on site. Needing to know curb size.
Asked by Mike 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffCurb size is 20-1/2"
