$1,097.76 each
In Stock
Get 2 Thu, Jun 18 - Mon, Jun 22
MANUALS (1)
Lift Gate
–
This product weighs 149 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1143 RPM
6.2 Amps
1/2 HP
120v, 230V

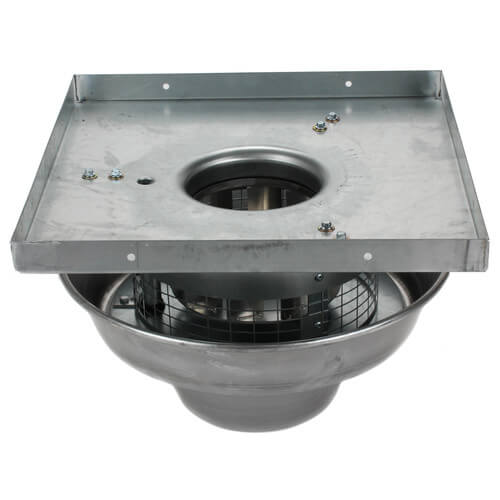

Description
–
Direct-drive downblast ventilators are designed for use where steady
exhaust ventilation is needed under low to moderate static pressure
conditions.
Agency Listing
Features and Specifications
Accessories (available separately)
Agency Listing
- All ventilators are UL Standard 705 listed
- Ventilators are CSA listed according to Standard C22.2 No. 113-M1984 (Fans & Ventilators)
Features and Specifications
- Downblast discharge design exhausts foul air from industrial and commercial buildings
- Ventilators can be mounted on the roof or wall
- Durable spun aluminum construction with steel support braces
- Backward inclined aluminum fan wheel
- Externally cooled motor compartment
- Motor located out of discharge airstream
- Motors are 115V or 115/230V, 60 Hz, ball bearing motors with Class B insulation
- PSC motors included in standard design (shaded pole motor style used for 8" models)
- One-piece removable exhaust hood
- Inlet temperatures up to 170°F
- Built-in bird screen to protect discharge and ensure safe, obstruction-free operation
- Motor and wheel are easily detachable without removing ventilator from curb
- Junction box mounted in motor compartment
- Windband rolled bead for added strength and easy maneuverability
- Welded curb cap corners eliminate water entry into ducts or building
- All units are speed controllable
Accessories (available separately)
- For more information, see Power Roof Ventilator Accessories
- Speed controllers
- Backdraft dampers
- NEMA 1, NEMA 3R and NEMA 4 disconnect switches
- Fixed mounting curbs
Specs
–
| Product Type: | Fan |
|---|---|
| Fan Diameter: | 16" |
| RPM: | 1143 |
| Amperage: | 6.2 |
| Horse Power: | 1/2 |
| Phase: | 1 |
| Voltage: | 120v 230V |
