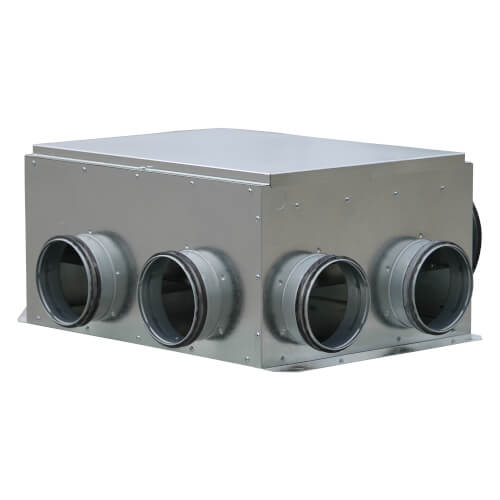

CVS Series Central Ventilation Centrifugal Multi-Port Exhaust Fan, 4 Point (355 CFM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
The CVS Series multi-port ventilator works the best for residential spas where multiple port exhaust needs to be addressed. This low profile fan is perfect where space is limited. This fan is a popular choice for use in areas between floors in apartment buildings, high-rise office complexes or residential homes.
With CVS models, several exhaust points connect into one centrally located fan without the use of adapters or transitions. The motorized impeller is both statically and dynamically balanced as one integral unit, for vibration free, quiet performance. With multiple exhaust points going into one fan, wall or roof penetrations are kept to a minimum.
CVS fans are simple to install. Simply select the fan mounting location, taking into account the type of application, service accessibility, and distance from exhaust point (to minimize fan operating noise). Secure the unit using either threaded rod or wires to suspend the unit. Finally, connect your flexible ductwork to inlet and outlet of the fan.
Features:
- Designed for home spas or large bathrooms
- Centrally located exhaust fan with multiple intake ports
- Galvanized steel housing
- External rotor motor with backward-curved centrifugal fan wheel constructed of high-density polyamide, easily removable from housing for service without disturbing the installation
- Internal scroll for maximum air performance
- Well-designed inlet venturi for optimum efficiency
- Permanently lubricated sealed ball bearings
- 100% speed controllable for highly efficient and economical airflow
- Suitable for airstream temperatures up to 140° F
- HVI and CSAus Certified
- Five-year warranty
Specs
| Duct Size: | 4" |
|---|---|
| Exhaust Points: | 4 Points |
| Voltage: | 115V |
| Rated Watts: | 123 |
| Wattage Range: | 110-123 |
| Max. Amps: | 1.07 |
| RPM: | 2500 |
| Air Flow Capacity (CFM): | 355 |
| Housing Material: | Galvanized Steel |
| Warranty: | 5 Year |
| 0" Ps: | 355 CFM |
| 0.2" Ps: | 320 CFM |
| 0.4" Ps: | 283 CFM |
| 0.6" Ps: | 249 CFM |
| 0.8" Ps: | 215 CFM |
| 1.0" Ps: | 180 CFM |
| 1.5" Ps: | 80 CFM |
