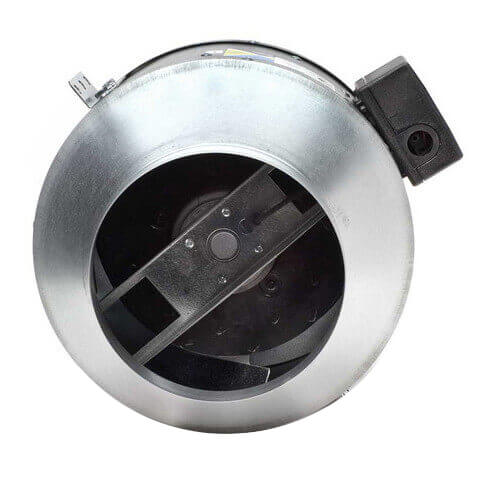

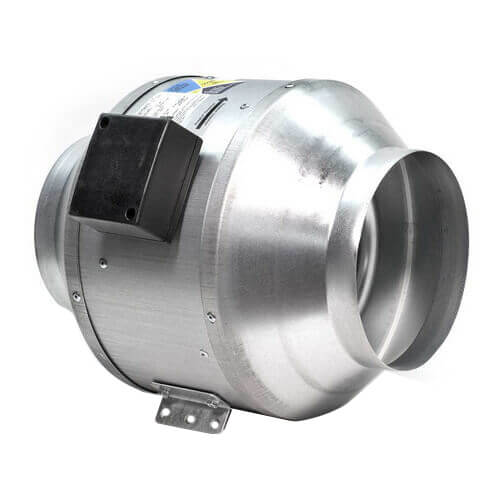

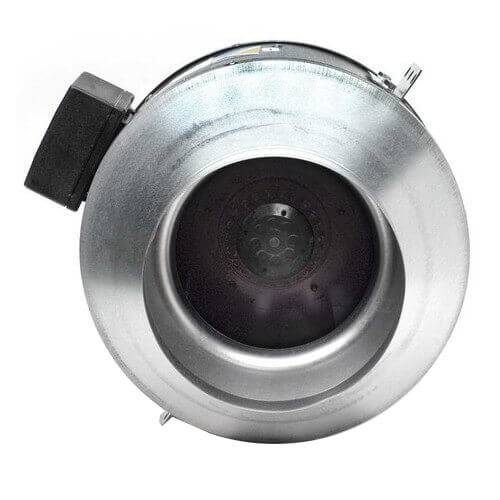

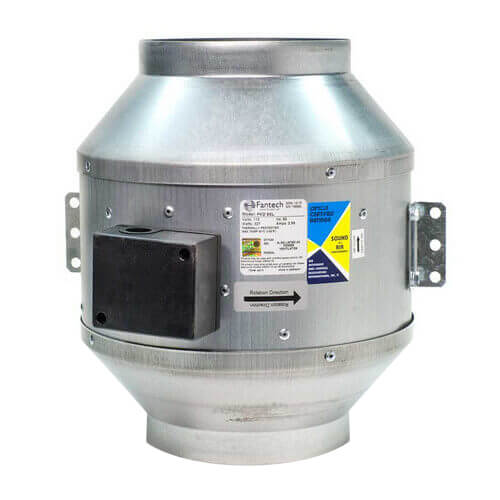

FKD Series Round Inline Mixed Flow Centrifugal Fan, 10" Duct, 230V (910 CFM)
Hover image to zoom

FKD Series Round Inline Mixed Flow Centrifugal Fan, 10" Duct, 230V (910 CFM)

Brand:
Fantech
SKU:
FKD10-230
Rating:
(0)
Q&A:
(0)
FKD Series Round Inline Mixed Flow Centrifugal Fan, 10" Duct, 230V (910 CFM)
Hover image to zoom
$771.39 each
Backorder
Backorder
Get it Tue, Mar 26 - Tue, Apr 23
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Max. Amps icon
3.01
Air Flow Capacity (CFM) icon
910 CFM
Warranty icon
3 Year Warranty
Duct Size icon
10"
Voltage icon
230v
RPM icon
2700 RPM

Description

Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust.

Features:
  • Galvanized steel housing
  • External rotor motor with built-in thermal overload protection and automatic reset
  • Mixed flow impeller
  • Permanently lubricated sealed ball bearings
  • Excellent heat dissipation to ensure long motor life
  • Suitable for airstream temperatures up to 140°F
  • 100% speed controllable
  • Terminal box with prewired electrical strip
  • Three-year warranty
  • 230 Volts

Specs

Duct Size:

10"

Voltage:

230v

RPM:

2700

Air Flow Capacity (CFM):

910

Rated Watts:

329

Max. Amps:

3.01

Housing Material:

Galvanized Steel

Warranty:

3 Year
