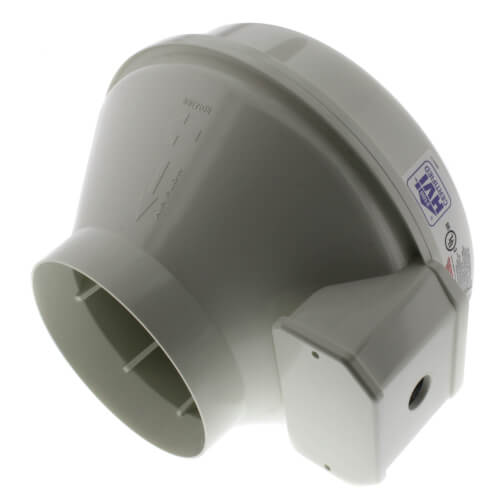

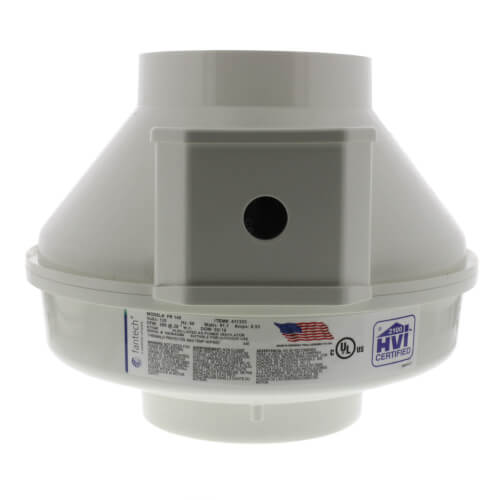

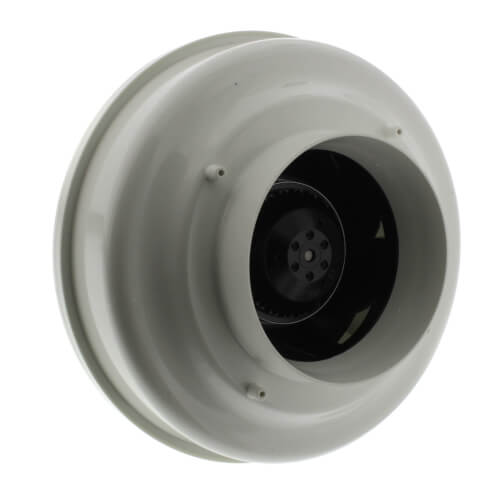

FR Series Round Inline Exhaust Fan, 6" Duct (226 CFM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$206.84 each
In Stock
Get 28 Wed, Dec 6
More Available
Order by today, receive Wednesday
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Replacement Parts
View AllFree Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
0.53
226 CFM
5 Year Warranty
6"
115V
2850 RPM
Description
–
CAUTION: For General Ventilation Use Only.
Do Not Use To Exhaust Radon, Hazardous Or
Explosive Materials And Vapors
Fantech's versatile FR Series Inline Fans provide the ideal answer for a variety of air movement problems in residential and commercial applications. The fans feature a plastic housing constructed of UL-recognized, UV protected thermoplastic resin. This tough protected shell allows the fan to be mounted in outdoor and wet locations. FR fans feature external rotor motors that have proven dependable year after year. Fan is fully caulked to prevent moisture from entering the housing.
Features:
Fantech's versatile FR Series Inline Fans provide the ideal answer for a variety of air movement problems in residential and commercial applications. The fans feature a plastic housing constructed of UL-recognized, UV protected thermoplastic resin. This tough protected shell allows the fan to be mounted in outdoor and wet locations. FR fans feature external rotor motors that have proven dependable year after year. Fan is fully caulked to prevent moisture from entering the housing.
Features:
- Prewired and supplied w/ a mounting bracket for easy installation
- UL Listed; CSA Certified
- Approved for residential and commercial applications and for wet locations
- Suitable for airstream temperatures up to 140°F
- Easy connection using external wiring box with waterproof gasket
- 100% speed controllable
- 5-Year factory warranty
Specs
–
| Duct Size: | 6" |
|---|---|
| Voltage: | 115V |
| RPM: | 2850 |
| Air Flow Capacity (CFM): | 226 |
| Rated Watts: | 61 |
| Wattage Range: | 47-62 |
| Max. Amps: | 0.53 |
| Housing Material: | Molded Housing |
| Warranty: | 5 Year |
| Energy Star Rated: | Yes |
| 0" Ps: | 226 CFM |
| 0.2" Ps: | 203 CFM |
| 0.4" Ps: | 174 CFM |
| 0.6" Ps: | 138 CFM |
| 0.8" Ps: | 104 CFM |
| 1.0" Ps: | 55 CFM |
