Product Highlights
–
208V, 230V
1550 RPM
CCWSE
1/12 HP
Extended Studs
0.5 Amps
Description
–

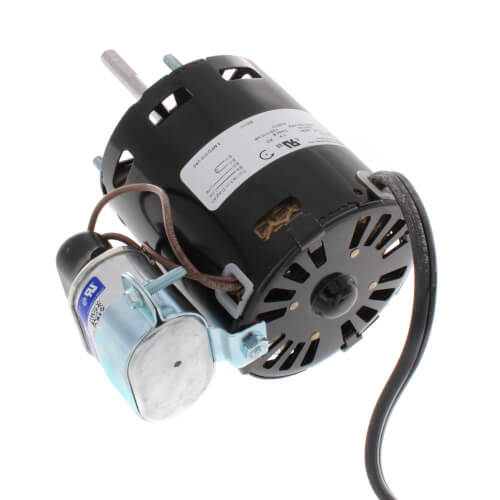

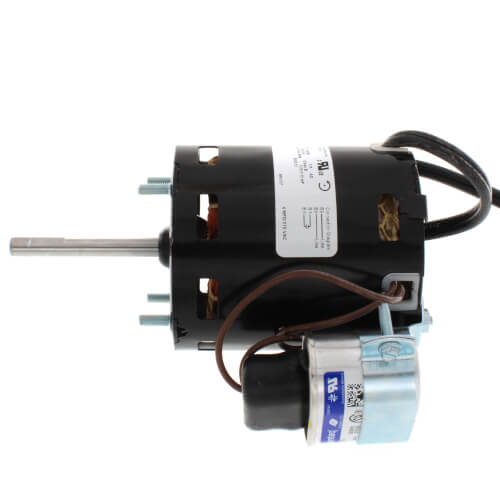

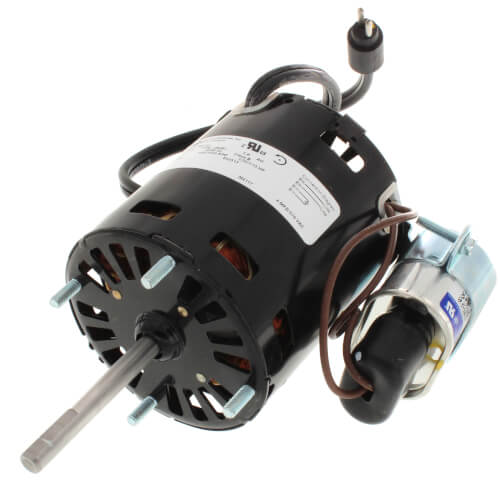

1-Speed 1550 RPM 1/12 HP CCW Motor (208/230V)
Replaces: BOHN - 7190-0442
Replaces: BOHN - 7190-0442
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/12 |
| Voltage: | 208V 230V |
| RPM: | 1550 |
| Amperage: | 0.5 |
| Speeds: | 1 |
| Rotation: | CCWSE |
| Enclosure Type: | Open Air Over |
| Mount: | Extended Studs |
| Width: | 3-3/4" |
| OEM: | Bohn |
| Phase: | 1 |
| Bearings: | Sleeve |
| Frame Size: | 3.3 |
| Max Ambient Temp (°F): | 104°F |
| Duty: | Air Over |
| Frequency: | 60 Hz |
| Insulation Class: | B |
| Poles: | 4 |
| Overload Protection: | Thermally |
| Approvals: | UL |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Type
Horse Power
Voltage
RPM
Amperage
CURRENT ITEM
Permanent Split Capacitor
1/12
208V
230V
230V
1550
0.5
Product Reviews
4.75 out of 4 reviews
100% would recommend this product
5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-4 of 4 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Good motor
Its nice to have somewhere to order parts and get exactly what you want without having to go an hour and a half to get
PHaA
Tn
8 months ago
Verified Buyer
Was this review helpful to you?
OEM
Great prices , fast delivery service ups was there next day
Thank you Supplyhouse for being the best HVAC and plumbing supply provider
Techpablo
silver spring , MD
9 months ago
Verified Buyer
Was this review helpful to you?
Worked great

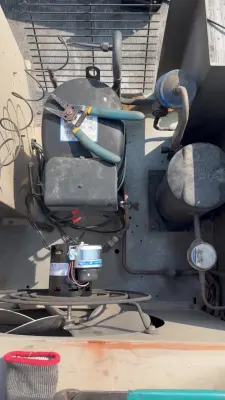

Replaced the fan motor in a freezer condenser, easy install.
