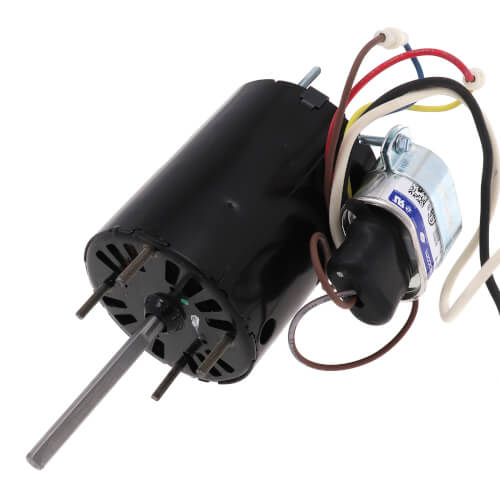

Main product image of 1-Speed 3000 RPM ITT Reznor Duct Furnace And Rooftop Ventilator Replacement Motor (1/10 HP, 115V)
Magnifying glass
Hover image to zoom

1-Speed 3000 RPM ITT Reznor Duct Furnace And Rooftop Ventilator Replacement Motor (1/10 HP, 115V)

Brand:
Fasco
SKU:
D405
Rating:
(0)
Q&A:
(0)
1-Speed 3000 RPM ITT Reznor Duct Furnace And Rooftop Ventilator Replacement Motor (1/10 HP, 115V)
Magnifying glass
Hover image to zoom
$335.59 each
In Stock
In Stock
Get 20 Mon, Nov 23
Order by 6PM, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
115V
Product Highlight: RPM
3000 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1/10 HP
Product Highlight: Mount
Thru Bolt
Product Highlight: Amperage
1.4 Amps

Description

–
Product Features
  • S58-792 replaces CCW77162-0311, CCW175-43846, CW7162-0224 and CW36860
  • S59-037 replaces CW175-40069, 7162-0293, CCW505-43424, 7162-0348, CCW175-40070, 7162-0294
  • PSC, open ventilated, air over
  • Capacitor included

Specifications
  • Bearing Type: Ball
  • Diameter: 3-3/8"
  • Efficiency: 65.0%
  • Enclosure: OAO
  • F/L Amps: 1.40
  • HP: 1/10
  • Hz: 60
  • Mounting: Thru-bolt
  • Phase: Single
  • RPM: 3000
  • Rot.: Rev.
  • Service Factor: 1.00
  • Shaft Diam.: 5/16"
  • Shaft Length: 3-1/4"
  • Speeds: 1
  • Thermal Protection: Yes
  • Type: PSC
  • Volts: 115
  • Wt. Lbs.: 5.3

Specs

–
Type:

Permanent Split Capacitor

Horse Power:

1/10

RPM:

3000

Voltage:

115V

Amperage:

1.4

Phase:

1

Rotation:

Reversible

Bearings:

Sleeve

Speeds:

1

Enclosure Type:

Open Air Over

Mount:

Thru Bolt

Approvals:

CSA

Insulation Class:

B

Overload Protection:

Thermally
