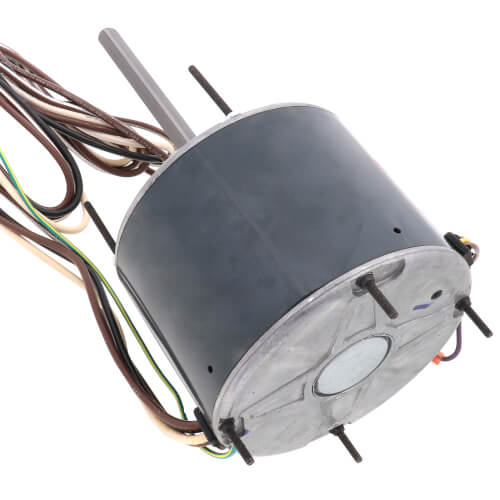

Main product image of D934 1 Speed 825 RPM Condenser Fan Motor (208-230V)
Magnifying glass
Hover image to zoom

D934 1 Speed 825 RPM Condenser Fan Motor (208-230V)

Brand:
Fasco
SKU:
D934
Rating:
(0)
Q&A:
(0)
D934 1 Speed 825 RPM Condenser Fan Motor (208-230V)
Magnifying glass
Hover image to zoom
$155.86 each
In Stock
In Stock
Get 12 Tue, Jun 16
Order by today, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
230V, 208V
Product Highlight: RPM
825 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1/4 HP
Product Highlight: Mount
Extended Studs
Product Highlight: Amperage
1.9 Amps

Description

–
Used for vertical or horizontal shaft applications where the motor is located in the airstream

Features:
  • Automatic Overload
  • Single Phase
  • Permanent Split Capacitor
  • Reversible Rotation
  • Phase: Single Phase
  • Thermal Protection: Automatic
  • Speeds: 1
  • Rotation: Reversible
  • Bearings: Sleeve
  • Enclosure Type: Totally Enclosed (TE)
  • Frame Size: 5.6" Frame
  • Motor Diameter (In.): 5.6
  • Motor Length (In.): 4 1/3
  • Shaft (In.): 1/2 X 6
  • Bolt Circle (In.): 5-6/32 (5.2)
  • Mount Type - Stud/Tapped Holes
  • Agency Approvals: UL, CSA

Specs

–
Type:

Permanent Split Capacitor

Horse Power:

1/4

Voltage:

230V

208V

RPM:

825

Speeds:

1

Amperage:

1.9

Mount:

Extended Studs

Rotation:

Reversible

Enclosure Type:

Totally Enclosed Air Over (TEAO)

Width:

4-1/3"

Hertz:

60

Phase:

1

Max Ambient Temp (°F):

104°F

Bearings:

Sleeve

Frame Size:

48

Duty:

Continuous Air Over

Frequency:

140 Hz

Insulation Class:

B

Poles:

8

Overload Protection:

Thermally

Approvals:

UL
